Blower Motor: Testing and Inspection
BLOWER MOTORINSPECTION 1.

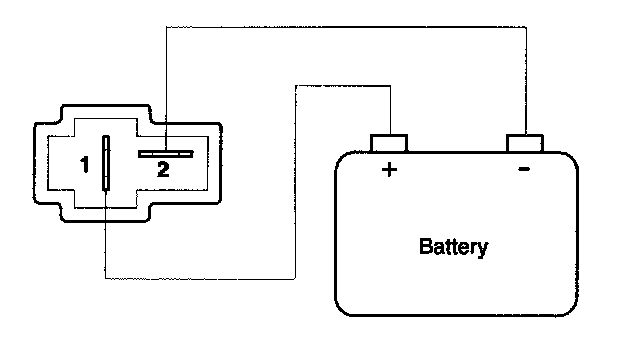

Connect the battery voltage and check the
blower motor rotation.
2.
If the
blower motor voltage is not operated well, substitute with a known-good blower motor and check for proper operation.
3.
If the problem is corrected, replace the
blower motor.
