Cabin Temperature Sensor / Switch: Service and Repair

IN CAR SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.

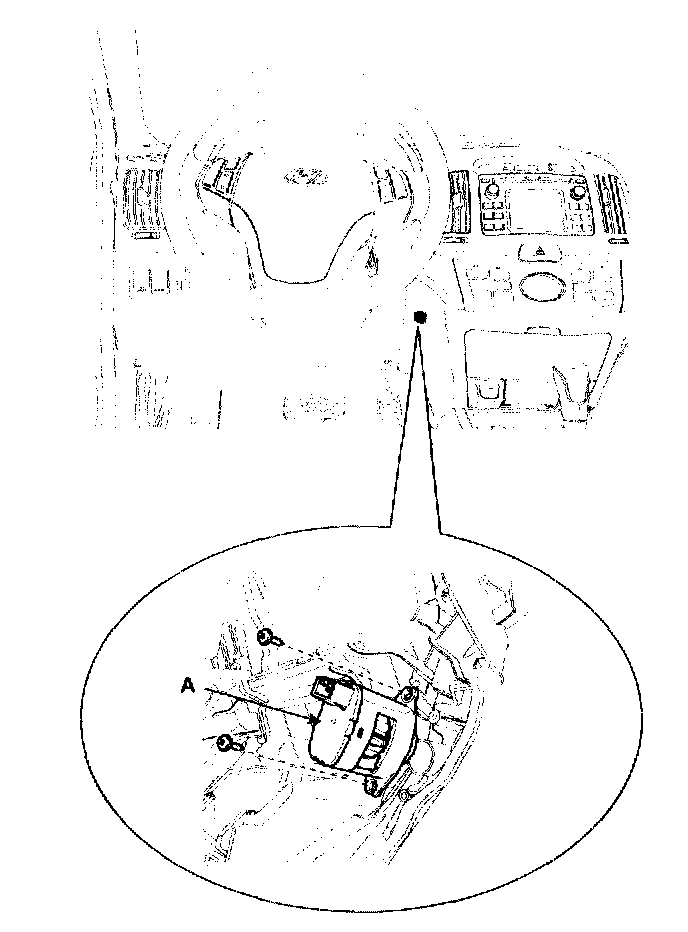

3. Disconnect the connector in-car sensor. Loosen the mounting 2 screws and then remove the in-car sensor (B).
4. Installation is the reverse order of removal.
