Cabin Temperature Sensor / Switch: Testing and Inspection

IN CAR SENSOR

INSPECTION
1. Ignition "ON"

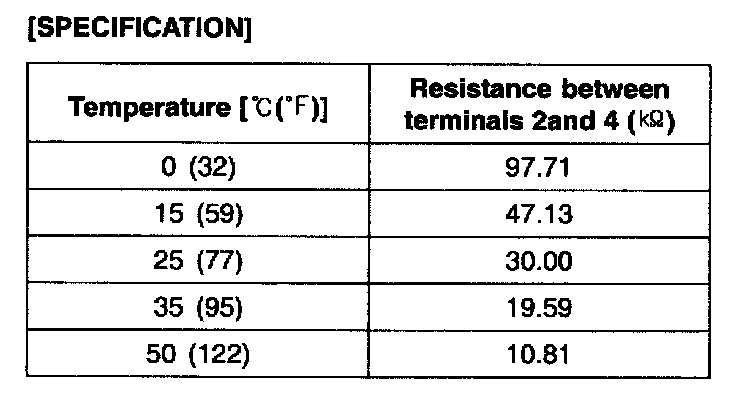

Specification:

2. Blow air into the in car sensor at various temperatures.
Measure the resistance between terminals 2 and 4.

NOTE: The in car sensor is negative type thermistor where the resistance will increase with lower temperature, and become lower with higher temperature.
