Evaporator Temperature Sensor / Switch: Service and Repair
EVAPORATOR TEMPERATURE SENSORREPLACEMENT 1.

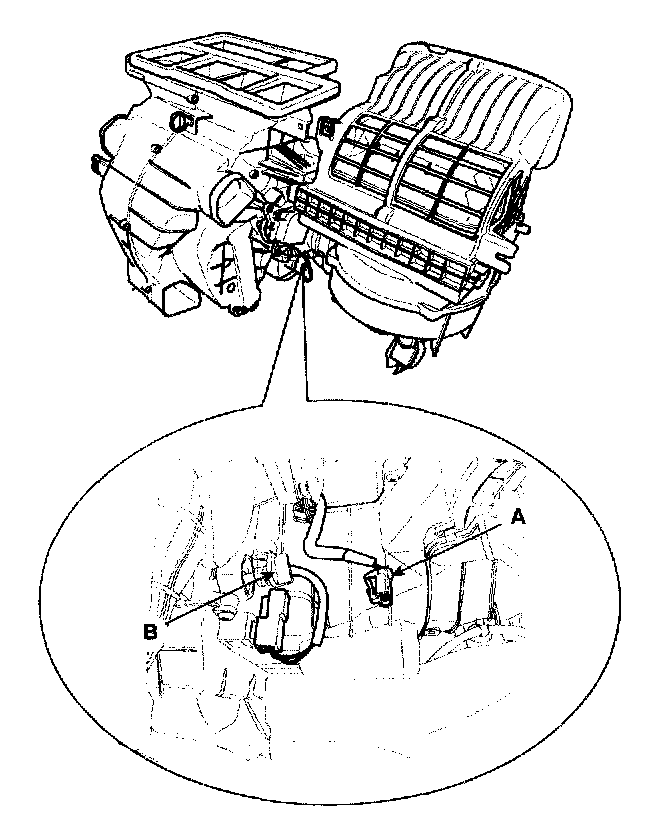

Disconnect the evaporator sensor connector (A).
2.
Remove the evaporator temperature sensor (B), by pulling it after
rotating 90° in a counter clock wise direction.
3.
Installation is the reverse order of removal.
