Solar Sensor: Service and Repair

PHOTO SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

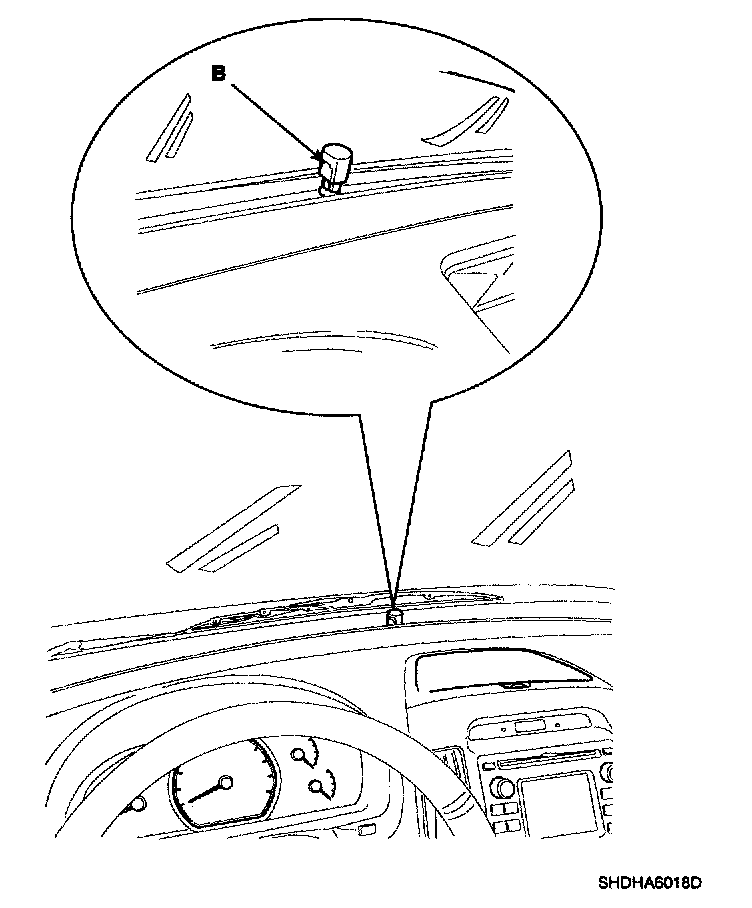

2. With the (-) driver, remove the photo sensor (B) from the center of defrost nozzle.
3. Install in the reverse order of removal.
