Fog/Driving Lamp: Service and Repair
FRONT FOG LAMPSREMOVAL 1.
Disconnect the negative (-) battery terminal.
2.
Remove the front side cover screw.
3.

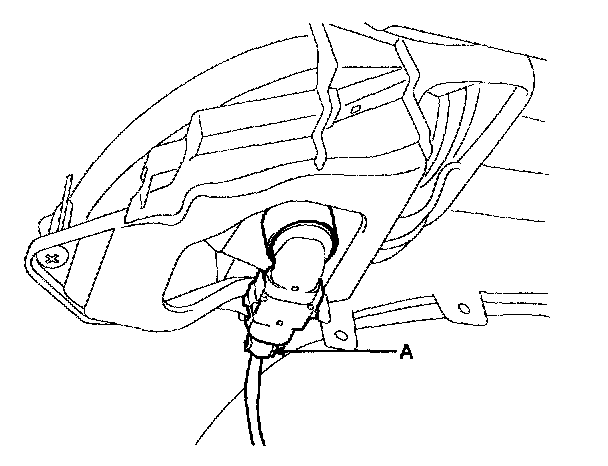

Remove the front fog lamp assembly connector (A).
4.

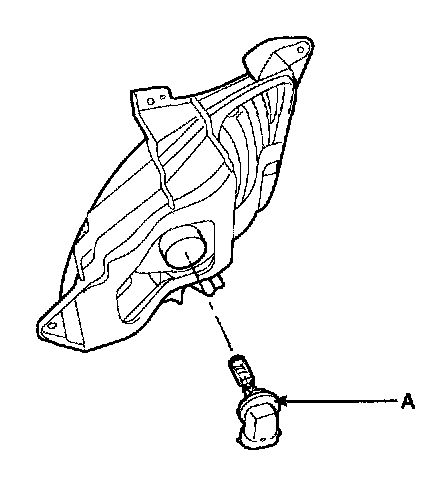

Remove the front fog lamp bulb (A).
INSTALLATION 1.
Install the front fog lamp bulb.
2.
Connect the front fog lamp connector.
3.
Install the front side cover.
