Body Control Module: Service and Repair

ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM)

BODY CONTROL MODULE

REMOVAL
1. Disconnect the negative (-) battery terminal
2. Remove the center facia lower panel with ashtray.
Avoid damaging retaining clip.

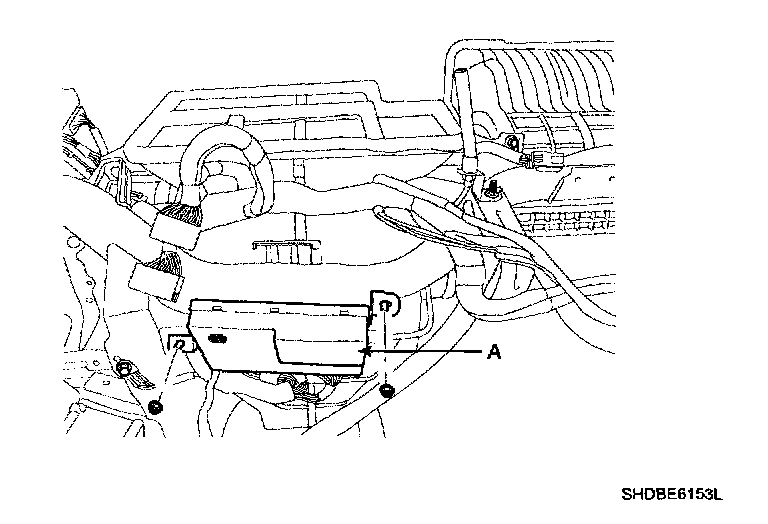

3. Remove the body control module (A) after loosening 2 nuts and disconnecting connector.

INSTALLATION
1. Install the body control module.
2. Install the center facia lower panel.
