Drivetrain - Front Axle Service Procedure Addition
Group: CHASSISNumber: 07-50-006
Date: APRIL 2007
Model:
2007 ELANTRA
Subject:
SHOP MANUAL CORRECTION - ADDITION OF WORKING PROCEDURE
DESCRIPTION:
The 2007 MY Elantra Shop Manual does not contain two steps in the servicing procedure in the DRIVESHAFT AND AXLE SECTION, Publication Number: A2HS-EU65A2, Printed on May 29, 2006 on pages DS-7 and DS-10. This bulletin provides all steps including the added steps highlighted with frames shown below.

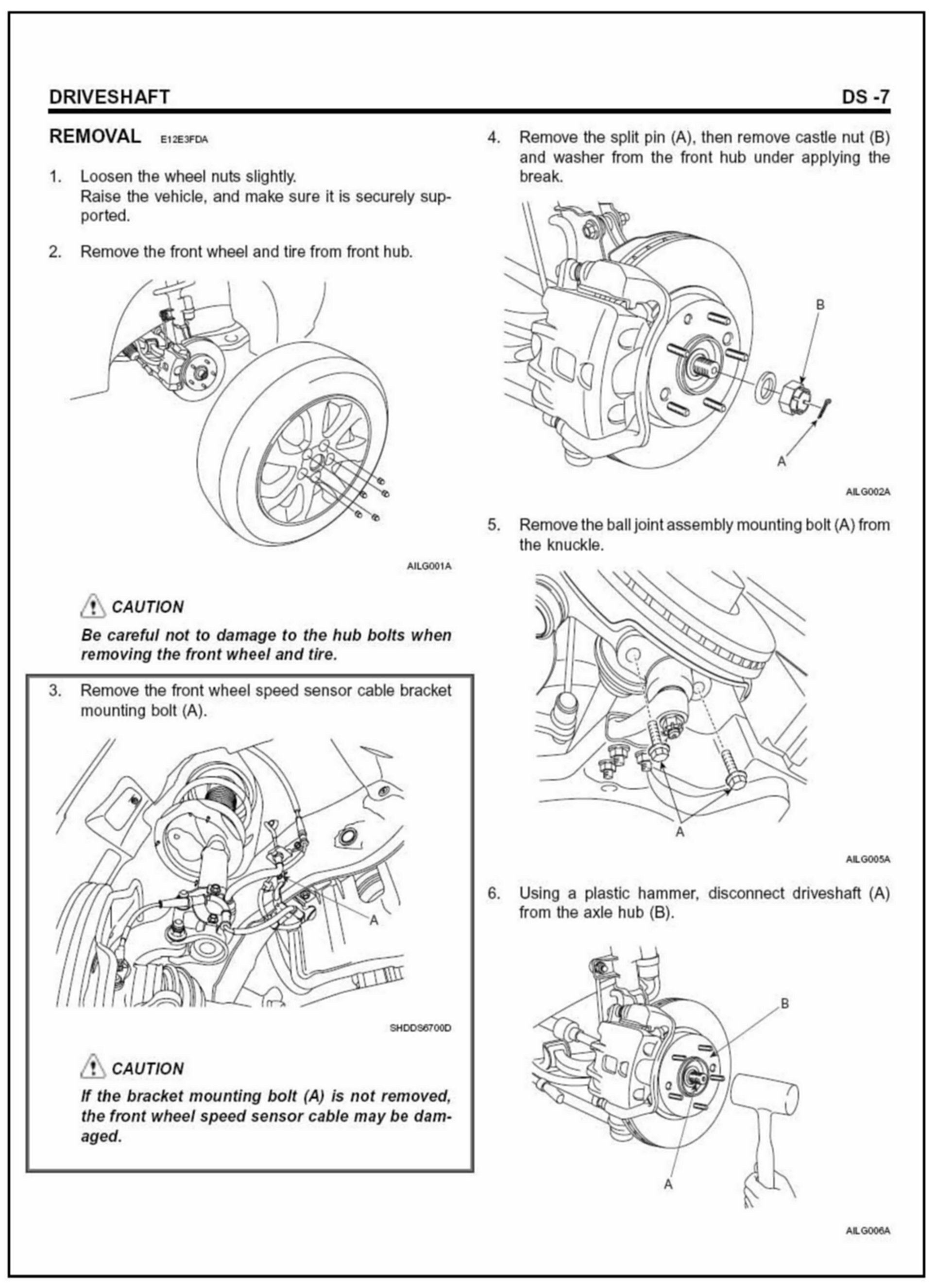

DS-7

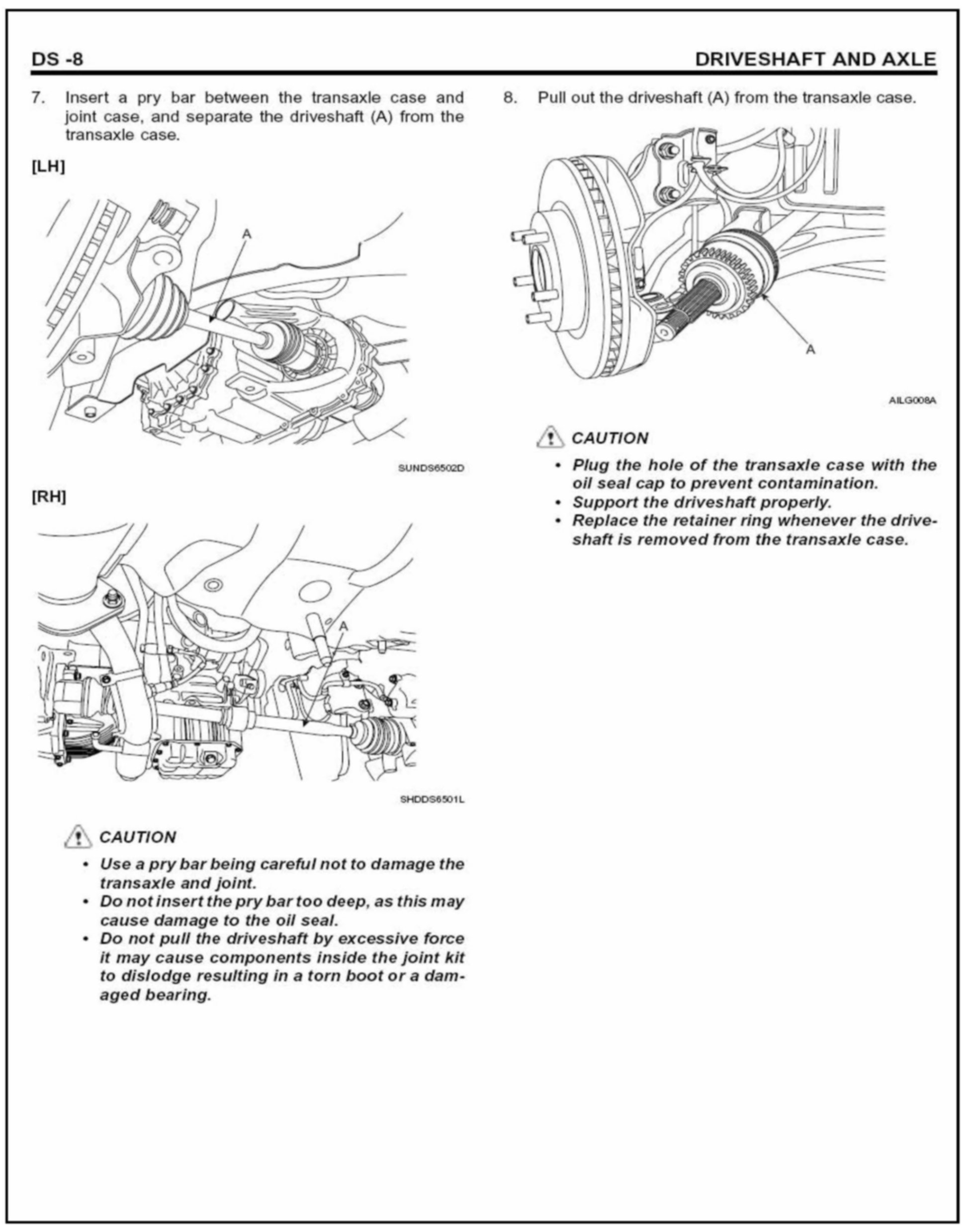

DS-8

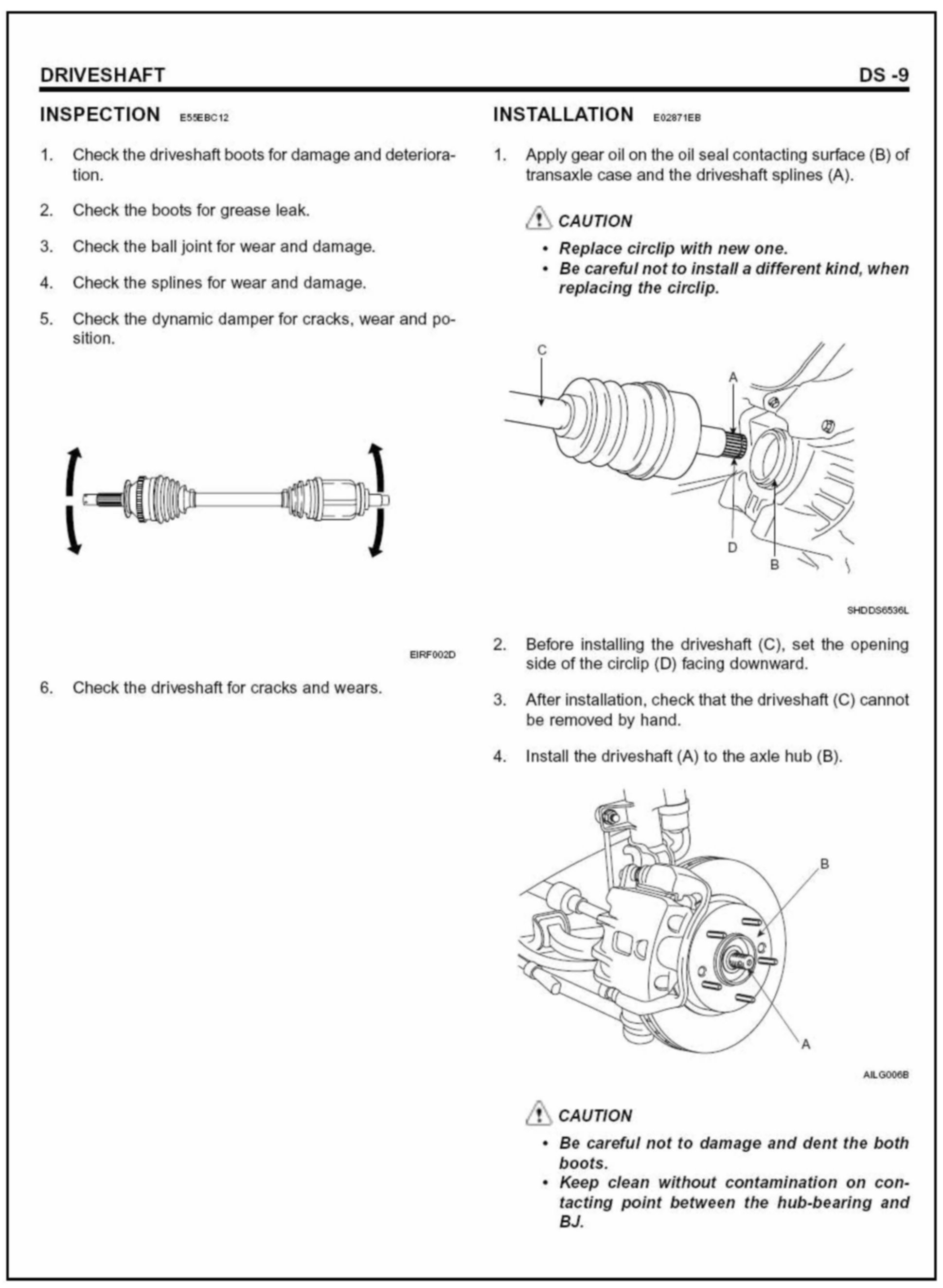

DS-9

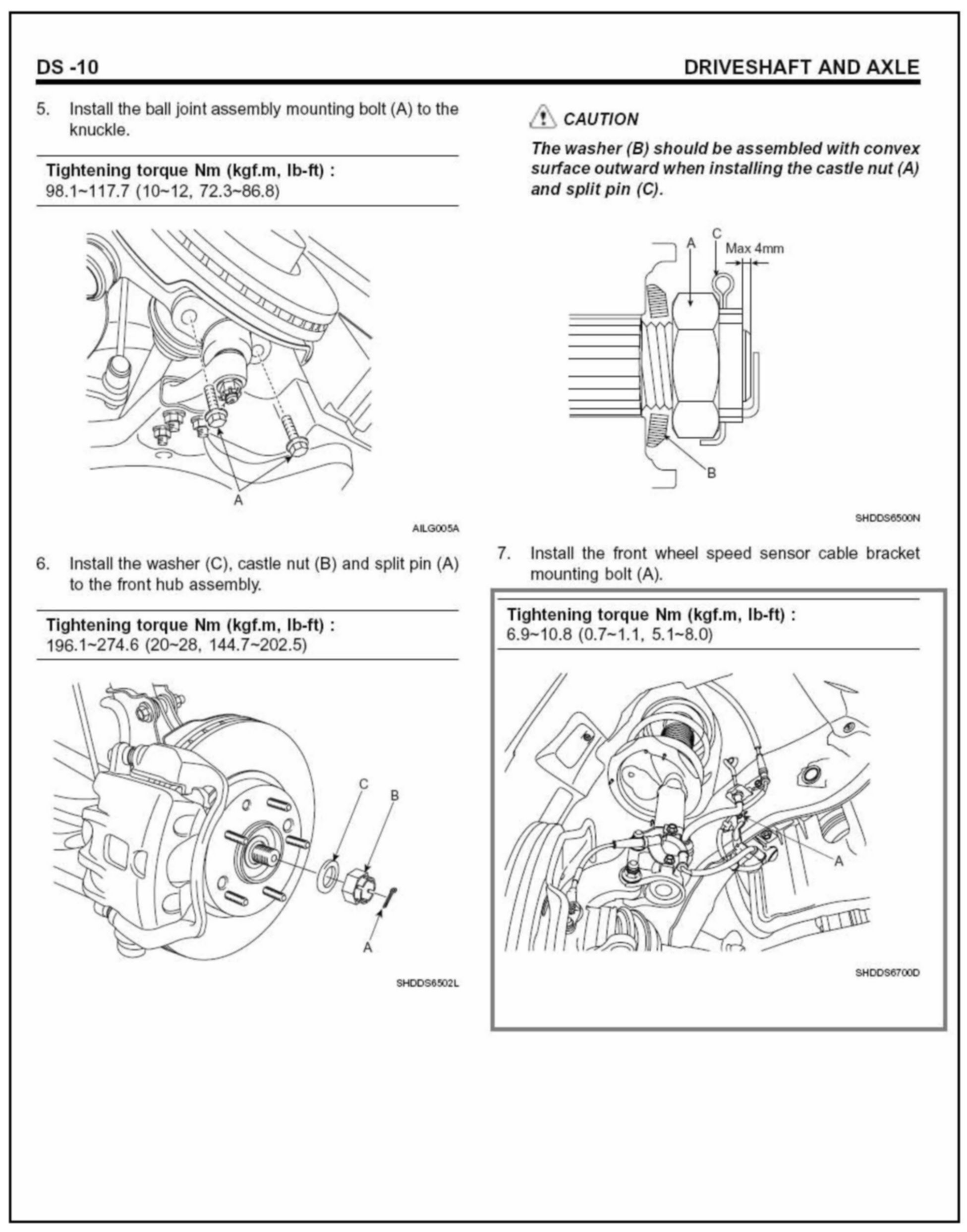

DS-10

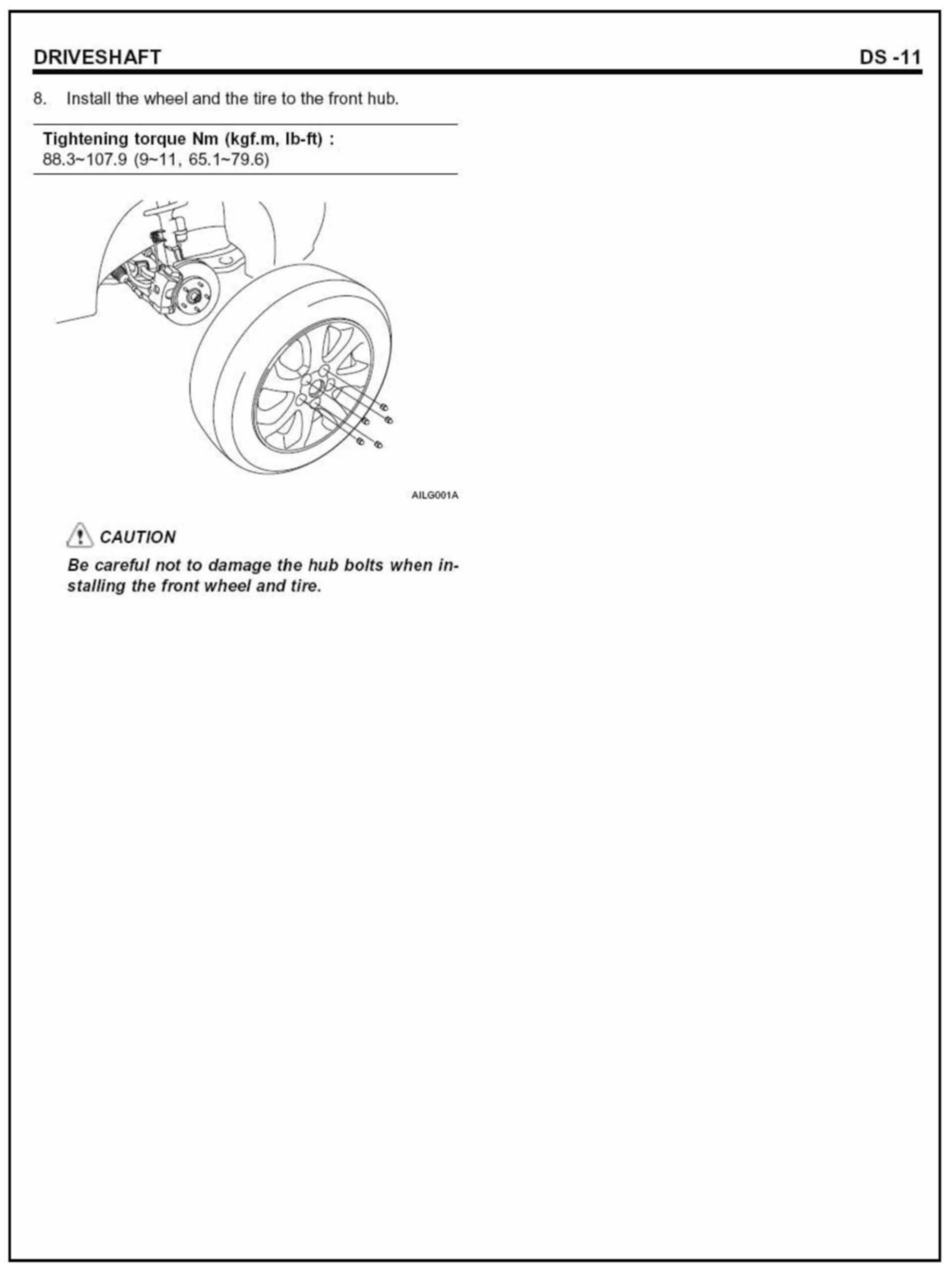

DS-11
