Output Speed Sensor

OUTPUT SPEED SENSOR

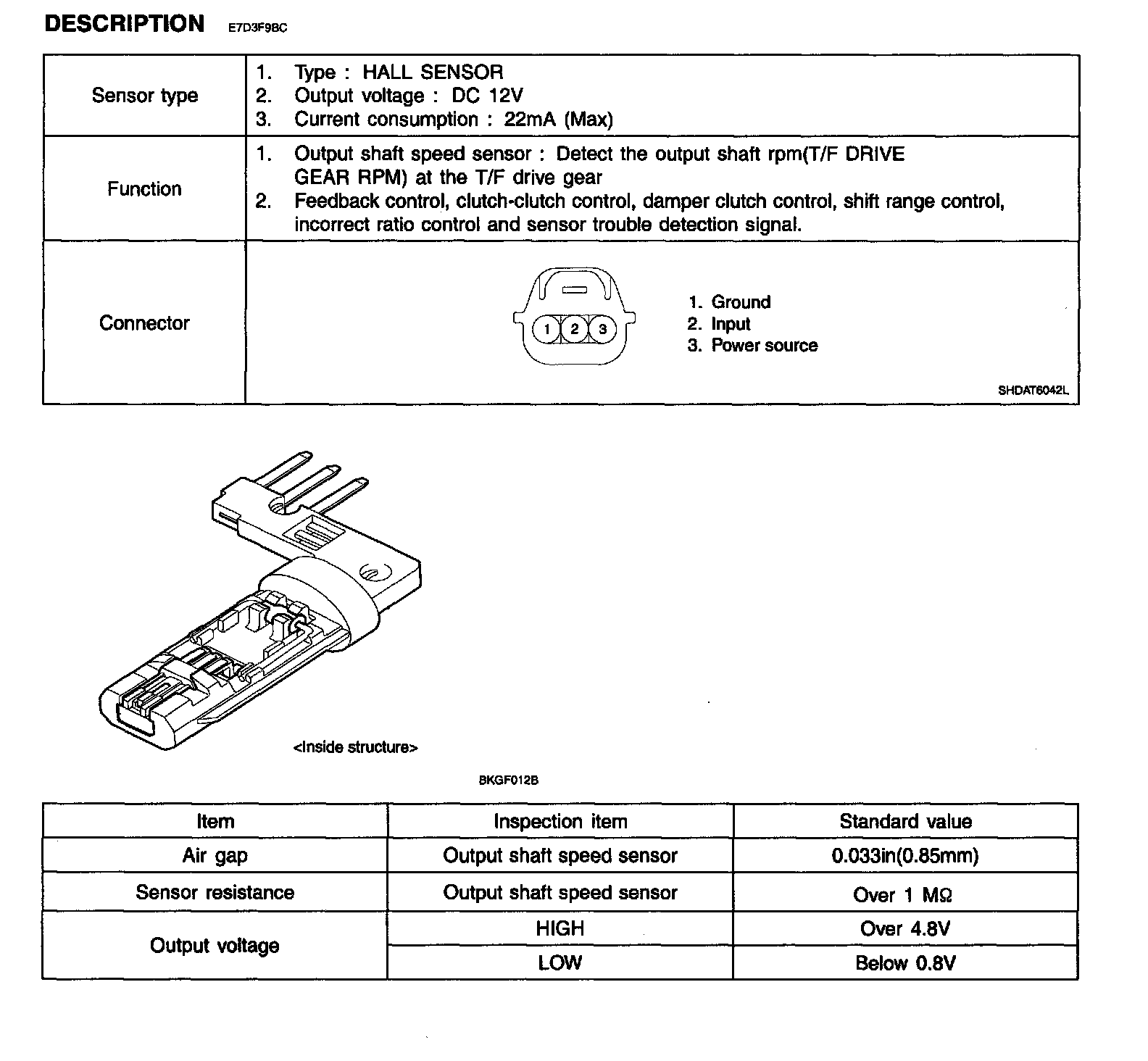

DESCRIPTION





REMOVAL
1. Remove the battery terminal.
2. Remove the battery and battery tray.
3. Remove the air duct.
4. Remove the air cleaner assembly.

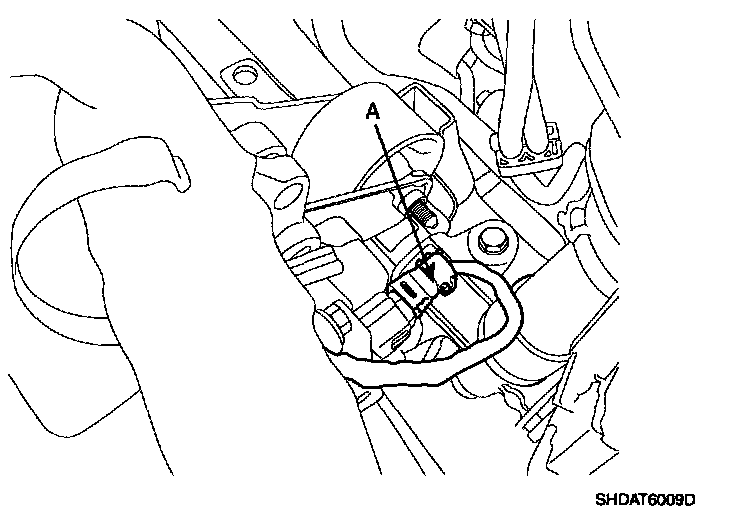

5. Remove the output shaft speed sensor connector (A).

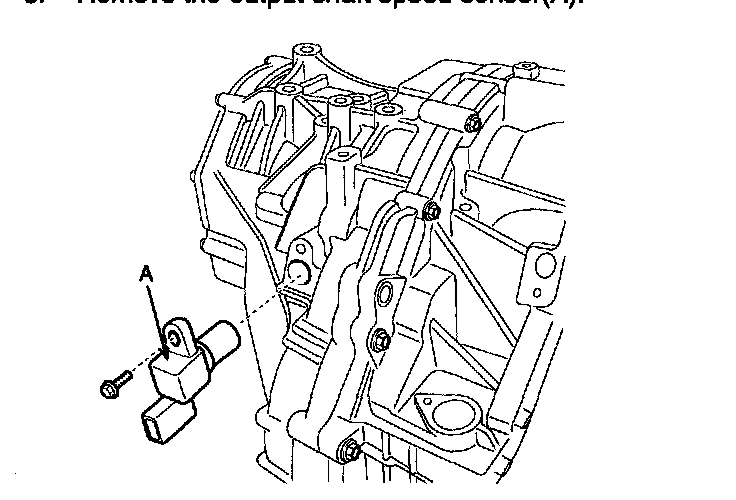

6. Remove the output shaft speed sensor (A).





INSTALLATION

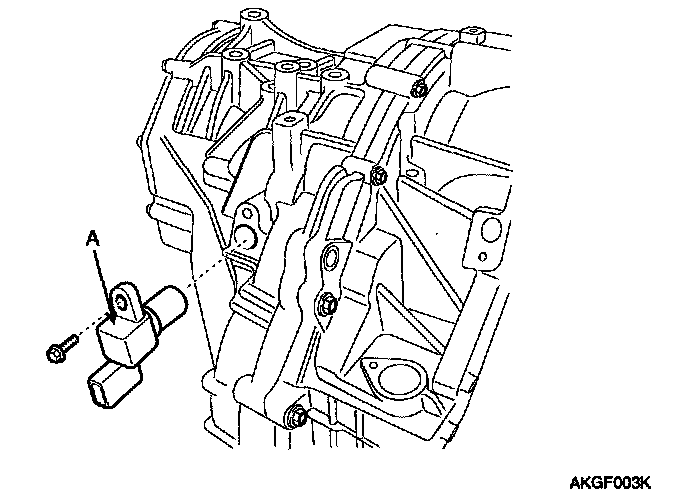

1. Install the new O-ring to the output shaft speed sensor.
2. Remove the output shaft speed sensor (A)
TORQUE: 10-12 Nm (1.0-1.2 kgf.m, 7-8 lb-ft)

CAUTION: While installing the output shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.

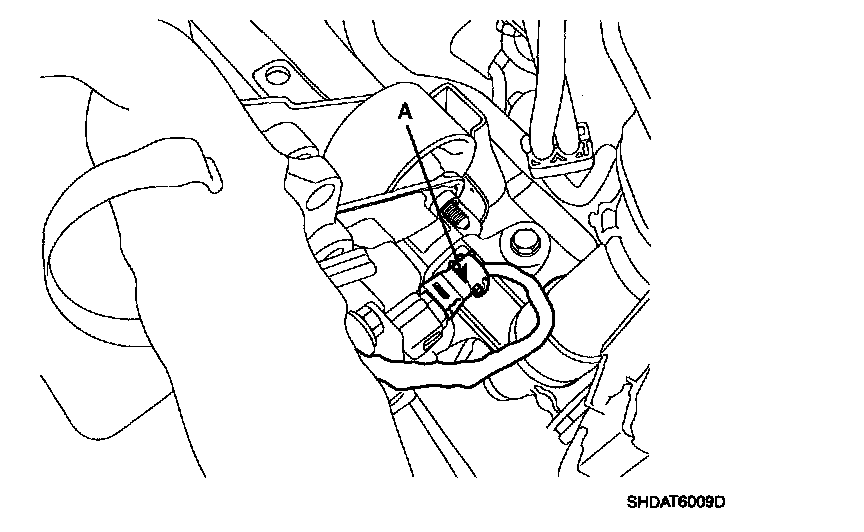

3. Check the connector for dust, dirt, or oil, then connect the output shaft speed sensor connector (A) securely.





4. Installation is the reverse of removal.
