Heated Glass Element Switch: Testing and Inspection
REAR WINDOW DEFOGGER SWITCHINSPECTION 1.
Disconnect the negative (-) battery terminal.
2.

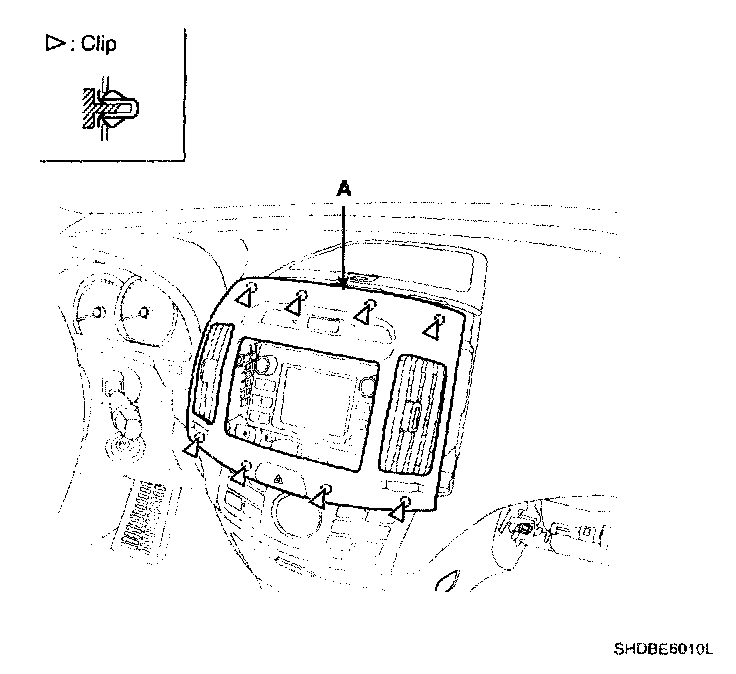

Remove the center facia panel(A). Take care not to damage fixing clips.
3.

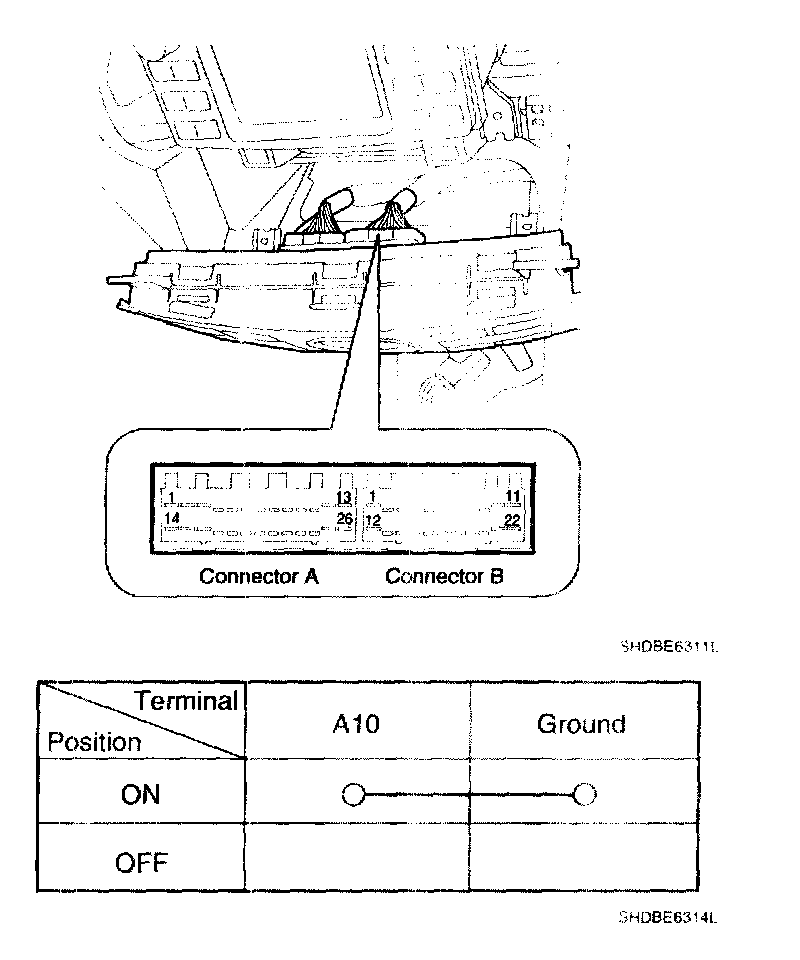

Disconnect connectors.
4.

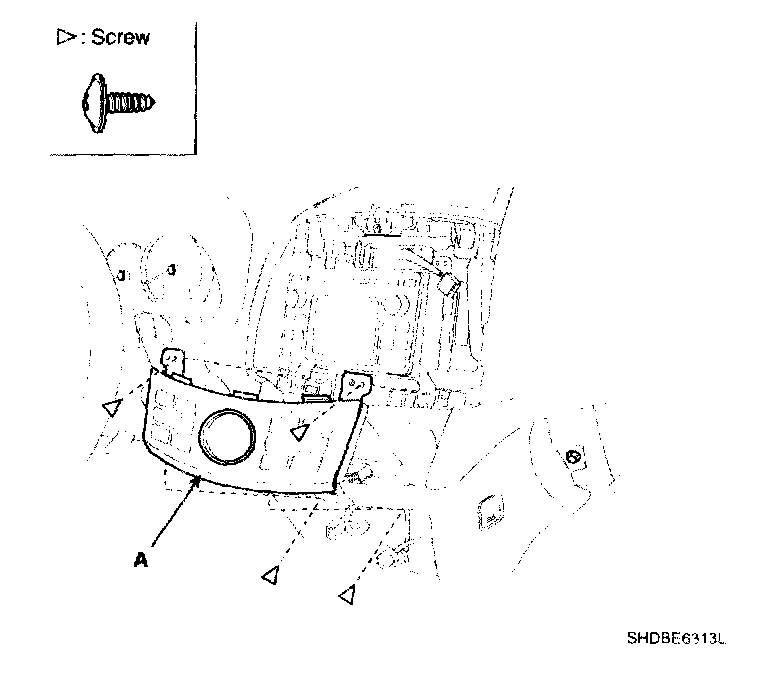

Remove the auto heater control assembly (A) after loosening 2 screws.
5.
Using an Ohmmeter, inspect the continuity between the terminals after removing controller.
