Power Window Switch: Testing and Inspection

POWER WINDOW SWITCH

INSPECTION

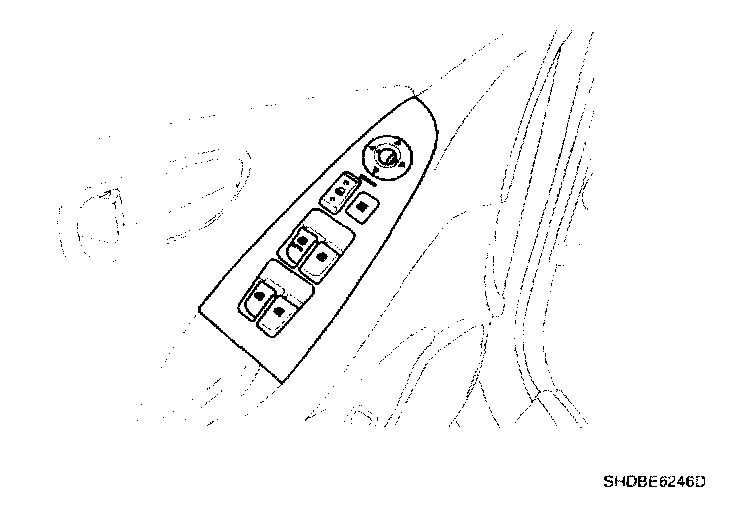

POWER WINDOW MAIN SWITCH INSPECTION
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

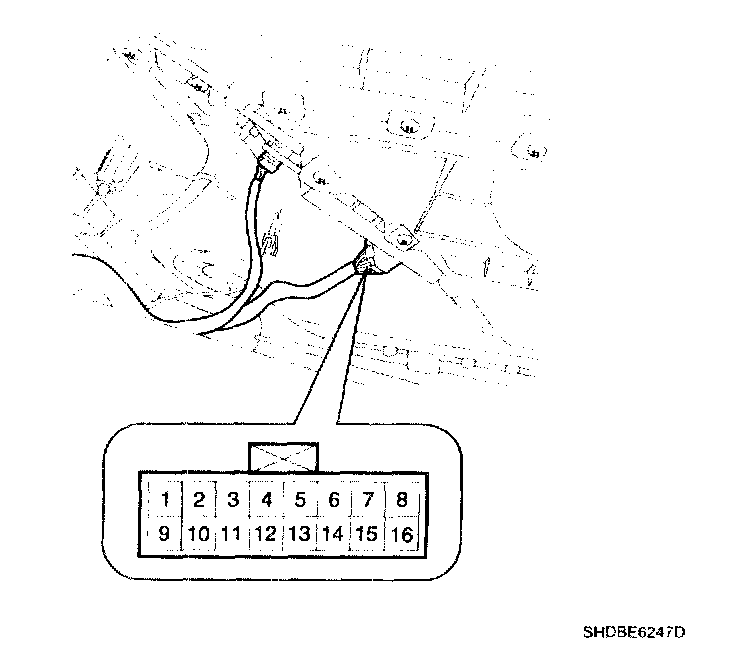

3. Disconnect the 16P connector from the switch.

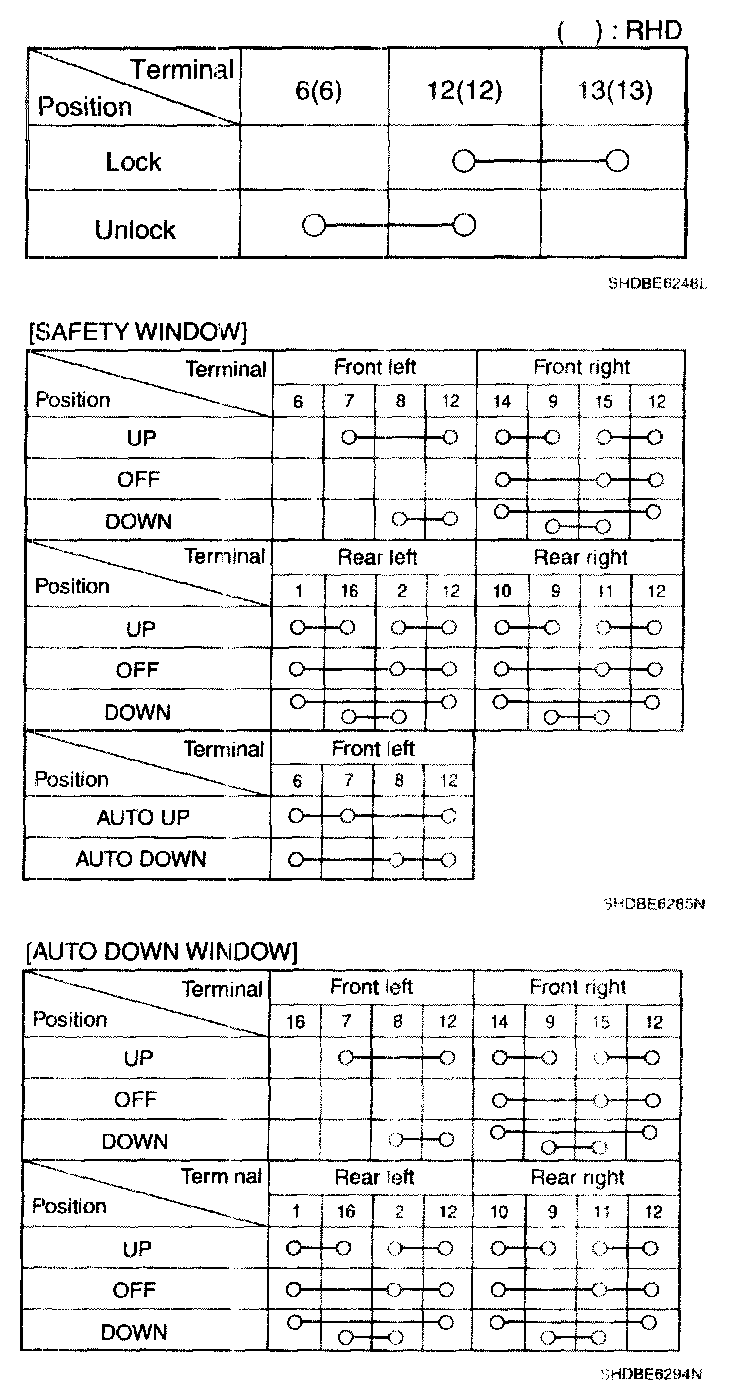

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

ASSIST POWER WINDOW SWITCH INSPECTION
1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

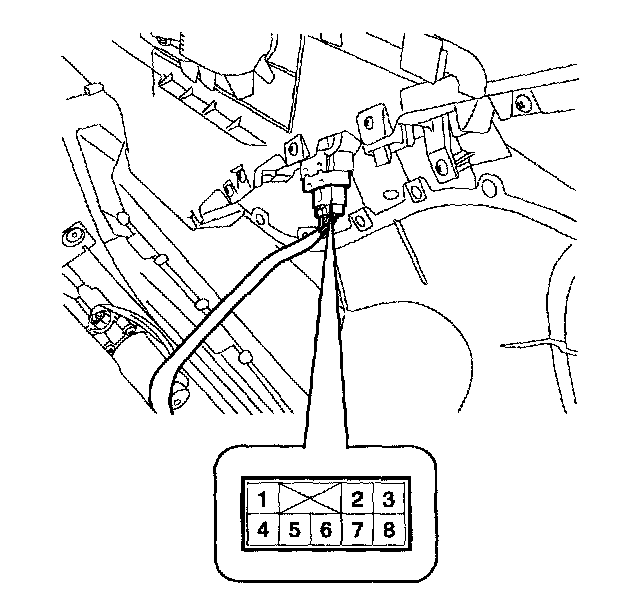

3. Disconnect the 10P connector from the switch.

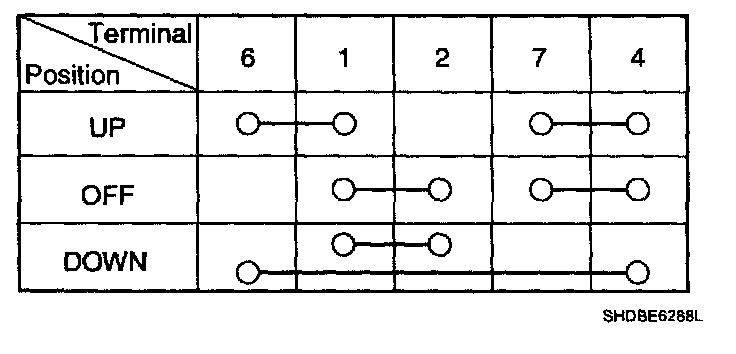

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

REAR POWER WINDOW SWITCH INSPECTION
1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

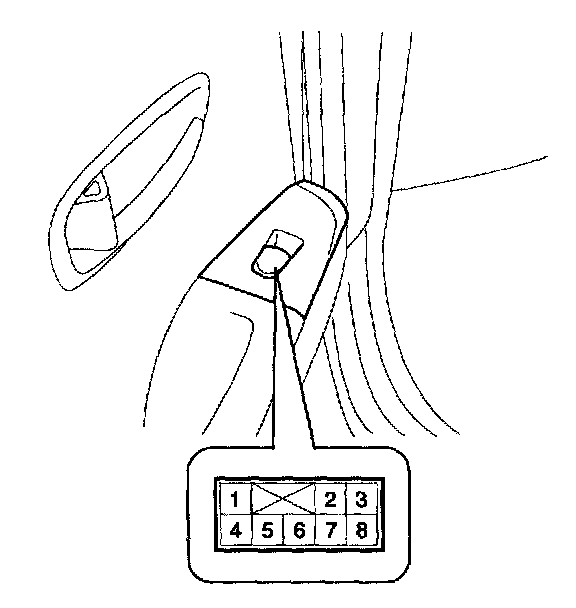

3. Disconnect the 8P connector from the switch.

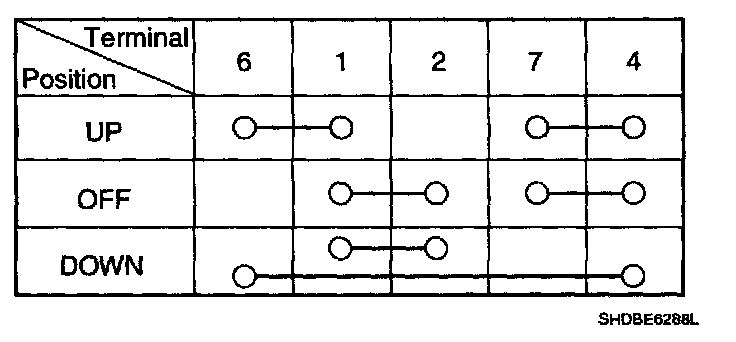

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
