Symptom Related Diagnostic Procedures

POWER WINDOWS

TROUBLESHOOTING

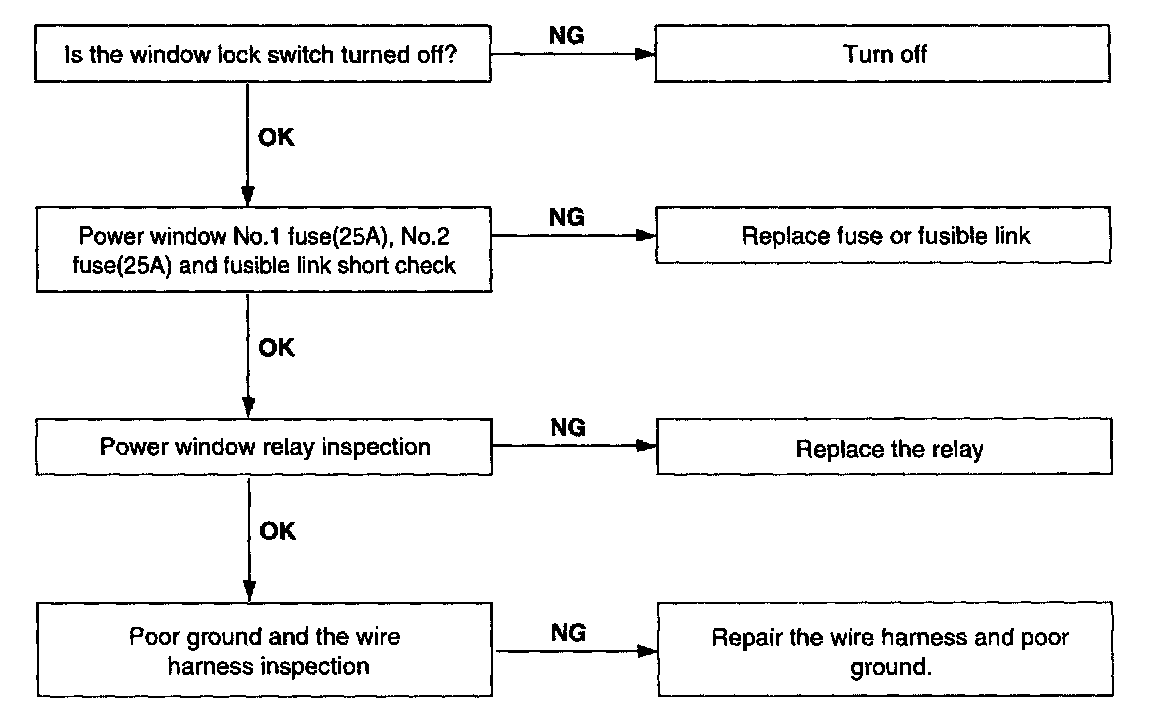

1. No windows operate from the main switch on the driver's door.

2. Driver's side window does not operate.

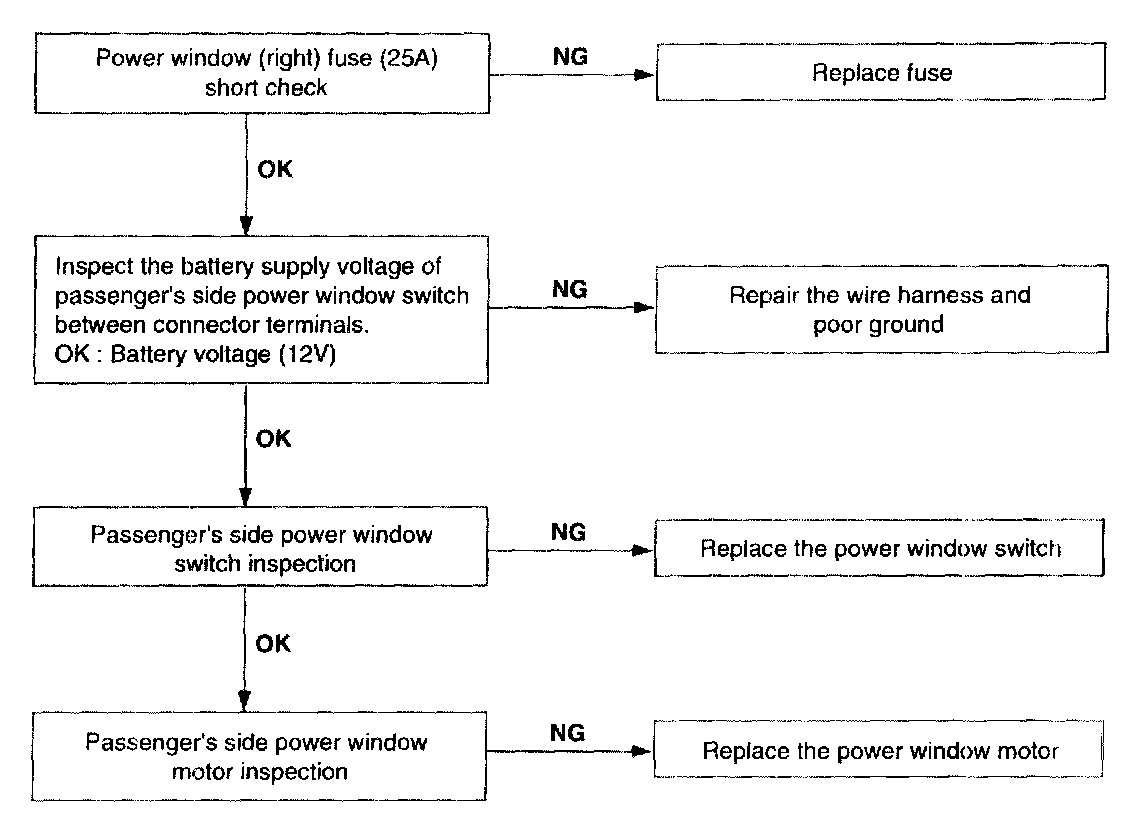

3. Passenger's side window does not operate.
