Washer Fluid Level Switch: Testing and Inspection

INSPECTION

WASHER FLUID LEVEL SENSOR SWITCH
1. Disconnect the negative (-) battery terminal.
2. Drain the washer fluid less than 800 cc (28 fl.oz.).

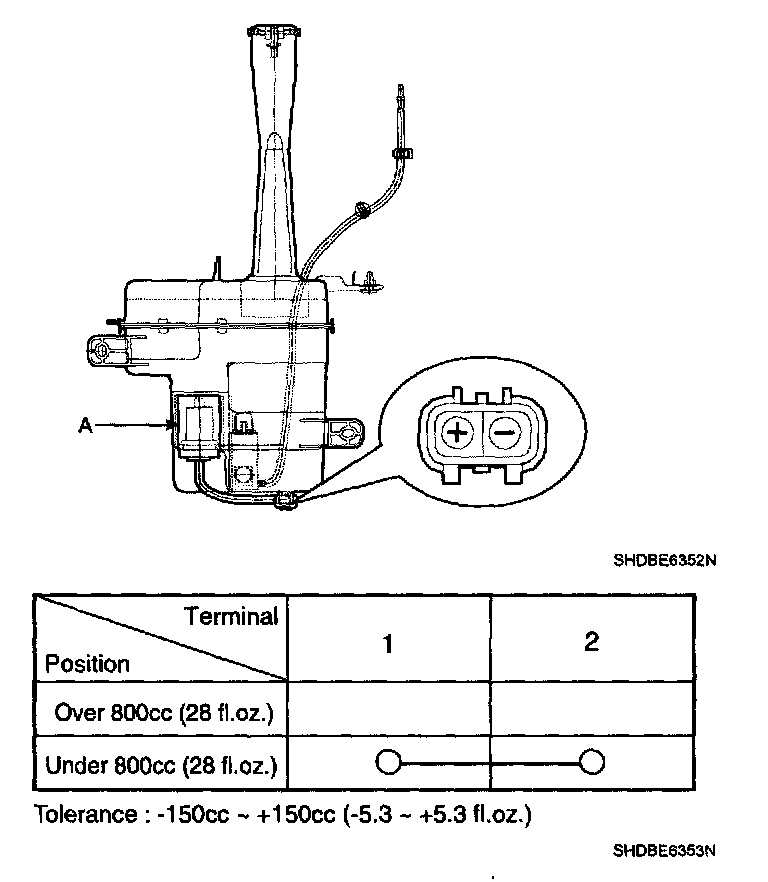

3. Check for continuity between the No.1 and No.2 terminal in each float position.
There should be continuity when the float is down.
There should be no continuity when the float is up.




4. If the continuity is not as specified, replace the washer fluid level switch (A)
