Windshield Washer Motor: Service and Repair

FRONT WASHER MOTOR

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

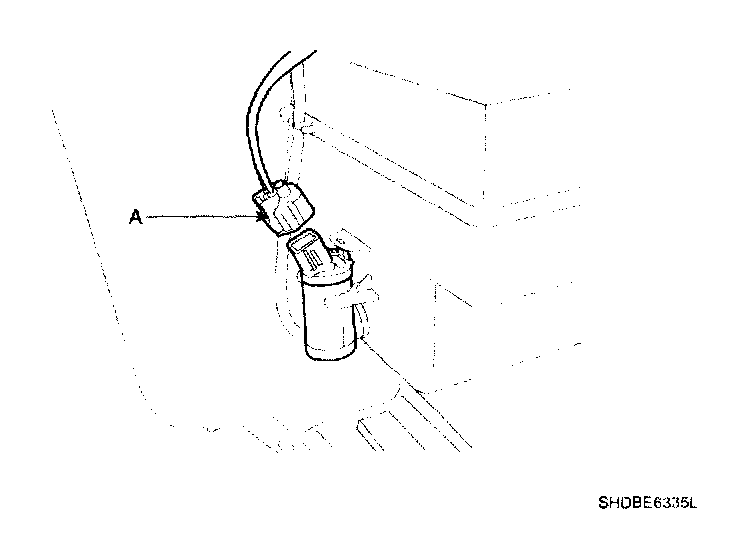

3. Remove the washer hose and the washer motor connector (A).

4. Remove the washer reservoir (A) after removing 2 bolts.

INSTALLATION
1. Install the washer reservoir.
2. Install the washer motor and connect the washer hose and the motor connector.
3. Install the front bumper cover
