Driver/Vehicle Information Display: Service and Repair

TRIP COMPUTER

DISPLACEMENT
1. Disconnect the negative (-) battery terminal.

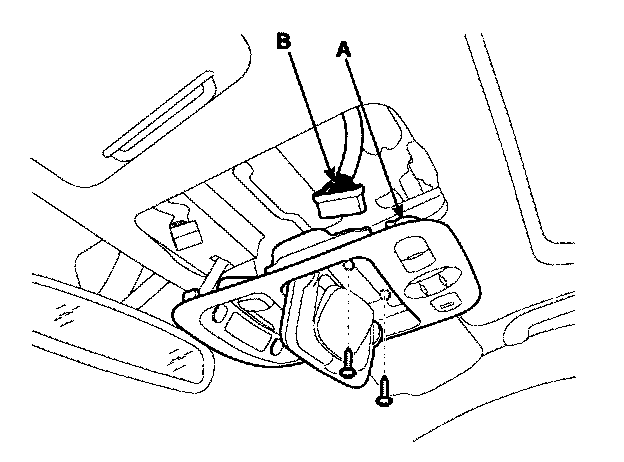

2. Remove the lens and open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. And disconnect the connector then remove the overhead console lamp assembly from the headliner.

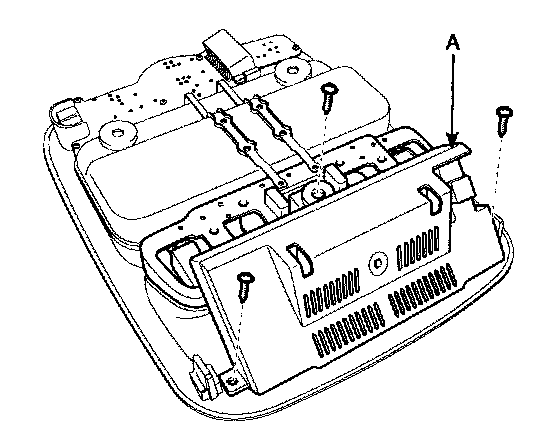

3. Remove the trip computer (A) mounting screws (3EA), and then disconnect from the overhead console.
4. Installation is the reverse of removal.
