DVD Player: Service and Repair

REAR SEAT ENTERTAINMENT (DVD ONLY)

1. Disconnect the negative (-) battery terminal.

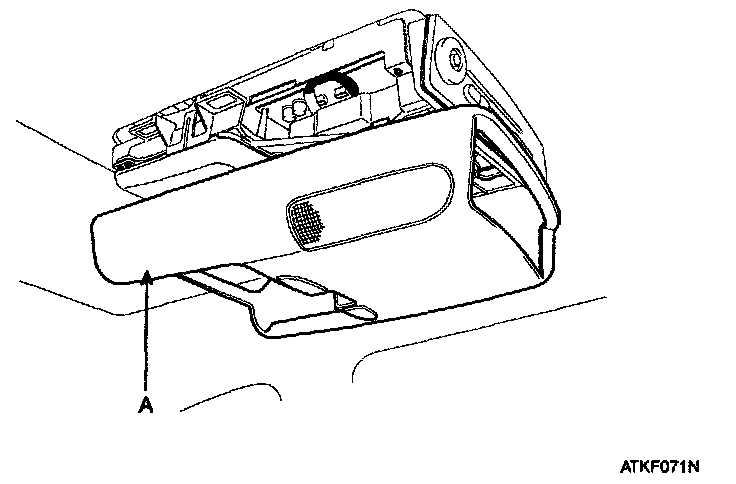

2. Remove the DVD rear monitor cover (A) and disconnect the interior lamp connector.






3. Remove the DVD rear monitor (A) mounting screws (4EA) and disconnect the DVD rear monitor connector.






4. Installation is the reverse of removal.
