Burglar Alarm Function

BURGLAR ALARM FUNCTION

BURGLAR ALARM

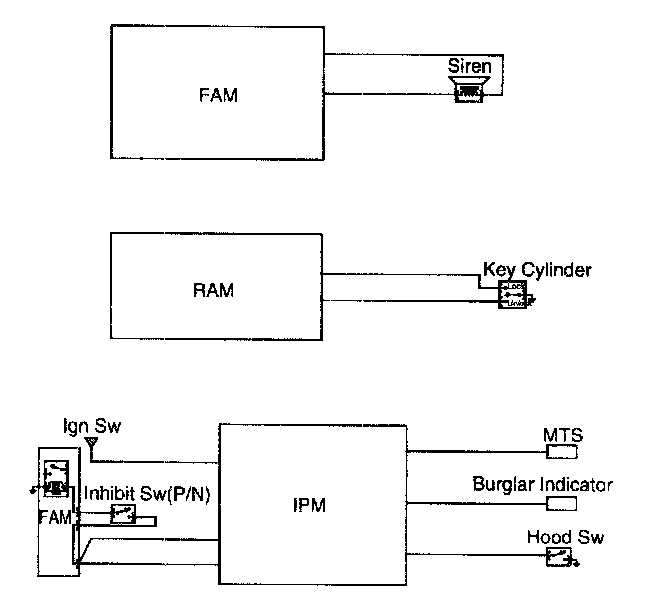

1. Basic Concept
- The following functions are related to the RKE and burglar alarm systems.
- Door locking
- Door unlocking
- PSD open/close (both fix left and right)
- PTG open/close
- Panic

- If IGN key is inserted into the key cylinder, the RKE transmitter functions are inoperative.
- Door locking by RKE signal:
- Whenever this signal is received, door LOCK pulse is always issued.
- Hazard lamp flashes one time for 1 second depending on the burglar alarm state.
- This signal will make the system possible to enter into the ARM state (or PREARM state depending on the vehicle condition).

- Door unlocking by RKE signal.
- Whenever this signal is received, door UNLOCK pulse is always issued.
- Hazard lamp flashes two times whenever the key fob unlock signal is received.
- This signal will make the system possible to enter into the DISARM or 30 sec DELAY state depending on Condition A is true or not.

- LH or RH PSD open/close by RKE signal.
- Only with the information received by RKE, the burglar alarm system cannot distinguish the OPEN signal from CLOSE signal.
- RAM will pass this signal to LH PSD and RH PSD then the burglar alarm state is decided depending on the vehicle condition.

- PTG open/close
- Only with the information received by RKE, the burglar alarm system cannot distinguish the OPEN signal from CLOSE signal.
- RAM will pass this signal to PTG module then the burglar alarm state is decided depending on the vehicle condition.

- Panic by key fob
- Whenever this signal is received, the PANIC function is activated (unless the system is already in an ALARM state).

- Mechanical key on the driver door, assist door and tail gate door
- It is possible to ARM or DISARM the system.




2. Functional Diagram

ARM MODE
- If 30 second timer is elapsed without any changes from the ARM WAIT mode, then system goes to ARM mode.
- Whenever RKE lock signal is received in the ARM state, then the system makes a hazard flash (1 second) and sends a door lock pulse

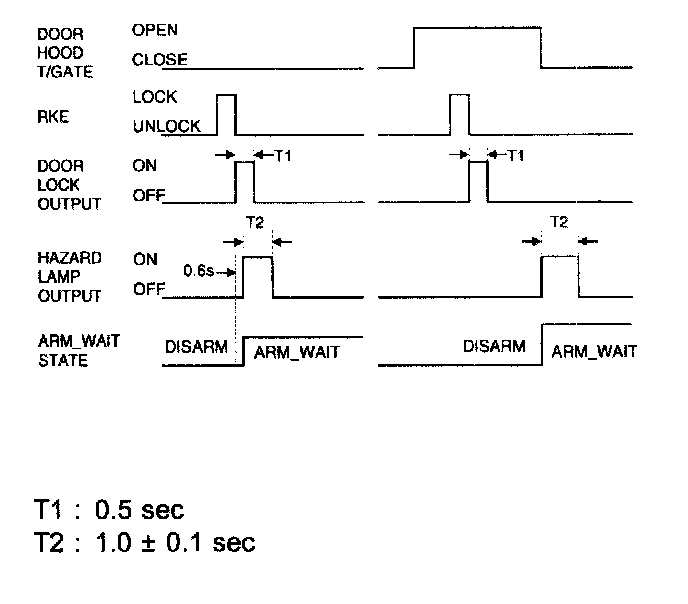

PREARM MODE
- If the vehicle is locked using the RKE transmitter or the door lock cylinder, and one or more doors are in an OPEN state, the system issues a LOCK pulse and enters a PREARM state. "In the PREARM state, the hazard lamps do not flash".
- If all doors are closed in the PREARM state, the system enters ARM WAIT mode, and the hazard lamps will flash once.
- During PREARM state, if f key reminder switch is ON & IGN 1 & IGN 2 are turned on in this state, the system immediately goes to DISARM state




ARM WAIT MODE
- The ARM WAIT mode is active for 30 seconds. If any entrance (hood, doors, tailgate) is opened, any lock knob is moved to an UNLOCK state, or the ignition switch is turned ON, the system will immediately enter DISARM mode. The system will enter ARM state if none of the previously mention conditions occur during the 30-second ARM WAIT mode.

DISARM MODE
- If RKE unlock signal is received, then UNLOCK output is issued together with the flashing of hazard lamp (two times) and the system enters into the DISARM condition.
- If mechanical key switch unlock signal is received, then UNLOCK output is issued for 500 ms and the system enters into the DISARM condition.
- When entering into DISARM from ALARM state, current alarm will be cancelled and burglar alarm relay drive output is turned off.
- When RKE unlock signal is received again in the DISARM state, UNLOCK output is issued again and hazard lamp is flashed also (two times).

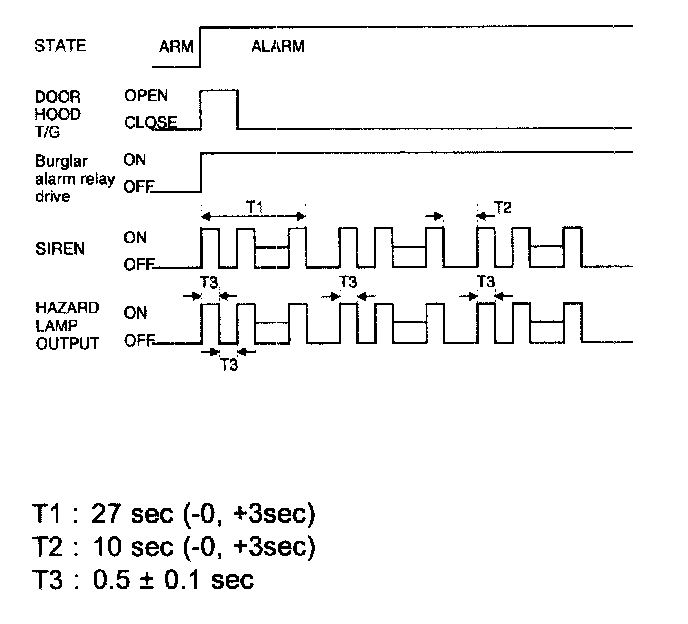

ALARM MODE
- If one or more of entrances are opened in the ARM or REARM state, then Burglar alarm relay drive output is turned ON in order to inhibit the start condition, and hazard lamp and siren are activated for 3 consecutive cycle of 27 seconds duration.
- Siren output and hazard lamp should be synchronized to get the same output period.
- Even though all the doors are closed during alarm, alarm continues to operate it for the remaining time.
- When there is a new attack (with one of the entrance is still open) in the vehicle after completing the alarm output, alarm should not be started again.

AFTER ALARM STATE
- If ALARM cycle is elapsed, the system goes into AFTER ALARM state.
- During this state,
- Burglar alarm relay drive output maintains ON.
- Siren and hazard lamp output are stopped.

- If another entry is opened during the AFTER ALARM state, the burglar alarm relay drive output remains ON, but the siren will not be re-activated.

REARM STATE
- If all entrances are is closed during AFTER ALARM state, the system goes into REARM state.

BATTERY REMOVAL
- If the battery is removed with the system in the ARM state, the system will be placed into the ARM state upon battery reconnect.
- The ALARM state will be re-activated if the battery is disconnected, then reconnected, with the system in an ALARM state.
- If the battery is disconnected and reconnected with the system in AFTER ALARM state, the alarm will be re-activated.
- The system will enter DISARM mode if the battery is disconnected during the ALARM WAIT state.

PANIC
- If RKE PANIC signal is received Siren output and hazard lamp operate for 27 seconds and the system return to the previous state as soon as the PANIC function finishes.
- The PANIC function will be stopped if any RKE signal is received during PANIC activation.
- If Key reminder switch is ON during PANIC function is operating, PANIC is stopped immediately.
- If the system goes to ALARM mode during PANIC function is operating, PANIC is stopped immediately and then ALARM function should be activated.
- During ALARM state;
If RKE PANIC signal is received, ALARM mode is maintained and PANIC function should be ignored.
ALARM has higher priority than PANIC function.

- During AFTER-ALARM state;
If RKE PANIC signal is received, AFTER_ALARM mode is maintained and PANIC function should be activated.

SAFE & RESCUE MODE
The goal of those modes is to be able to cope with failures that may happen on some of the most critical functionalities (for the driver security) of the system.

SAFE MODE
The safe mode is entered in case of system problems such as:
- Incoherent inputs on monitored signals. In this case, safe mode is the debouncing time before the inputs are considered INVALID. Note that today, we have no way to detect if the rain/light sensor is in working operation or not. It means that a driver action will be required in case of failure of this sensor;
- Loss of the CAN frame containing the monitored signal:
- Loss of the CAN network: CAN goes to BUS OFF state, safe mode is the time necessary for detecting the BUS OFF state.

In all cases, the action in safe mode is to maintain the previous state of the system (for lighting and wiping). The list of monitored signals is the same as in rescue mode.

EXITING SAFE MODE
The software safe mode is exited and the module goes back to the normal mode when:
- On IPM, hardware inputs return to a coherent state;
- The lost CAN signal comes back while time-out has not elapsed;
- The CAN network returns to a normal state without reaching BUS OFF state.

Software safe mode is also exited when the software rescue mode is entered (problem does not disappear).

Hardware safe mode is exited and the module goes back to normal mode if the internal problem disappears (watch dog is properly triggered again). If the problem stays, hardware safe mode is exited to enter hardware rescue mode.

RESCUE MODES
The rescue mode consists in activating some safety functions when IGN2 = ON:
- Switch on the low beams (FAM), park lamps (FAM), tail lamps (RAM) and cluster backlighting (IPM);
- Unlock of all the doors when the rescue mode is entered with IGN2 = ON
- Front wipers do not need to be turned on by software in rescue mode because wipers can be turned on by manually setting the MF switch to low speed. The FAM software must keep the same state as before entering the rescue mode.
- When IGN2 = OFF, low beams, park/tail lamps and cluster backlighting are turned off.

ENTERING RESCUE MODES
Rescue mode is entered when some important CAN signal or hardware input are not available. Rescue mode is entered when one of the following conditions is true:

IPM
- Timeout on CAN signal InhibitSwSts, to detect loss of CAN connection with FAM.
- Timeout on CAN signal StopLpErrorSts, to detect loss of CAN connection with RAM.
- MF Light Switch information is invalid: when the signals coming from MF Light Switch are not coherent for more than 2 s, CAN signal ParkTailHeadLpCtrl is sent with INVALID value and rescue mode is entered.
- Front Wiper MF Switch information is invalid: when the signals coming from Front Wiper MF Switch are not coherent for more than 2 s, CAN signal FWiperCtrl is sent with INVALID value and rescue mode is entered.
- CAN is in Bus Off state

RAM
- Timeout on CAN signal InhibitSwSts, to detect loss of CAN connection with FAM.
- Timeout on CAN signal ParkTailHeadLpCtrl or FWiperCtrl, to detect loss of CAN connection with IPM.
- ParkTailHeadLpCtrl = INVALID or unknown value
- FWiperCtrl = INVALID or unknown value
- CAN is in Bus Off state

FAM
- Timeout on CAN signal StopLpErrorSts, to detect loss of CAN connection with RAM
- Timeout on CAN signal ParkTailHeadLpCtrl or FWiperCtrl, to detect loss of CAN connection with IPM
- ParkTailHeadLpCtrl = INVALID or unknown value
- FWiperCtrl = INVALID or unknown value
- CAN is in Bus Off state

For all CAN signals, time-out duration is 2.5 times signal periodicity.
