Comfort Function
COMFORT FUNCTIONPOWER WINDOWS
1. The purpose of the power window function is to manage the driver and assist power window motors. This function is entirely implemented in the DDM and ADM (door modules) and DMS role for this function is limited to providing signals through the CAN bus.
POWER SEAT WITH MEMORY INTERFACE
This function manages the power seat and the associated memorized positions. This function is entirely implemented in the IMS (seat module) and DMS role for this function is limited to providing signals through the CAN bus.
ADJUSTABLE PEDAL
ADJUSTABLE PEDAL WITH MEMORY INTERFACE (IMS)
1. This function is implemented by the IMS. This function adjusts the pedal position when the pedal backward/forward switch is pressed.
2. Functional Diagram

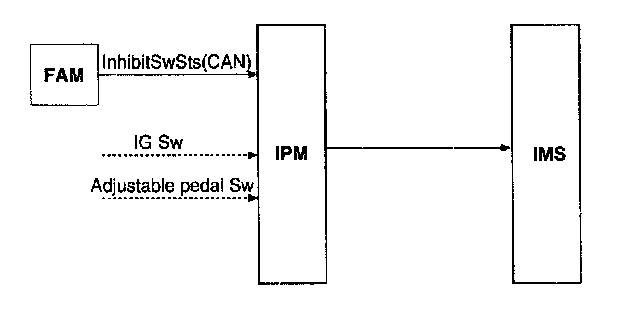

ADJUSTABLE PEDAL (NON-IMS)
1. Adjust Pedal allows to activate Adjustable Pedal feature for the non-IMS equipped vehicle, IPM needs to control the power source (by relay coil control) of the adjustable Pedal switch unit.
There is no Adjustable Pedal switch for Non-IMS version.
2. Functional Diagram
REVERSE DRIVE EXTERIOR SIDE MIRROR
This function is implemented by the DDM. This function turns the 2 external reverse mirrors down when gear box in reverse position.

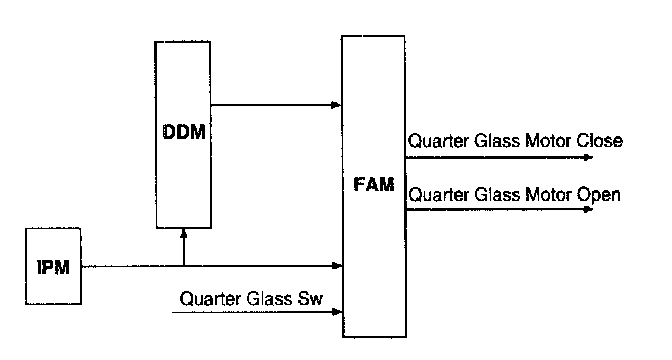

QUARTER GLASS OPEN/CLOSE
1. Working Conditions
This Function is available when Ignition key is in RUN position and for 30 sec after end of RUN.
- Quarter glasses can be controlled by switches situated near driver or switches situated near rear passengers seat (3rd row of seats).
- When the switch is pressed the motor output is ON until the switch is released or after 5 ± 1 sec.
The switch has to be released and pressed again to command the motor output ON again.
- If power window lock is activated only driver window is enable by driver side switch and no switches are enable to open quarter glass.
- There is no interaction with the sliding doors. It is not forbidden to open the quarter glasses when the sliding door on the same side is open.
- No switch information (driver or rear passenger) prevails on the other. If the main switch and the passenger side switch are pressed in opposite direction at the same time, window stops moving.
2. Functional Diagram

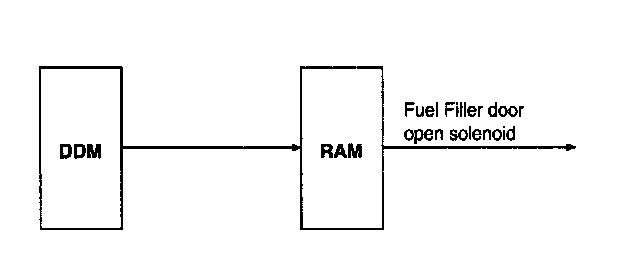

OPEN FUEL FILLER DOOR
1. Functional Diagram
SUN ROOF RELAY COIL
This function defines the condition for switching on or off power feed to sun roof relay coil. This function is available in RUN position and during after run timer ON.
POWER WINDOW TIMER
This function defines the conditions for allowing use of power windows, quarter glass, and feed to sunroof relay coil.

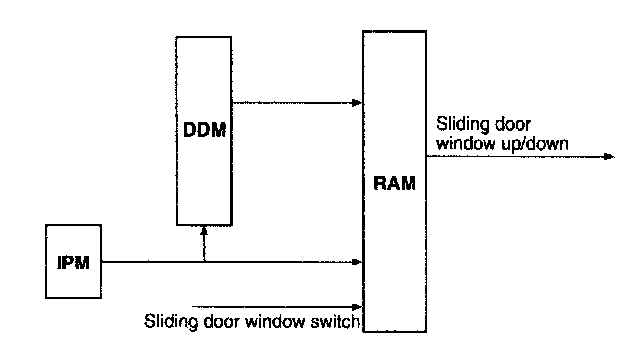

SLIDING DOORS POWER WINDOWS
1. Working Conditions
This function is available when ignition key is in RUN position and for 30 sec after end of RUN. Window operation will be canceled if the driver or assist door is opened during the 30 sec period after the key is turned from RUN to ACC or OFF position.
2. Functional Diagram

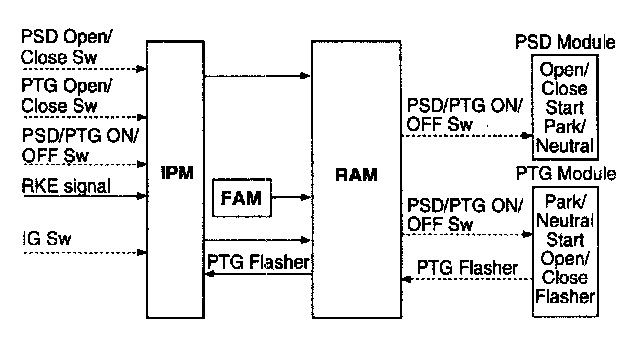

POWER SLIDING DOOR & POWER TAILGATE
1. Description
There are two sliding doors and one tailgate in the vehicle. A switch is fitted at each B-pillar to permit Power Sliding Door activation. For the tailgate, there is also one push button switch. These switches are used to send an signal of 200 ms minimum to the PSD module (or PTG module).
2. Functional Diagram

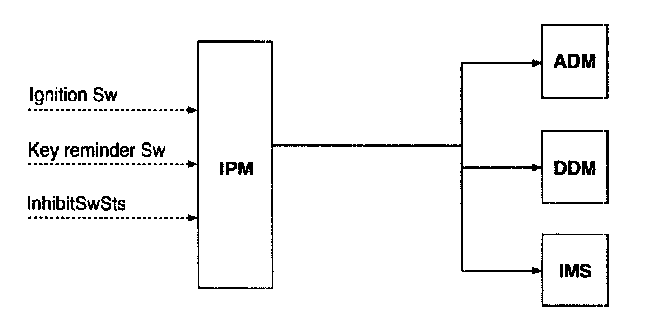

EASY ACCESS
1. Description
The easy access, function permits automatic rearward movement of the driver seat when the key is removed from the cylinder. Automatic forward movement of the driver seat will take place when the key is inserted into the cylinder. This function will be enabled on IMS equipped vehicles when the AUTO button is pressed. Inhibit Switch should be in P-Position for the Easy Access operation.
2. Functional Diagram
