Driving Actuator

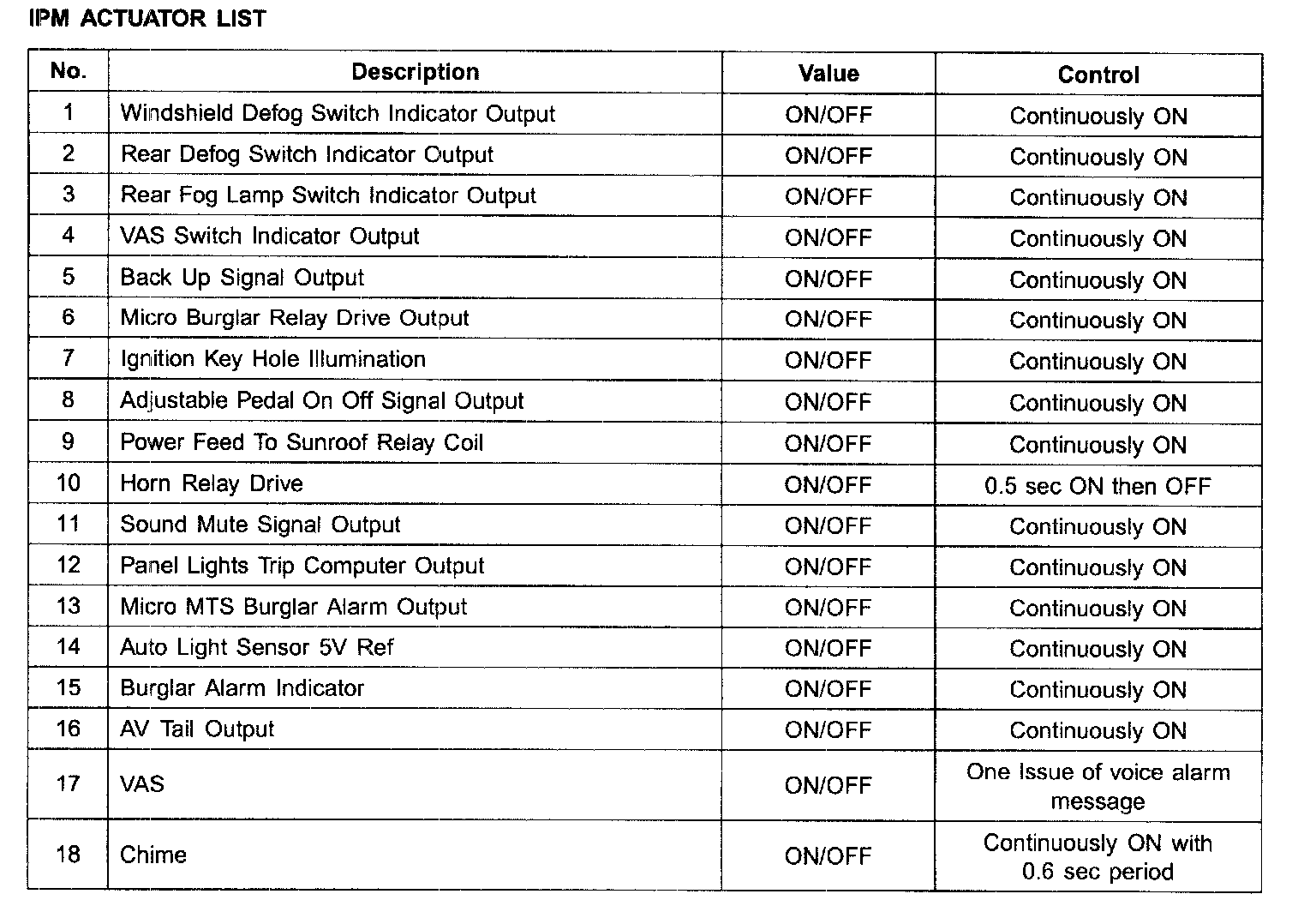

IPM Actuator List:

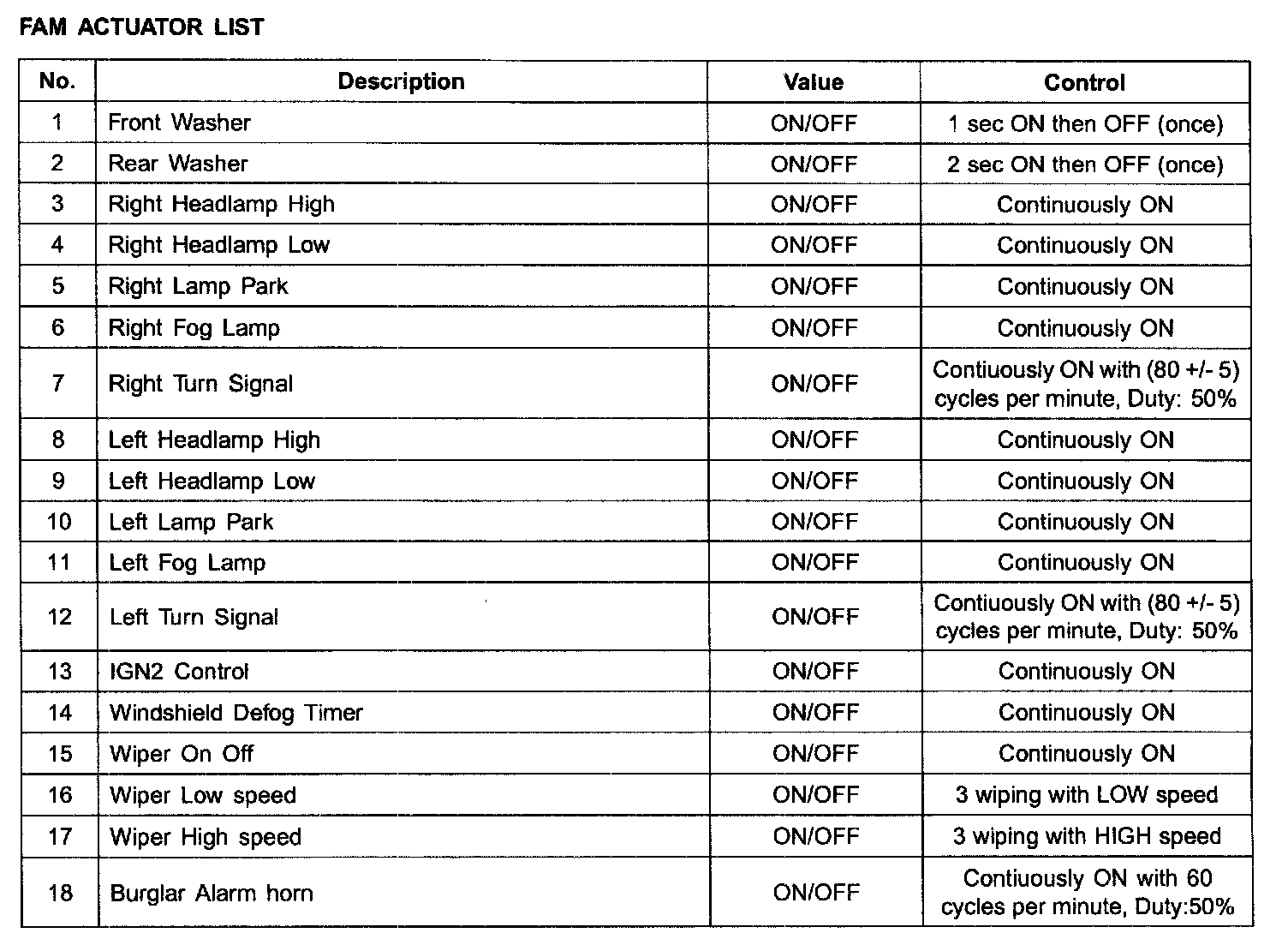

FAM Actuator List:

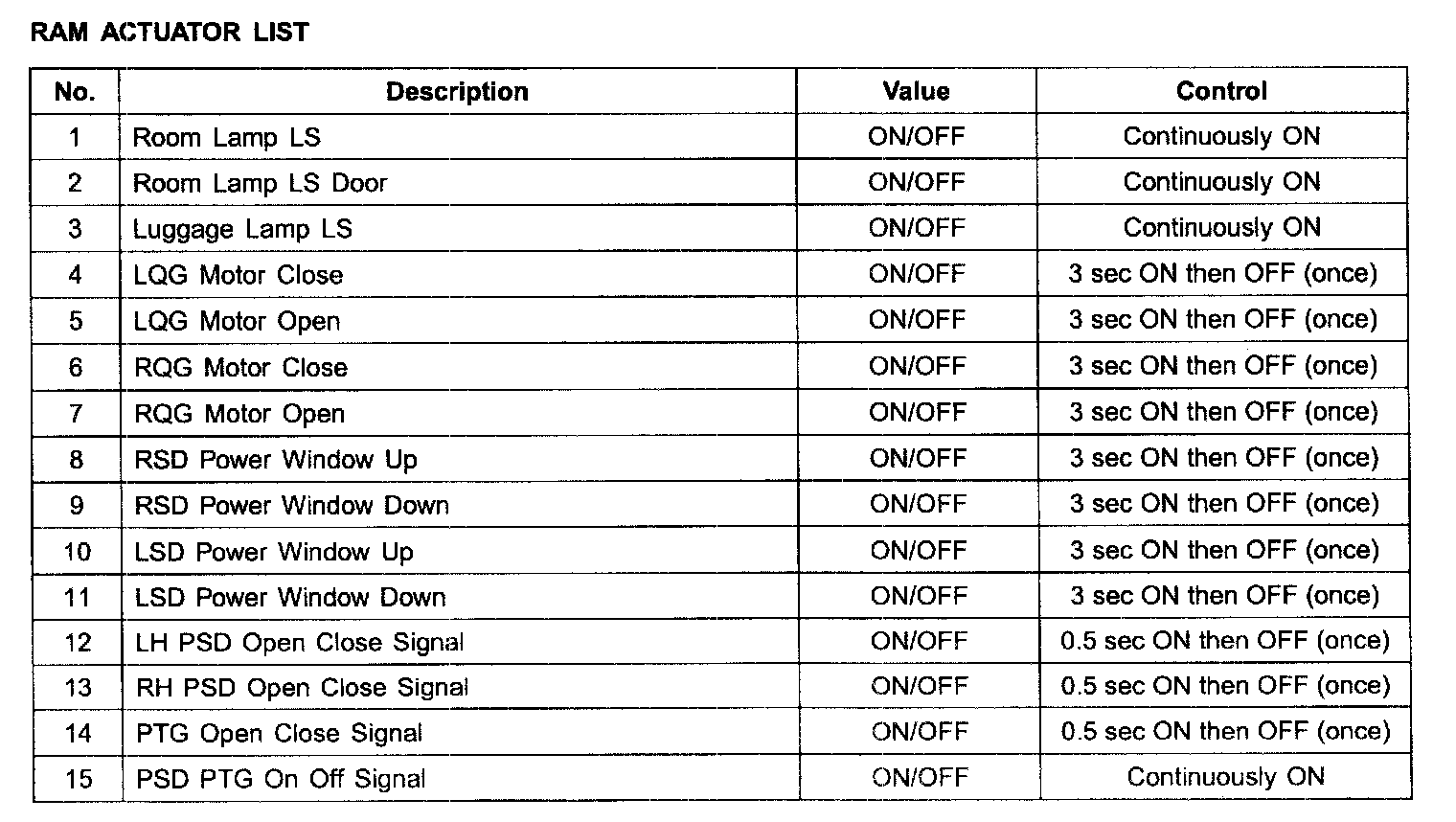

RAM Actuator List (Part 1):

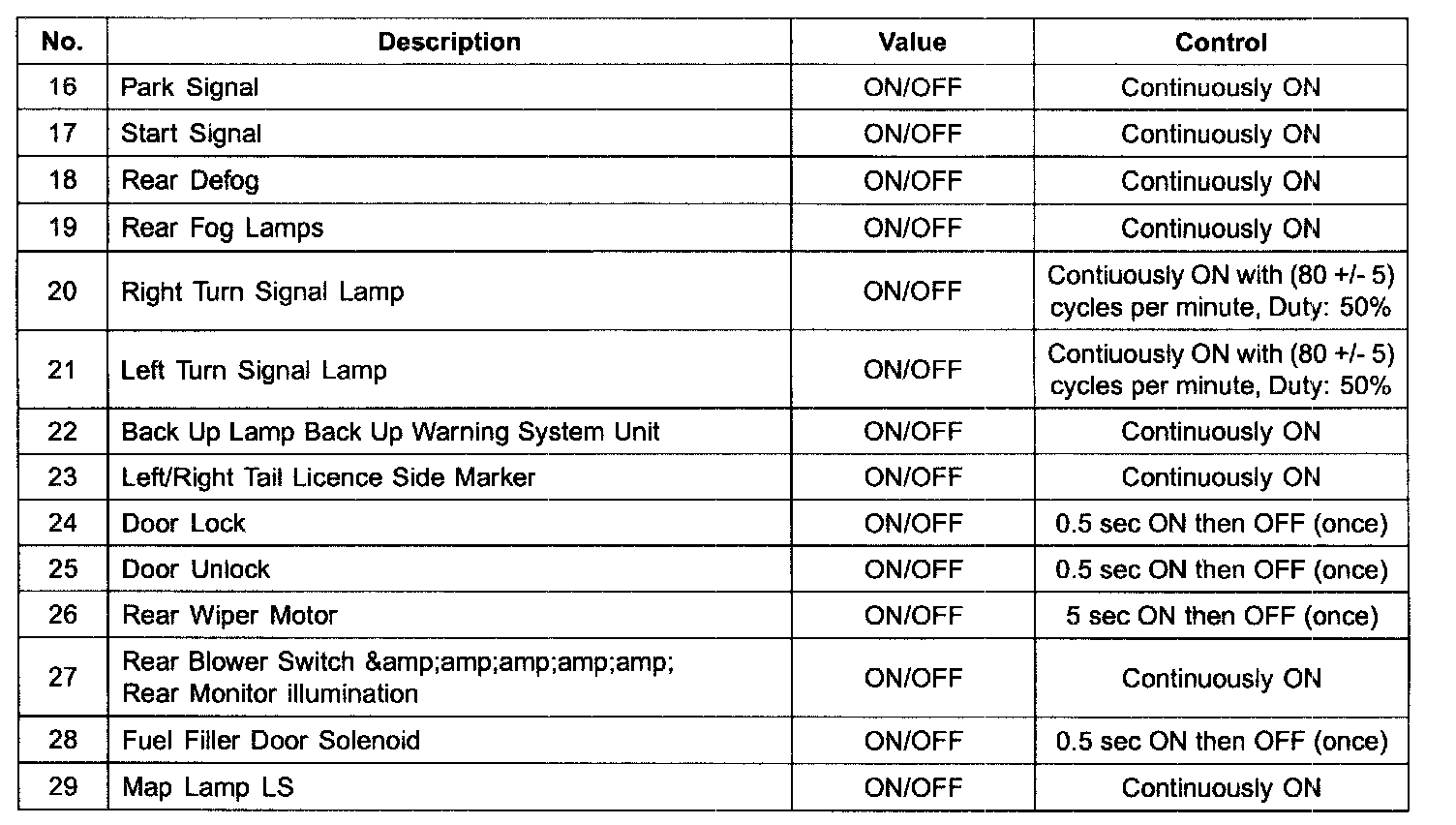

RAM Actuator List (Part 2):



DDM Actuator List:

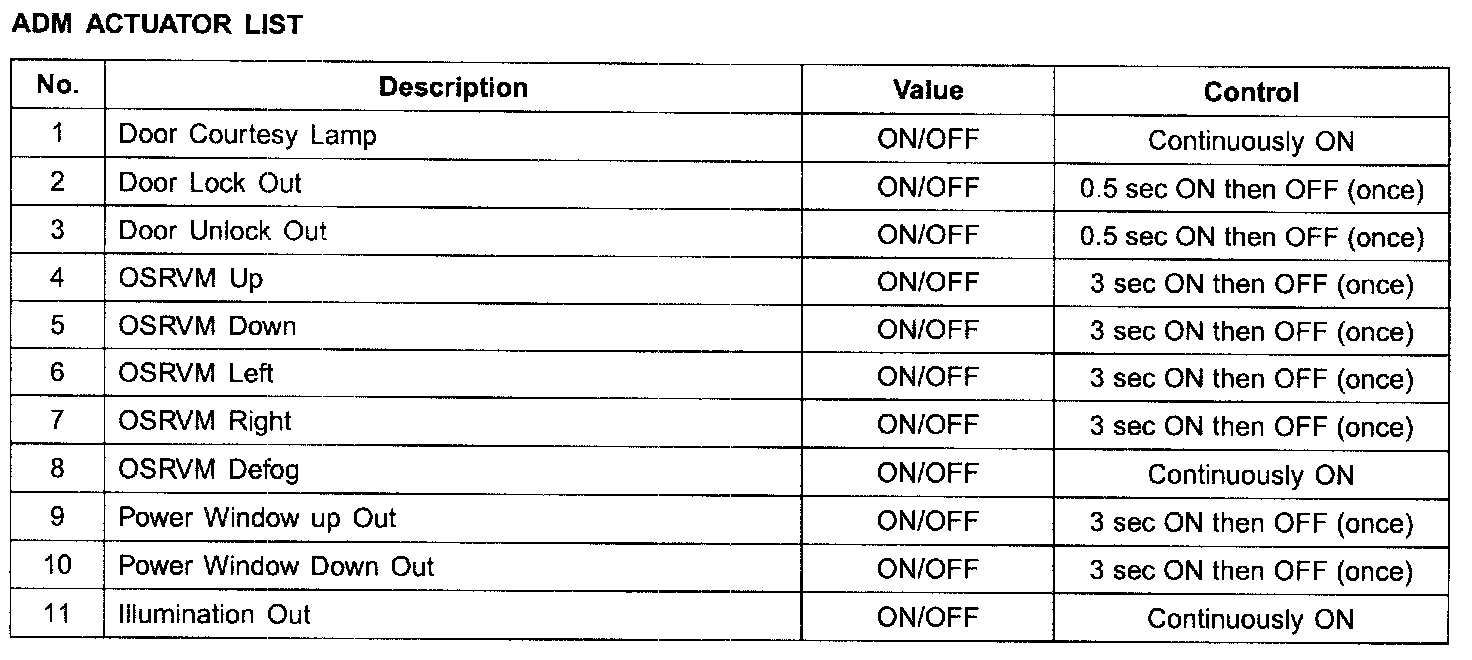

ADM Actuator List:

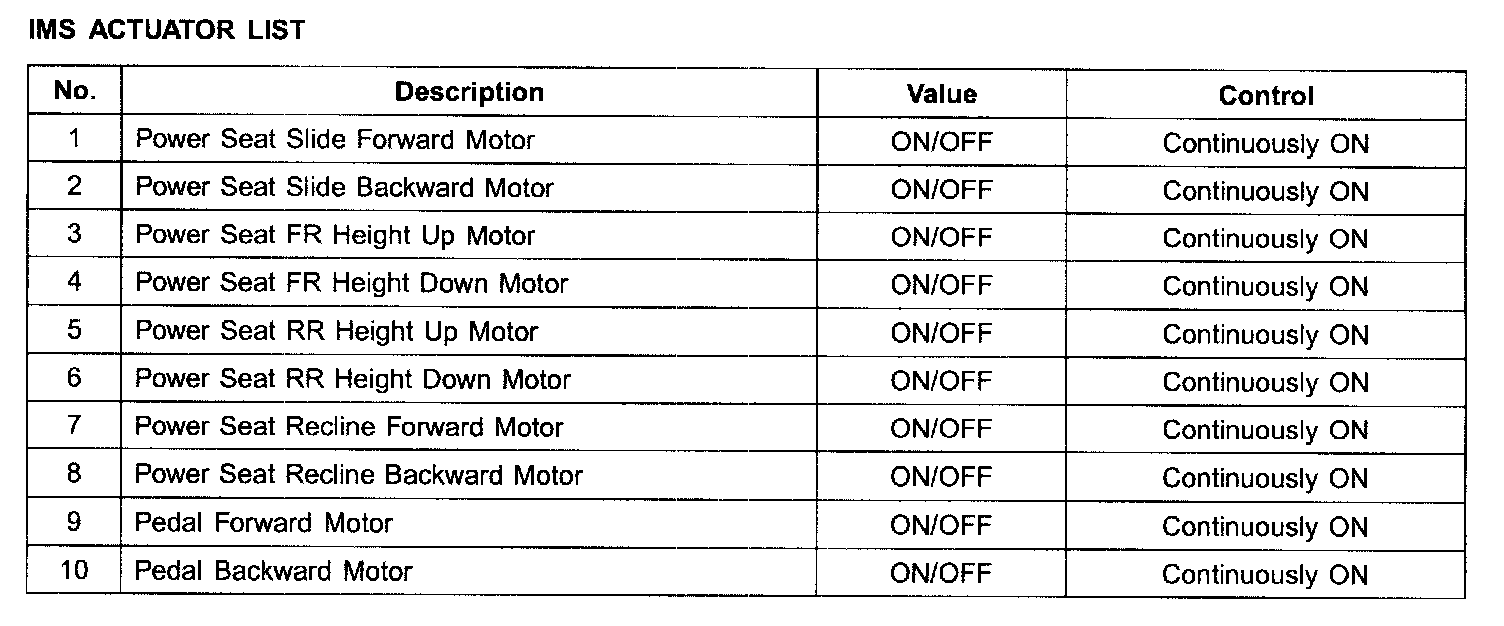

IMS Actuator List:
