Arm Rest: Service and Repair

ARMREST REPLACEMENT

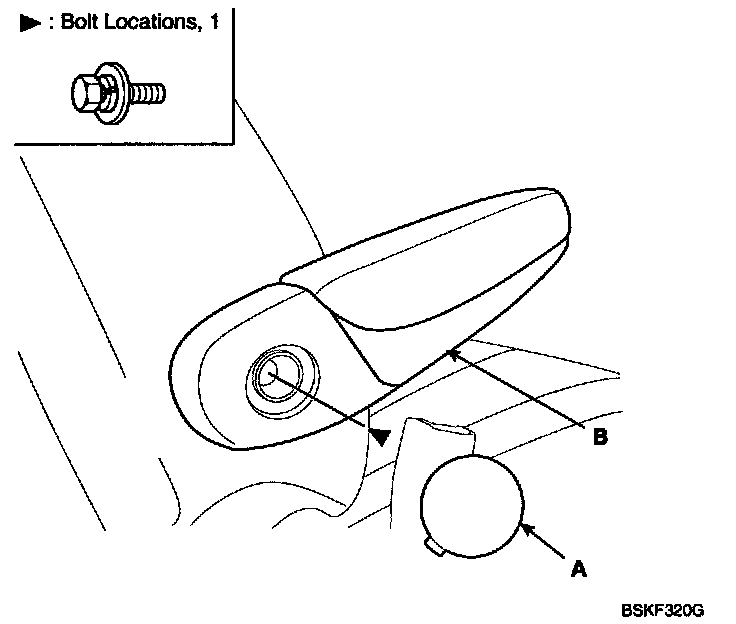

1. Remove the cover (A).
2. After the armrest mounting bolt, then remove the armrest (B).






3. Installation is the reverse of removal.
