Front Pillar Trim Replacement

FRONT PILLAR TRIM

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

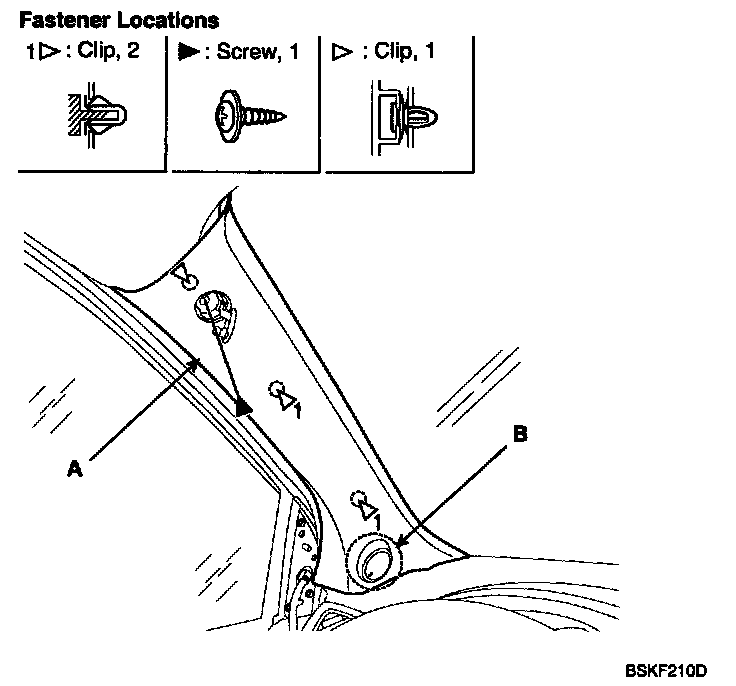

1. Remove the front pillar trim (A).
2. Disconnect the connector (B).






3. Installation is the reverse of removal.

NOTE: Replace any damage clips.
