Trunk / Liftgate Lock Cylinder: Service and Repair

LOCK CYLINDER REPLACEMENT

1. Remove the tailgate trim.
2. Remove the tailgate garnish.
3. Disconnect the key rod (B) and connector (A).

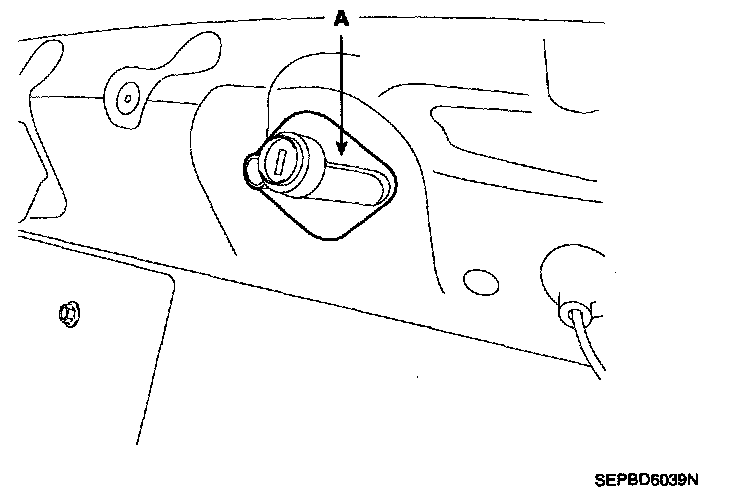

4. Remove the key holder (A).






5. Installation is the reverse of removal.

NOTE: Make sure the tailgate opens properly and locks securely.
