Mirror Replacement

MIRROR REPLACEMENT

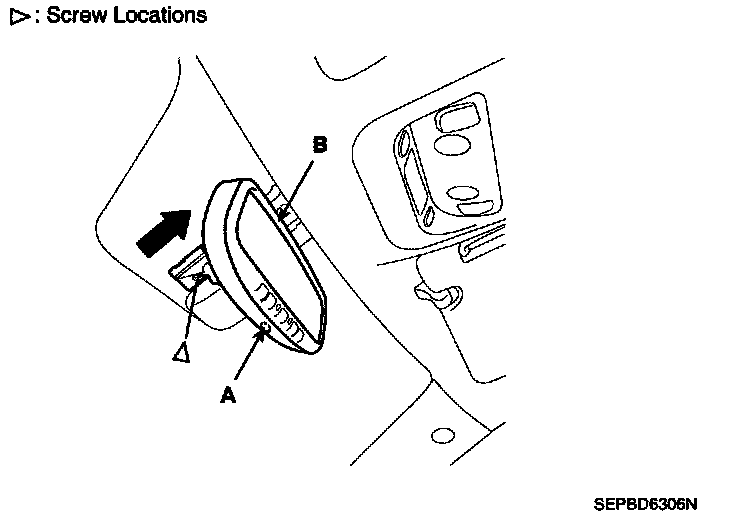

1. Remove the cover (A).

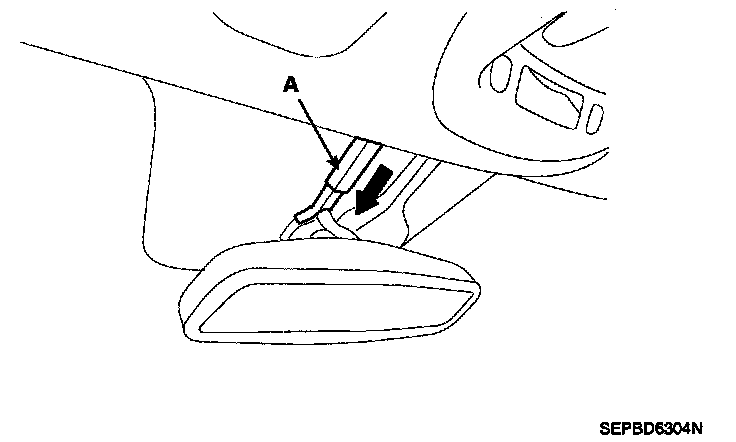

2. Remove the cover and connector (A).
3. Push the ECM mirror base up to remove the ECM mirror assembly (B).






4. Installation is the reverse of removal.
