Seat Assembly Replacement

SEAT ASSEMBLY REPLACEMENT

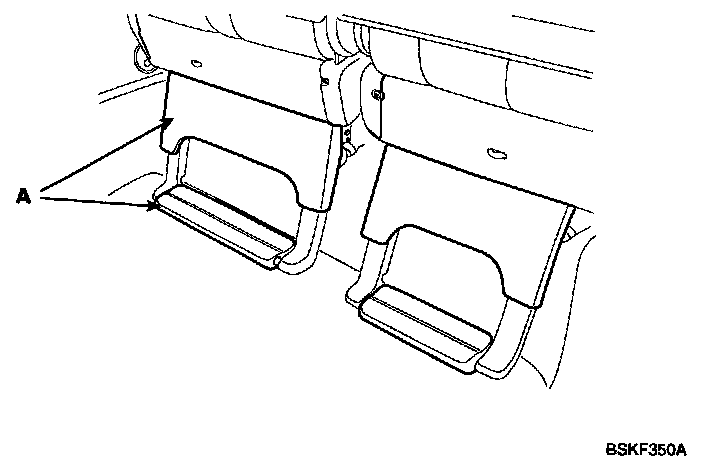

1. Remove the cover (A).

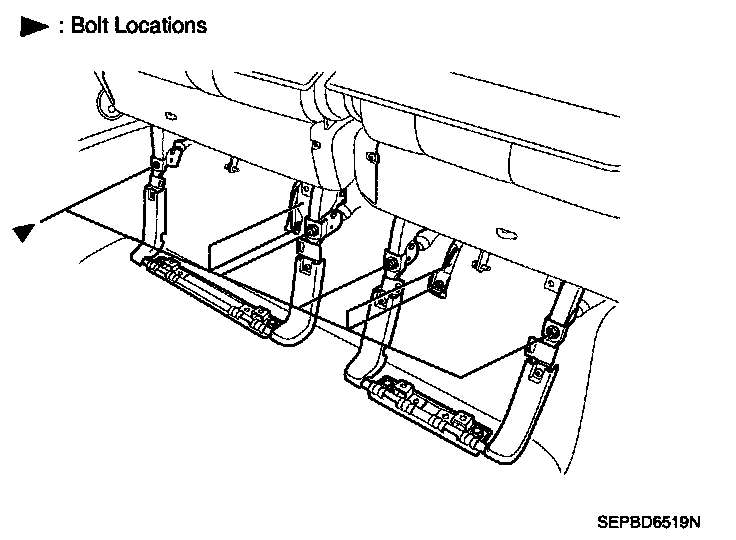

2. Loosen the mounting bolt.

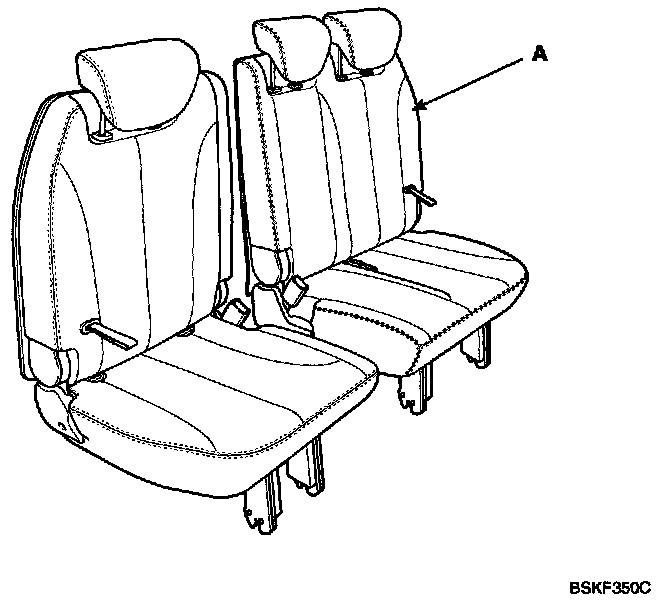

3. Remove the seat assembly (A).






4. installation is the reverse of removal.
