Front Door Weatherstrip: Service and Repair

DOOR WEATHERSTRIP REPLACEMENT

1. Loosen the checker mounting bolts.

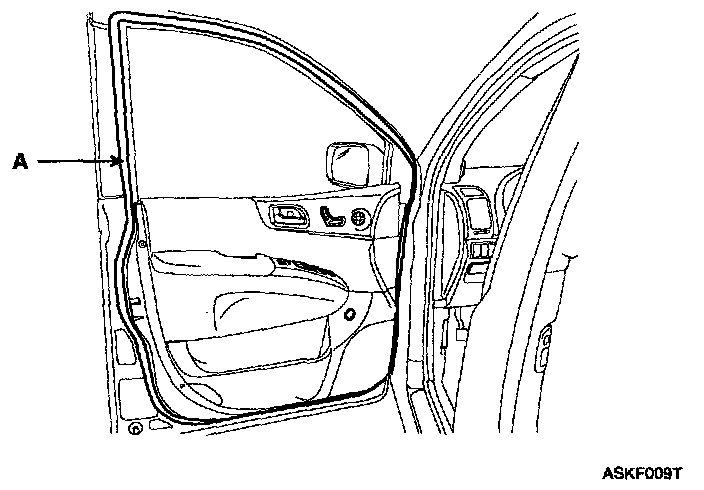

2. Release the clips then remove the door weatherstrip (A).






3. Installation is the reverse of removal.
