Brake Caliper: Service and Repair

REAR DISC BRAKE

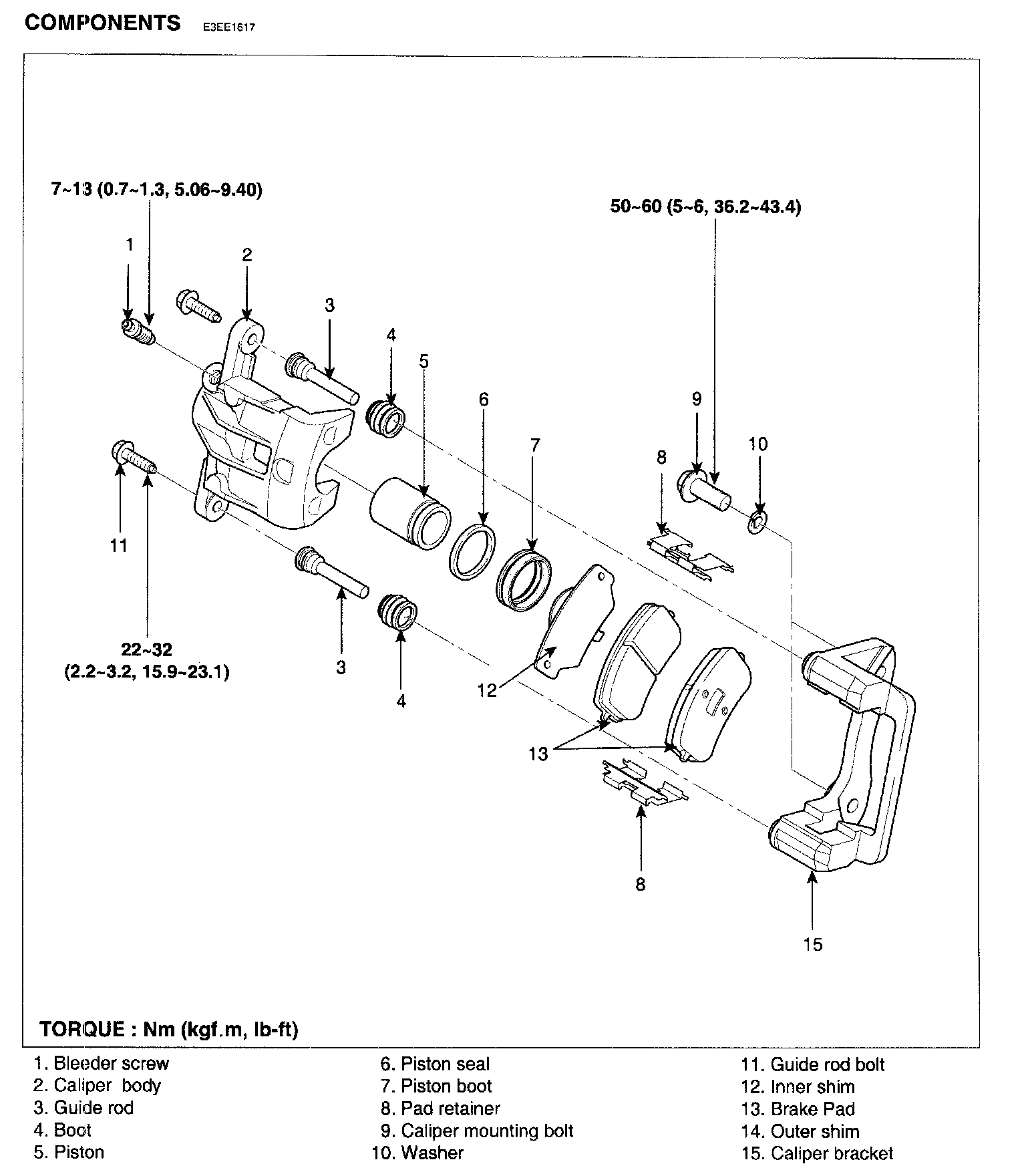

COMPONENTS:

REMOVAL
1. Raise the rear of the vehicle and make sure it is securely supported. Remove the rear wheel.

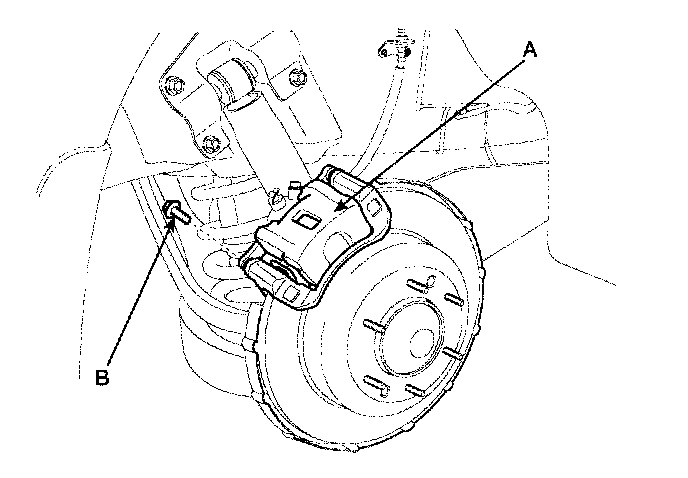

2. Remove the guide rod bolt(B), After raising the caliper assembly (A), support it with a wire.

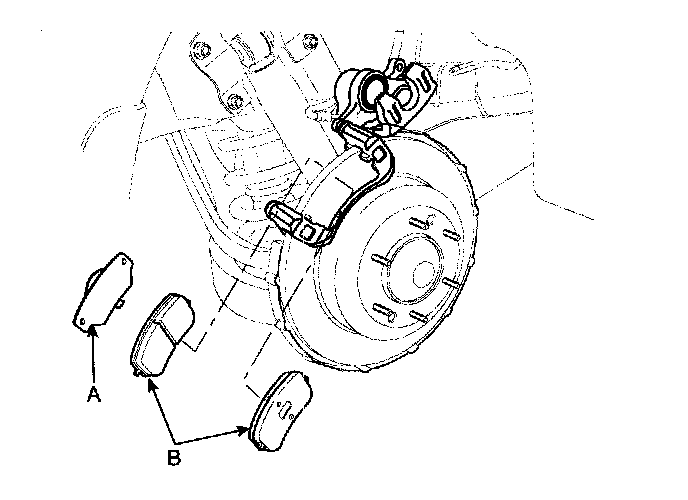

3. Remove pad shim (A), pad retainer (B) and pad assembly (C) in the caliper carrier.





INSTALLATION
1. Install the pad retainer (A) to the caliper carrier.

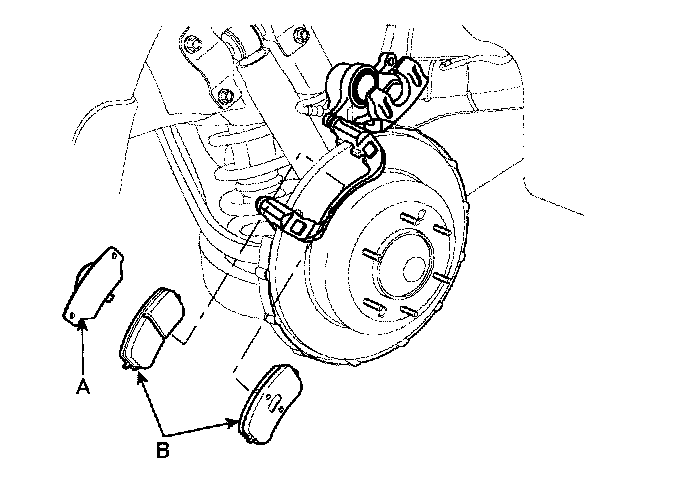

2. Install the brake pads (B) and pad shims (A) and Install the pad with the wear indicator (C) on the inside.





CAUTION: If you reuse the pads, check for foreign material between the pad shim (A) and the back of the pads (B) and reinstall the brake pads in their original position to prevent a momentary loss of braking efficiency.

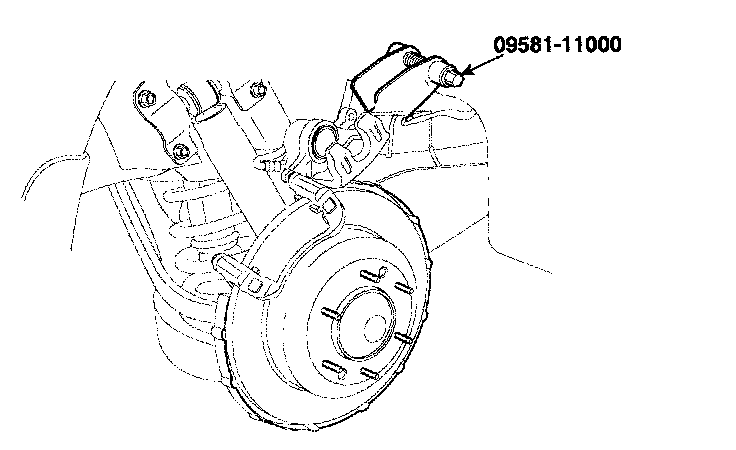

3. Press in the piston with the special tool (09581-11000).





4. Grease the piston boot to prevent from twisting.
5. Install the guide rod.
6. Install the cylinder assembly (A) to the disc plate.

CAUTION: Be careful not to damage the piston boot.

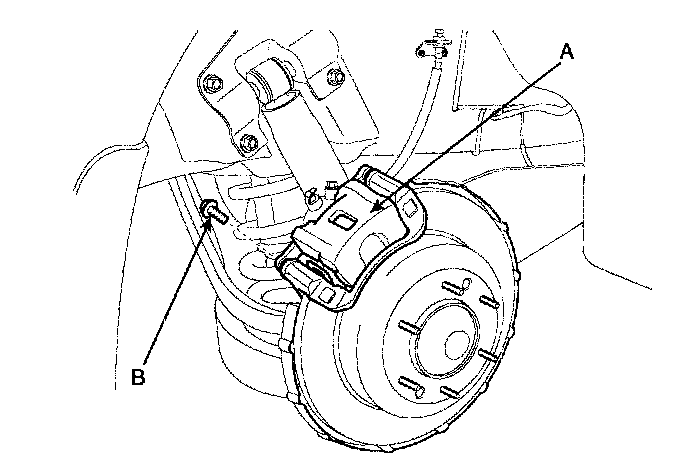

7. Install the guide rod bolt (B).
Tightening torque Nm(kgf.m,lb-ft): 22 - 32 (2.2 - 3.2, 15.9 - 23.1)
