Control Harness/ Battery Harness
Control Harness/ Battery Harness

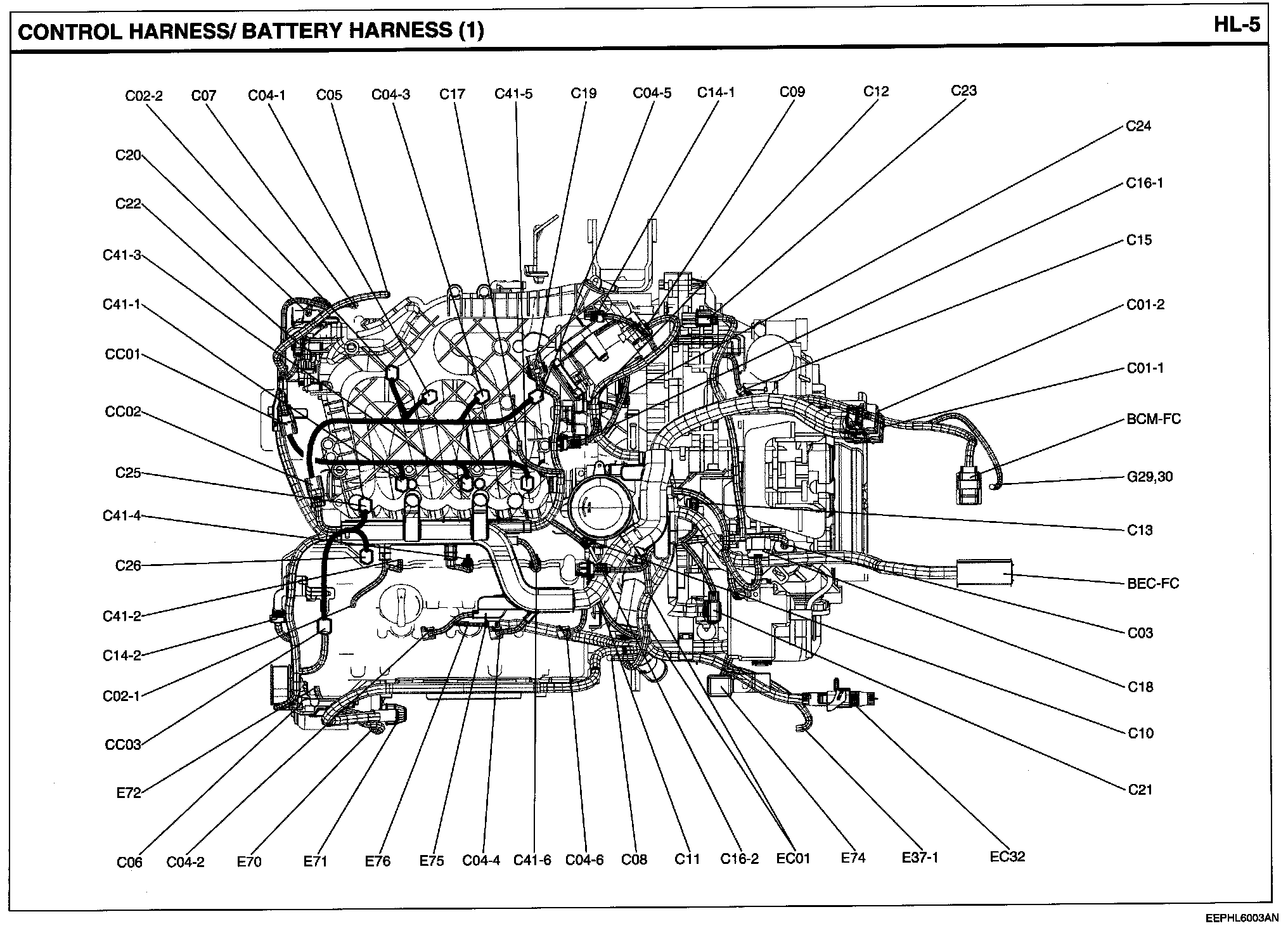

Control Harness / Battery Harness (1):

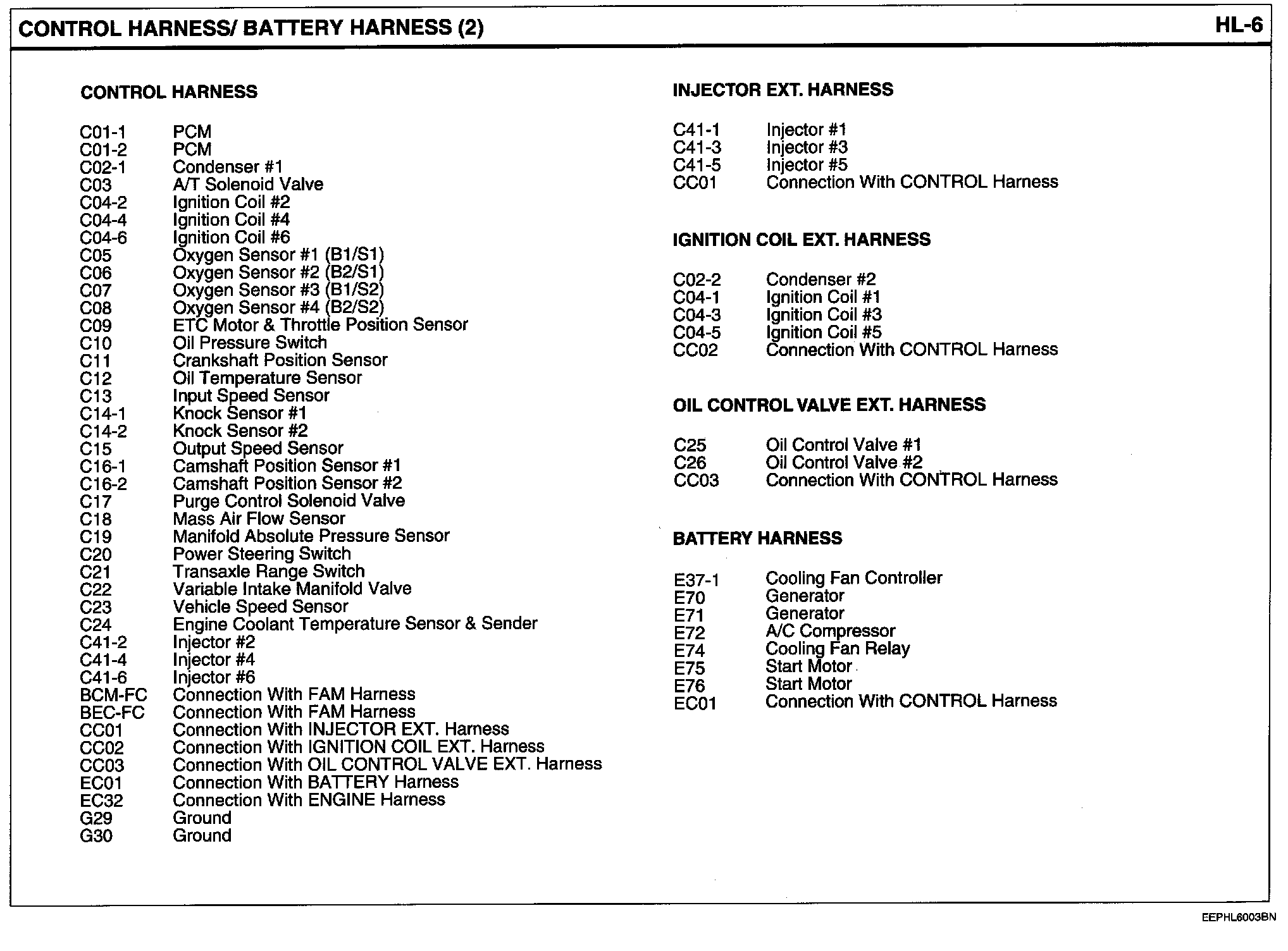

Control Harness / Battery Harness (2):
