Front Power Mosfet
POWER MOSFETREPLACEMENT
1. Disconnect the negative (-) battery terminal.

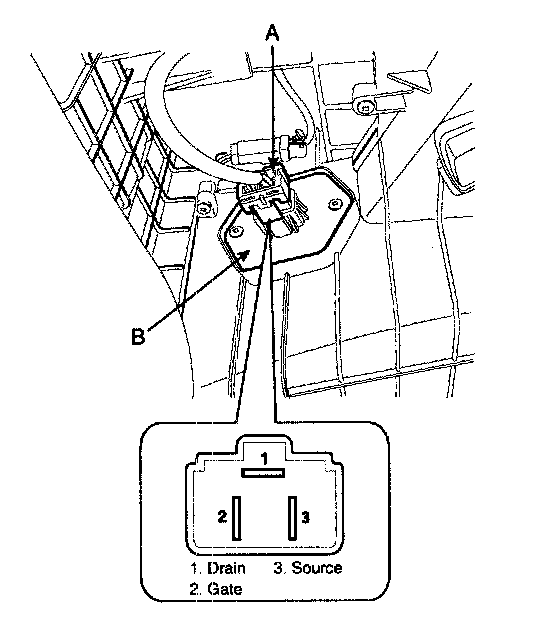

2. Disconnect the power mosfet connector (A) at the connecting part between heater and blower unit.
3. Remove the plower mosfet (B) after loosening the mounting screws.
4. Installation is the reverse order of removal.
