Rear Power Mosfet
REAR POWER MOSFETREPLACEMENT
1. Disconnect the negative (-) battery terminal
2. Remove the luggage side trim.

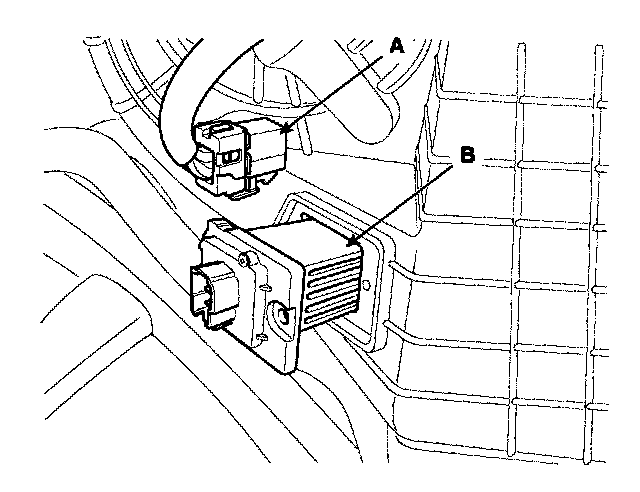

3. Disconnect the power mosfet connector (A).
4. Remove the power mosfet (B) after loosening the mounting screws.
REPLACEMENT
1. Disconnect the negative (-) battery terminal
2. Remove the luggage side trim.
3. Disconnect the power mosfet connector (A).
4. Remove the power mosfet (B) after loosening the mounting screws.
