Auxiliary Blower Motor: Service and Repair

REAR HEATER BLOWER UNIT

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

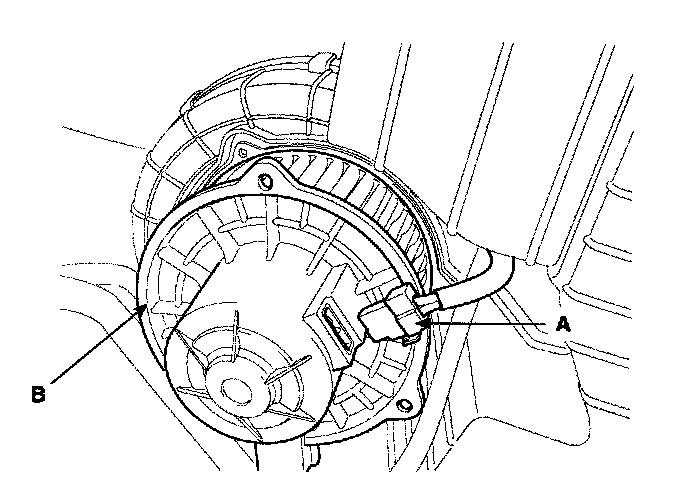

2. Disconnect the connector (A) of the blower motor.




3. Remove the blower motor (B) after loosening the mounting screws.
4. Installation is the reverse order of removal.
