Blower and A/C Controls (Manual)

BLOWER AND A/C CONTROLS (MANUAL)

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the center air vent.

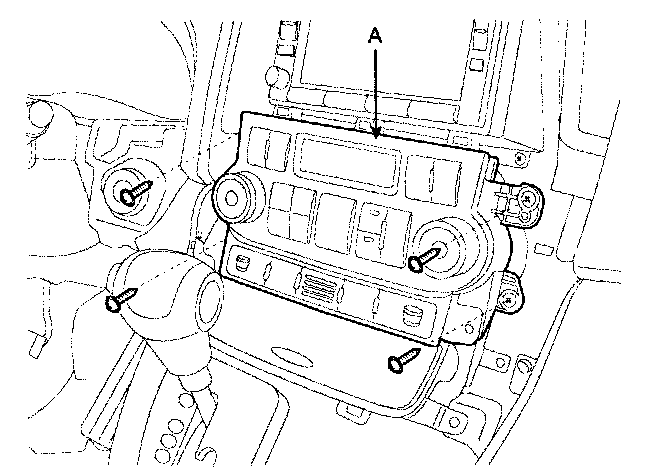

3. Remove the heater & A/C controller (A) after loosening 4 screws.

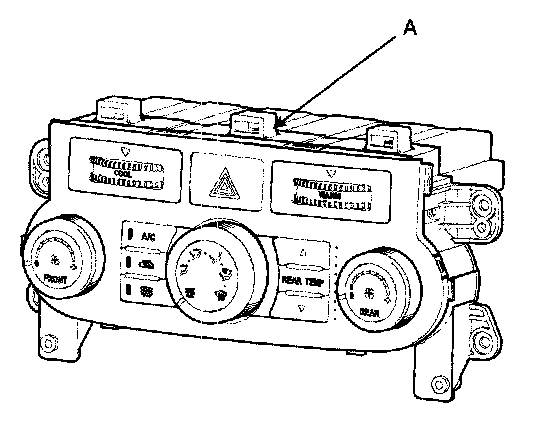

4. Remove the heater & A/C controller (A).
5. Installation is the reverse order of removal.
