Rear Heater Control Unit Replacement

REAR HEATER CONTROL UNIT REPLACEMENT

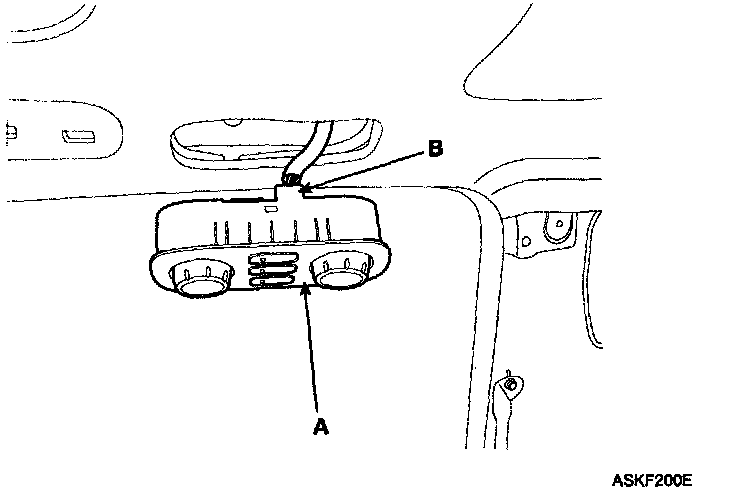

1. Remove the rear heater control unit (A).
2. Disconnect the connector (B).






3. Installation is the reverse of removal.
