Heating and Air Conditioning: Specifications

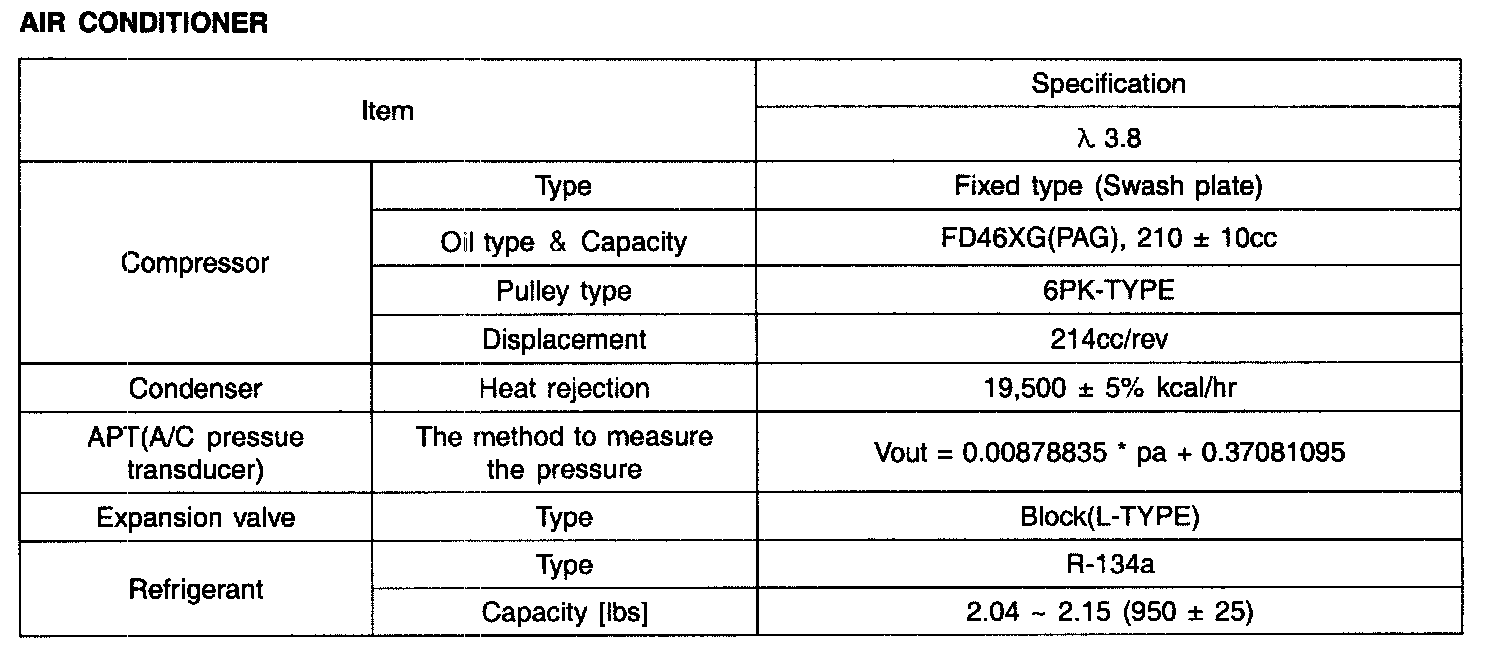

Specification - Air Conditioner:

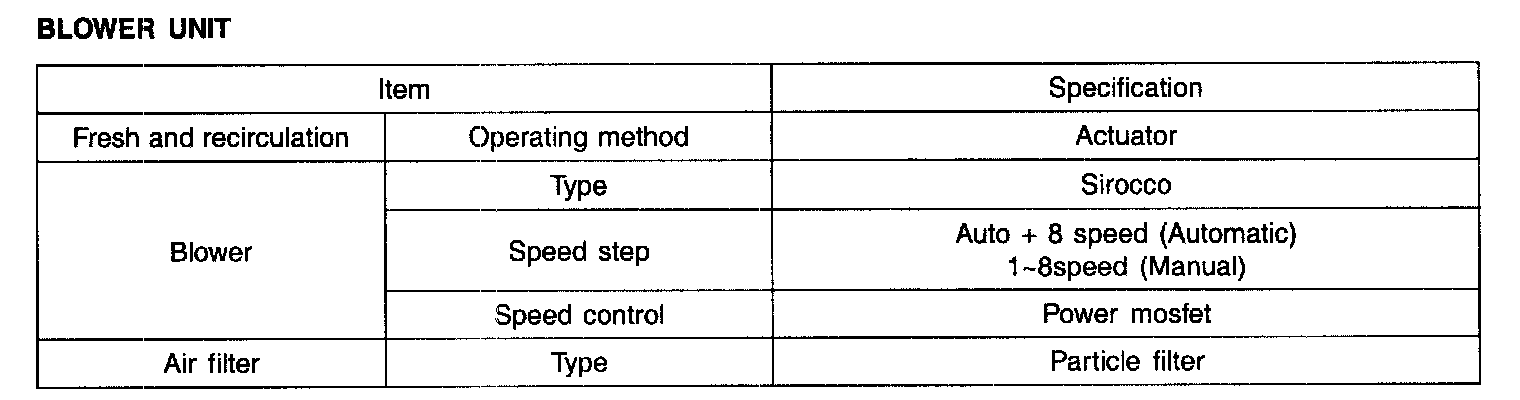

Specification - Blower Unit:

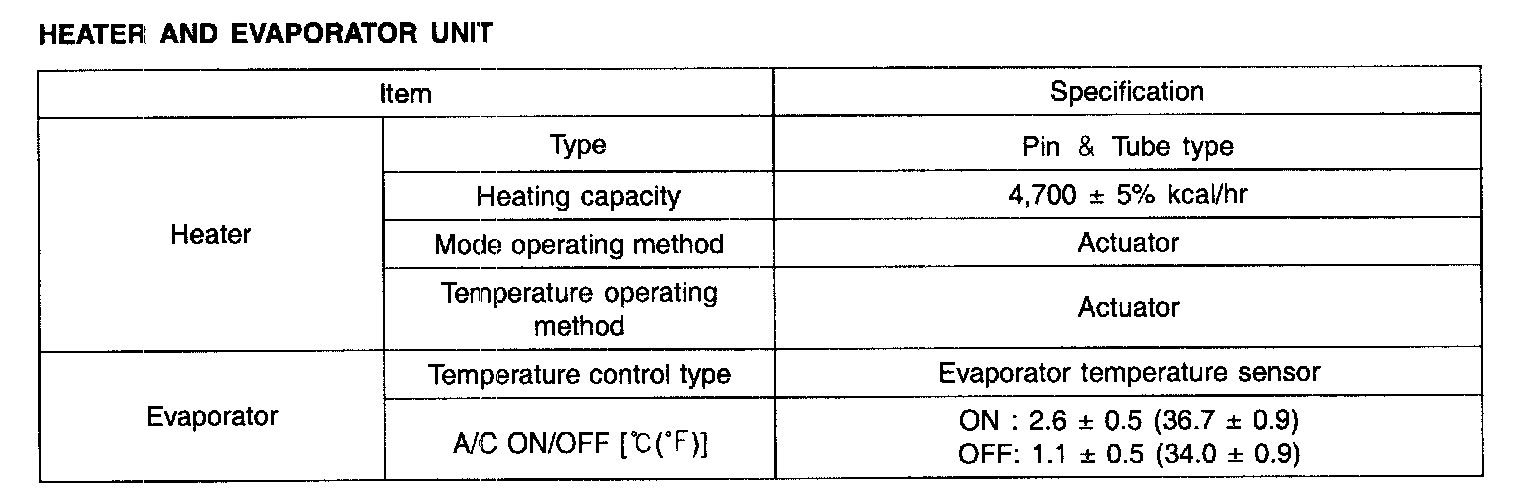

Specification - Heater And Evaporator Unit:
