Brake Lamp: Service and Repair

STOP LAMPS

REPLACEMENT

HIGH MOUNTED STOP LAMP
1. Disconnect the negative (-) battery terminal.

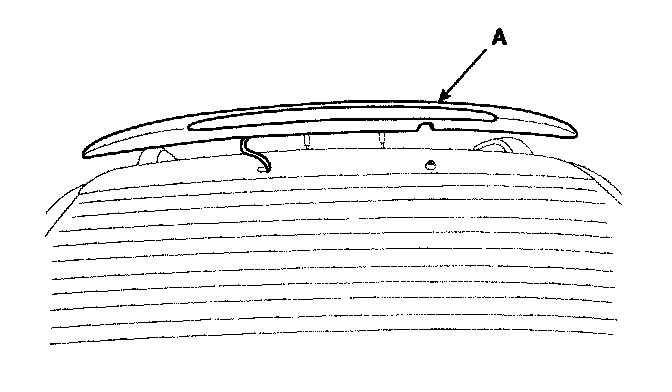

2. Open the tail gate and remove the spoiler.

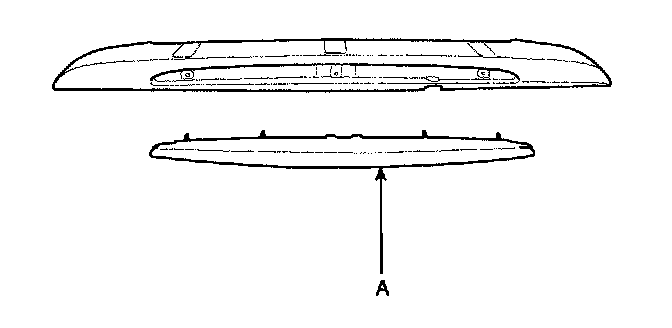

3. Remove mounting nuts (4EA). And then remove the high mounted stop lamp (A).
4. Installation is the reverse of removal.
