Headlamp: Service and Repair

HEAD LAMPS

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

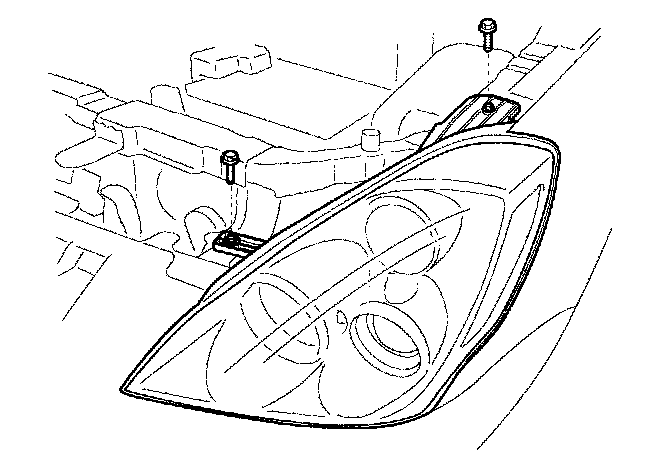

2. Loose the mounting bolts (2EA).




3. Remove the head lamp assembly after disconnecting the lamp connectors.

NOTE: Take care that holding clip (A) is not to be damaged.

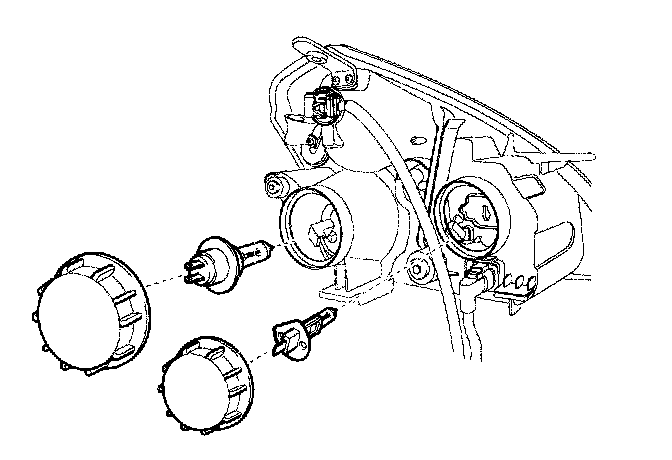

4. Remove the head lamp rear cover and pulling up head lamp bulb fixing wire clip.
5. Replace the bulb.
6. Installation is the reverse of removal.
