Combination Switch: Service and Repair

MULTI FUNCTION SWITCH

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

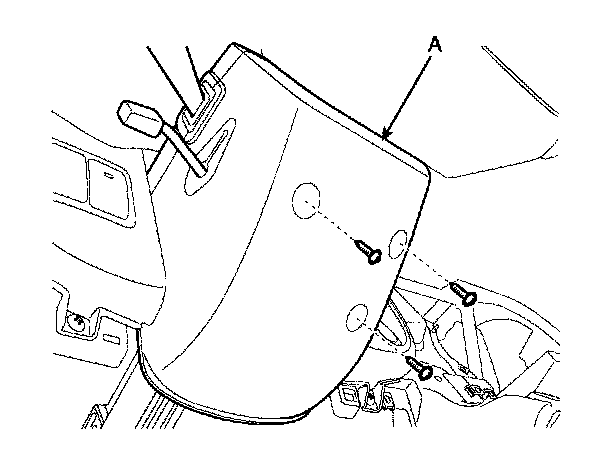

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

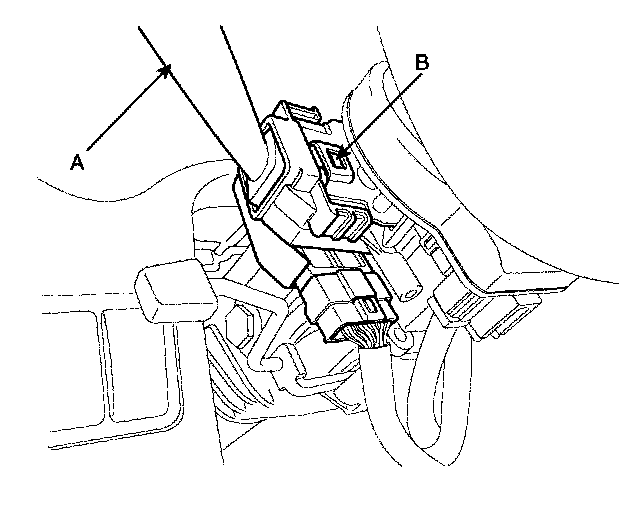

3. Disconnect the light switch (A) connector and pin (B).

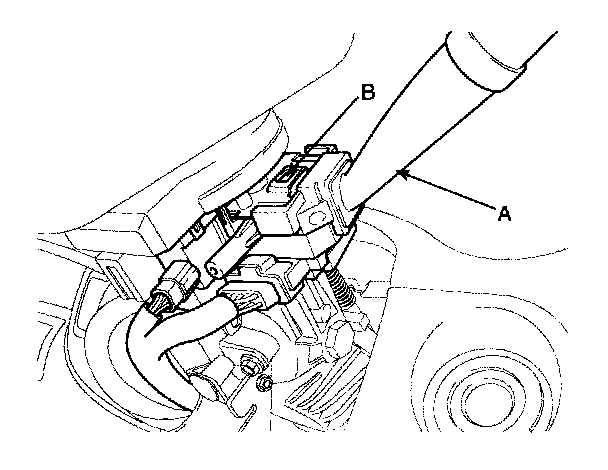

4. Remove the wiper switch (A) after disconnecting the connector and pin (B).
5. Installation is the reverse of removal.
