Oil Filter: Service and Repair

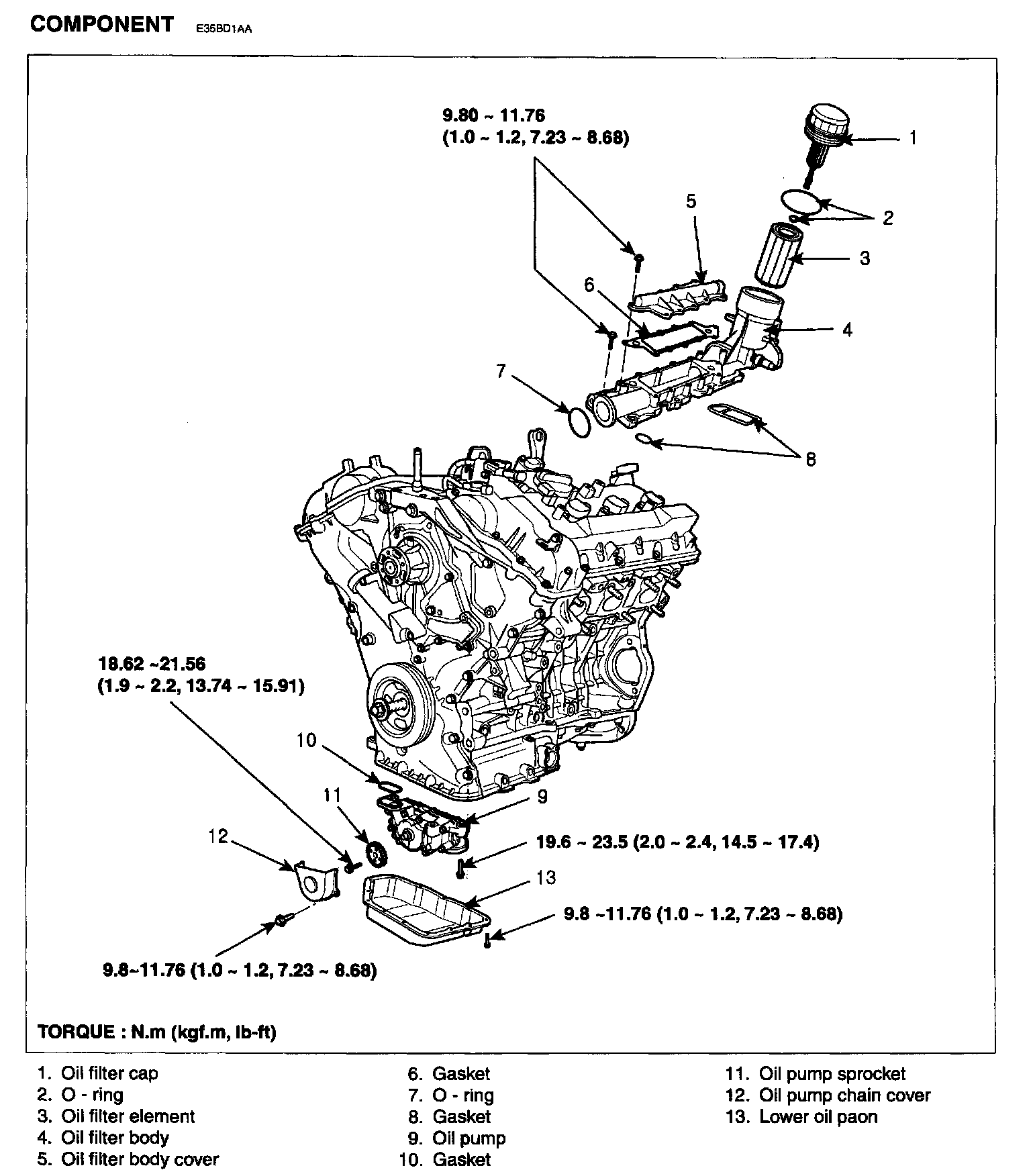

OIL FILTER ASSEMBLYCOMPONENT:
REMOVAL
1. Loosen the oil filter cap by turning it counter clockwise with SST (09263-3C100). Allow 5 minutes for the oil in the filter assembly to drain.
2. Remove surge tank and intake manifold.
3. Disconnect oil pressure switch connector.
4. Drain the engine coolant.
5. Disconnect water hoses from ETC.
6. Remove water temperature control assembly.
7. Disconnect water vent hose(A).

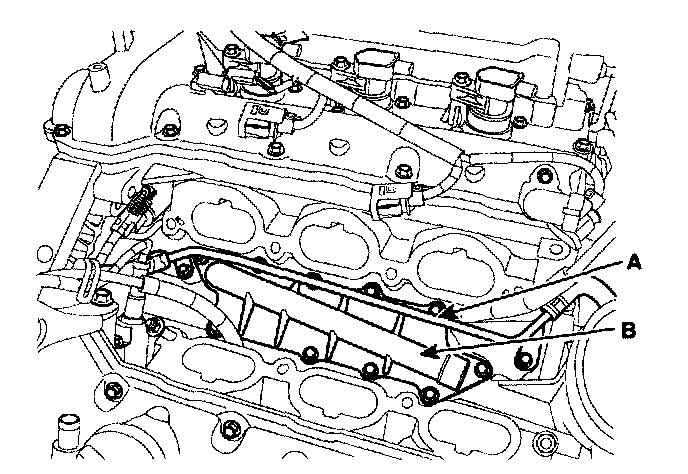

8. Remove oil filter body cover(B).
9. Remove oil filter body.
NOTE: Be careful of the knock sensor connector.
INSTALLATION
1. Install oil filter body and new O-rings.

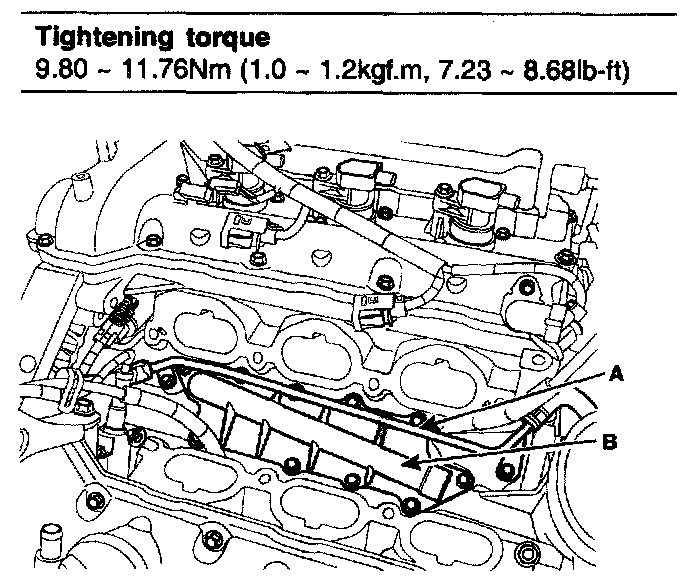

Tightening torque 9.80 - 11.76Nm (1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
NOTE:
^ All rubber gasket must be no damaged by assembling parts.
^ Be careful of the knock sensor connector.
^ Always use a new O-ring
2. Install oil filter body cover(B) and new gasket on the oil filter body.
3. Connect water vent hose(A)
Tightening torque 9.80 - 11.76Nm (1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
4. Install water temperature control assembly.
5. Connect water hoses on the ETC.
6. Connect oil pressure switch connector.
7. Install intake manifold and surge tank.
8. Fill with engine coolant.
9. Start engine and check for leaks.
10. Recheck engine coolant level.
