Power Steering Line/Hose: Service and Repair

POWER STEERING HOSES

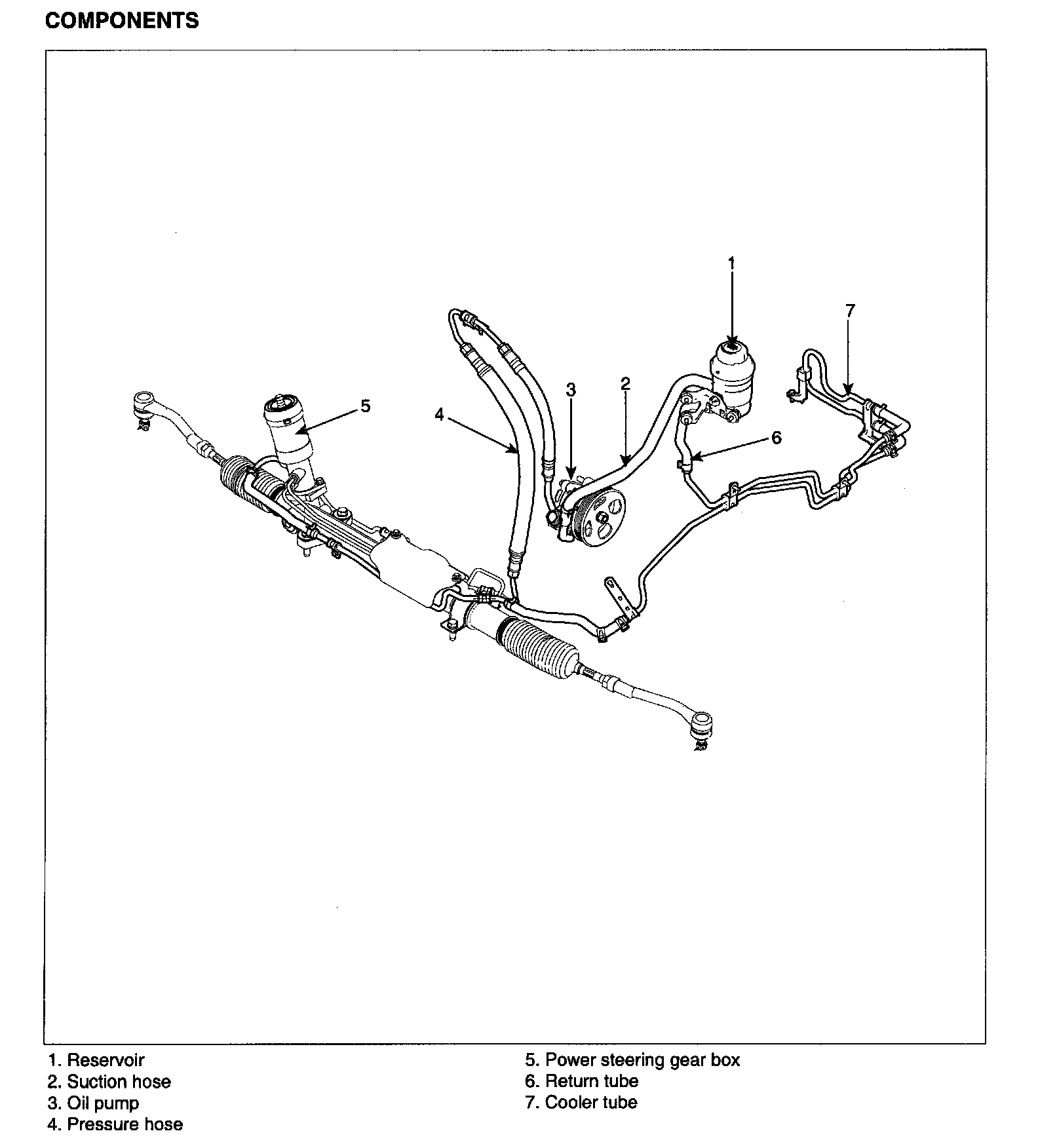

COMPONENTS:

REPLACEMENT
1. Drain the power steering fluid.

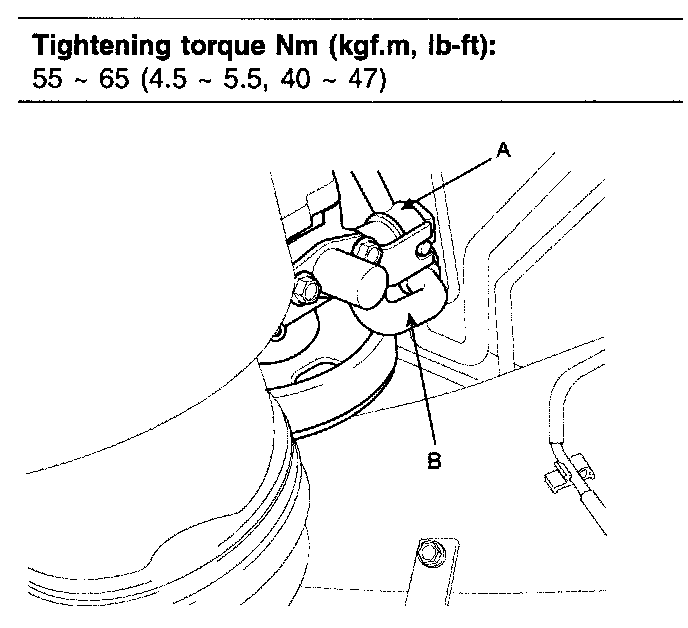

2. Disconnect the pressure tube (A) and suction tube (B) from the power steering oil pump.

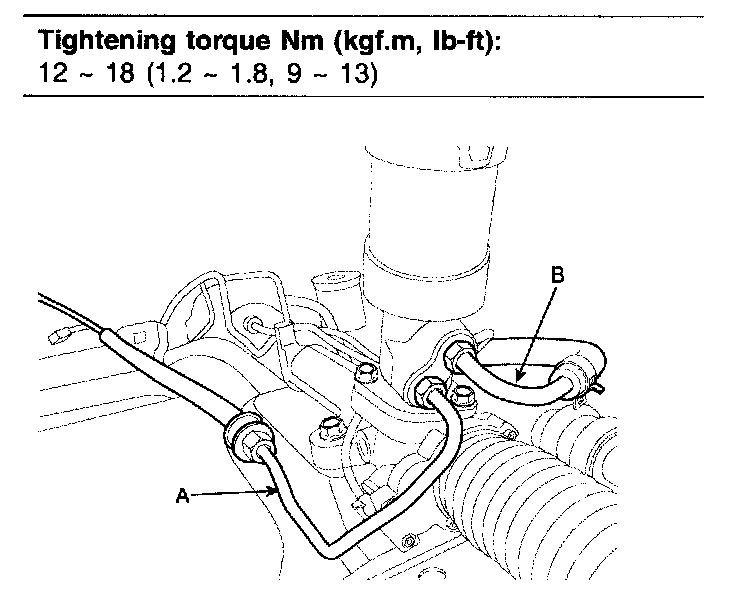

3. Disconnect the pressure tube (A) and return tube (B) from the valve body housing.

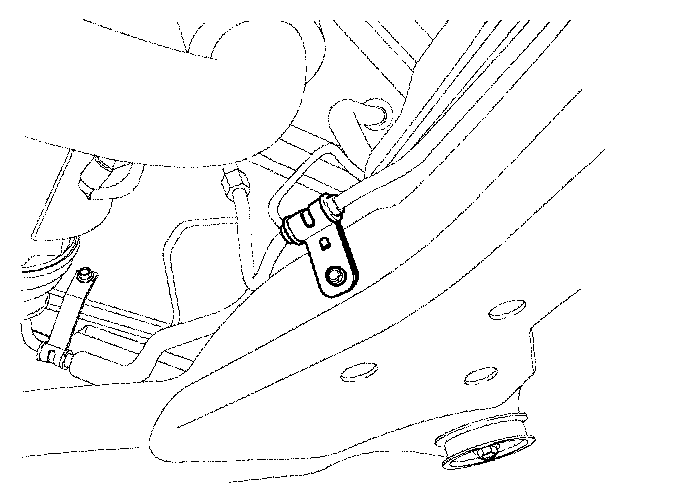

4. Remove the brackets of the pressure tube and hose from the sub-frame.

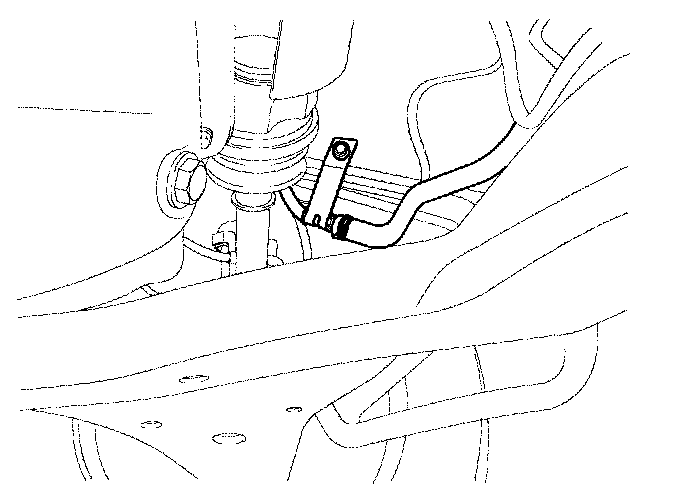

5. Remove the bracket of the return tube and hose.





6. Remove the under cover and then loosen the oil cooler tube bracket bolts.

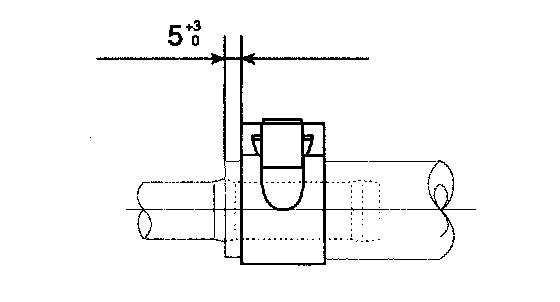

NOTE: Be sure to connect between a tube and a hose as shown in the illustration.





7. Installation is the reverse of removal.
8. After installation, bleed the power steering system.
