Pinout Values and Diagnostic Parameters

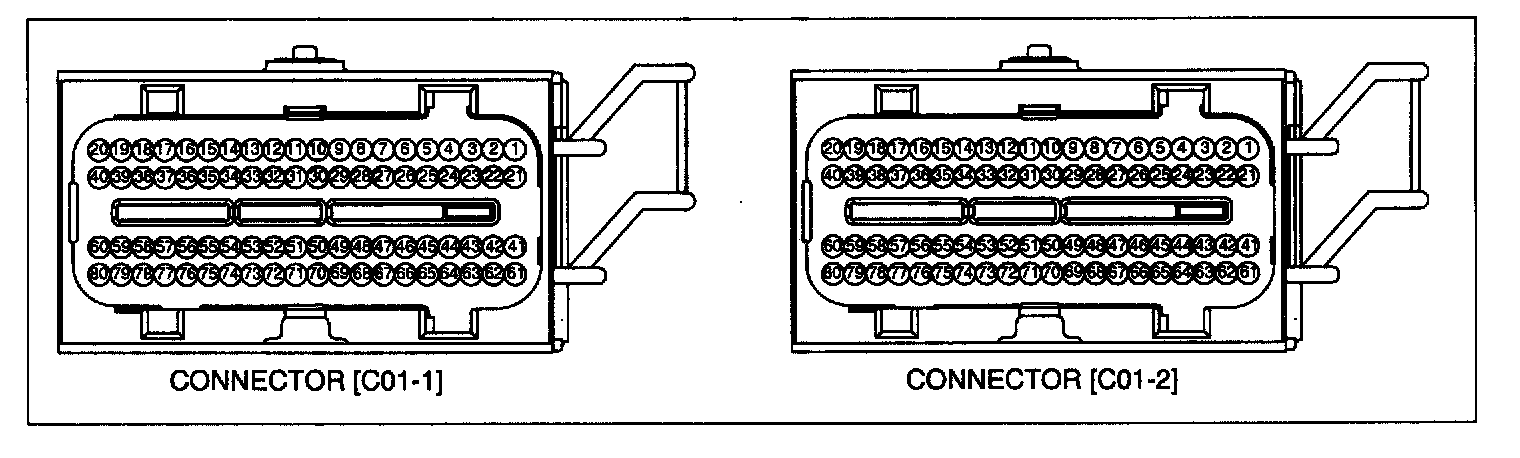

PCM HARNESS CONNECTOR

PCM Terminal Function - Connector (C01-1) Part 1:

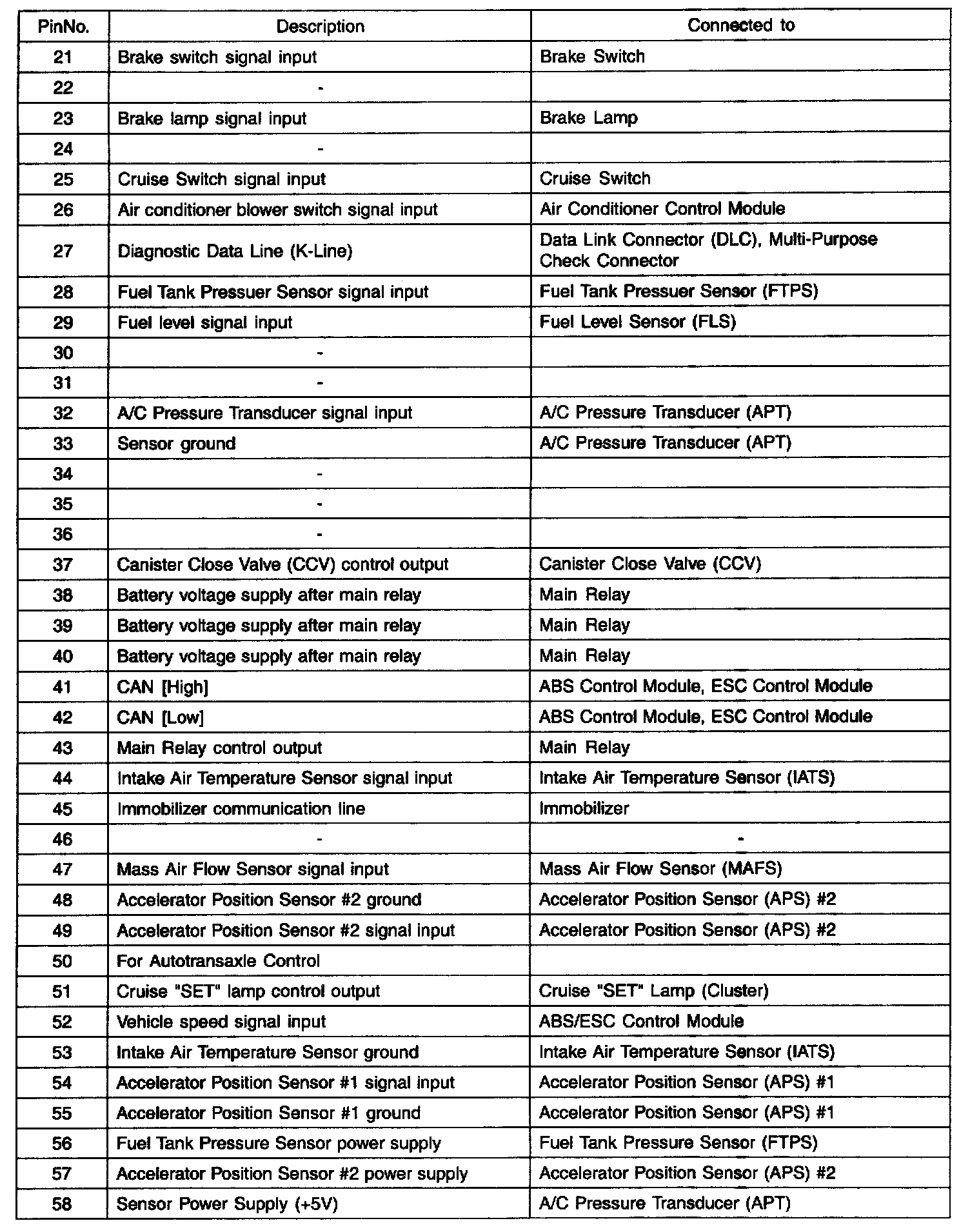

PCM Terminal Function - Connector (C01-1) Part 2:

PCM Terminal Function - Connector (C01-1) Part 3:

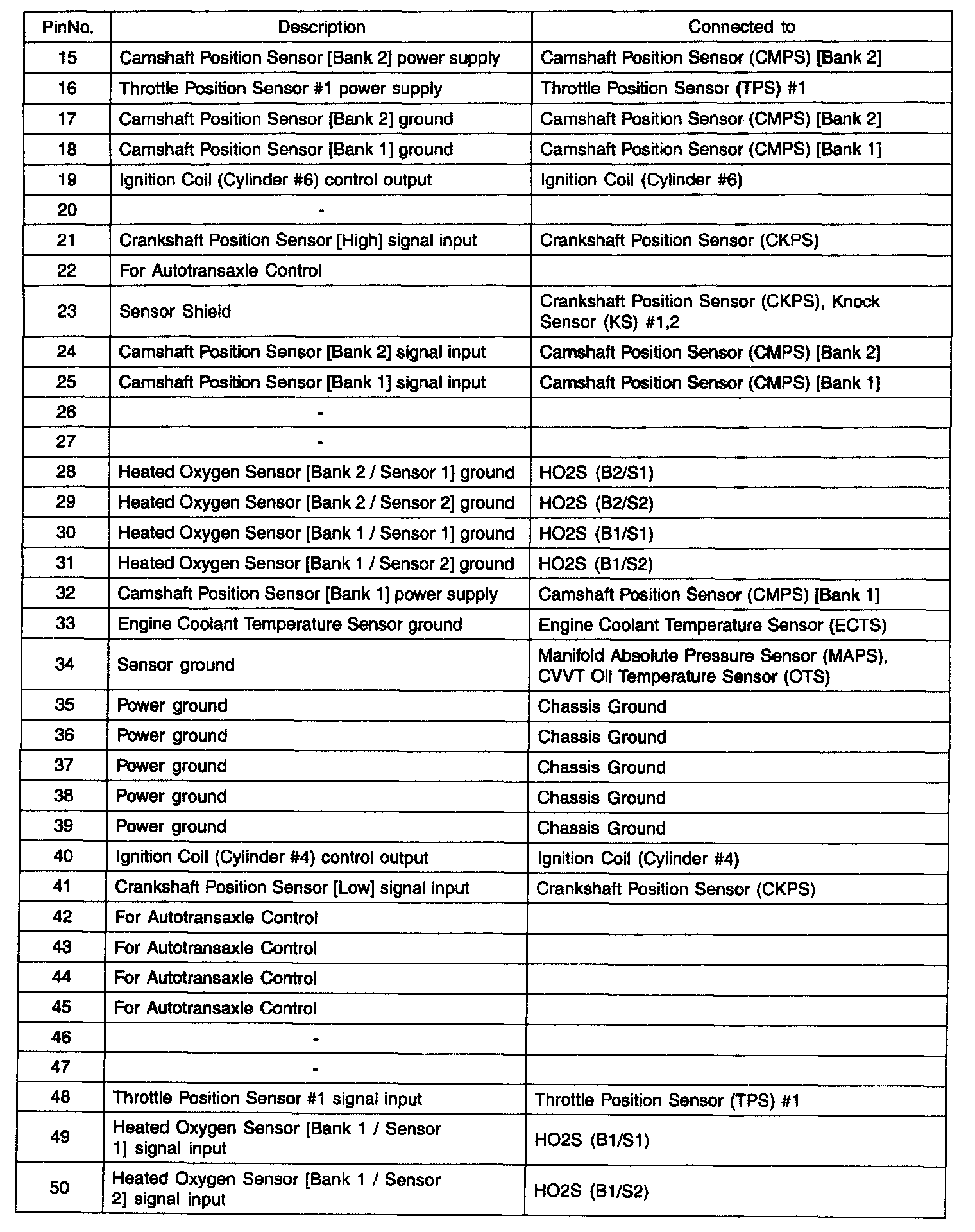

PCM TERMINAL FUNCTION - CONNECTOR [C01-1]

PCM Terminal Function - Connector (C01-2) Part 1:

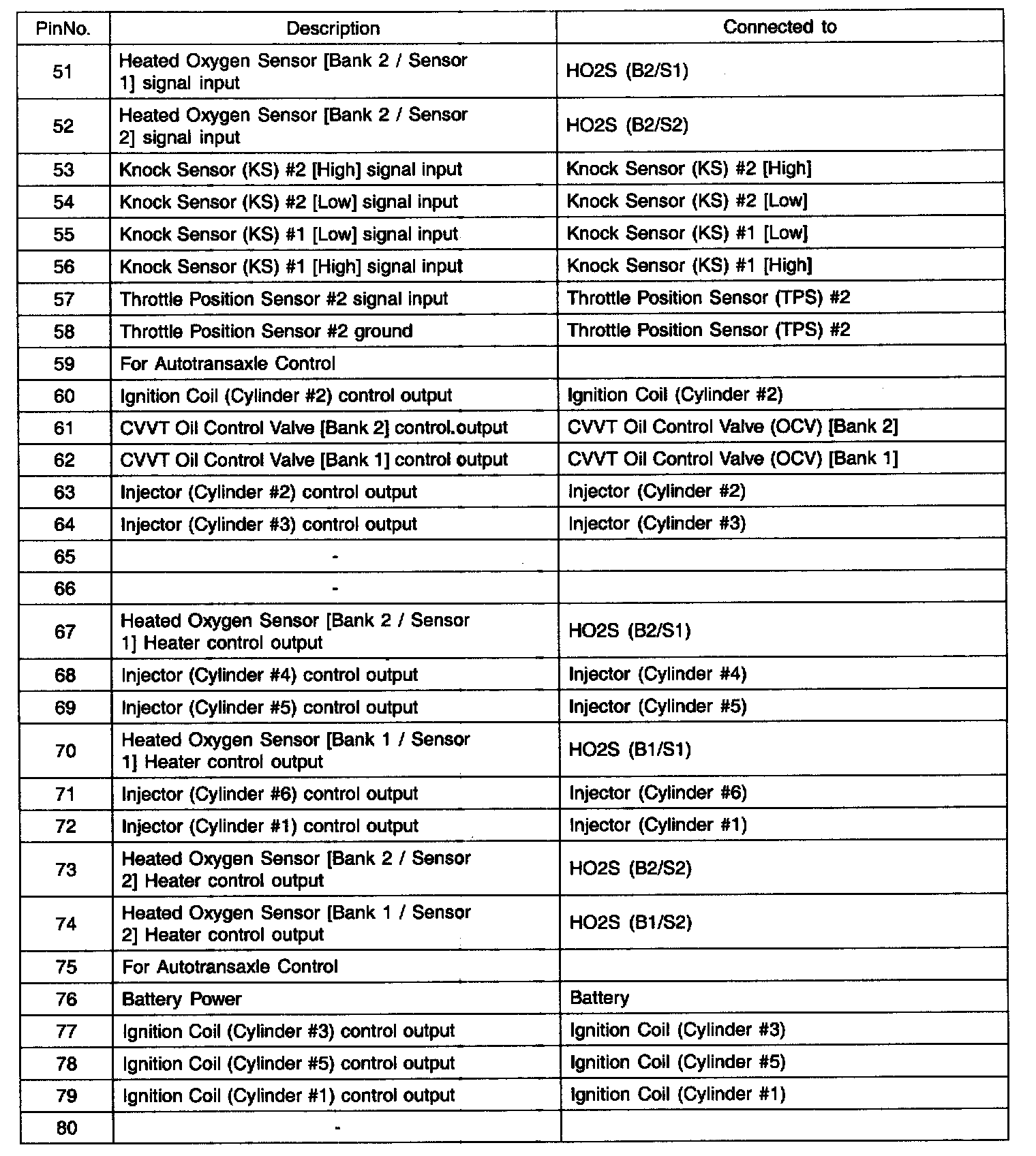

PCM Terminal Function - Connector (C01-2) Part 2:

PCM Terminal Function - Connector (C01-2) Part 3:

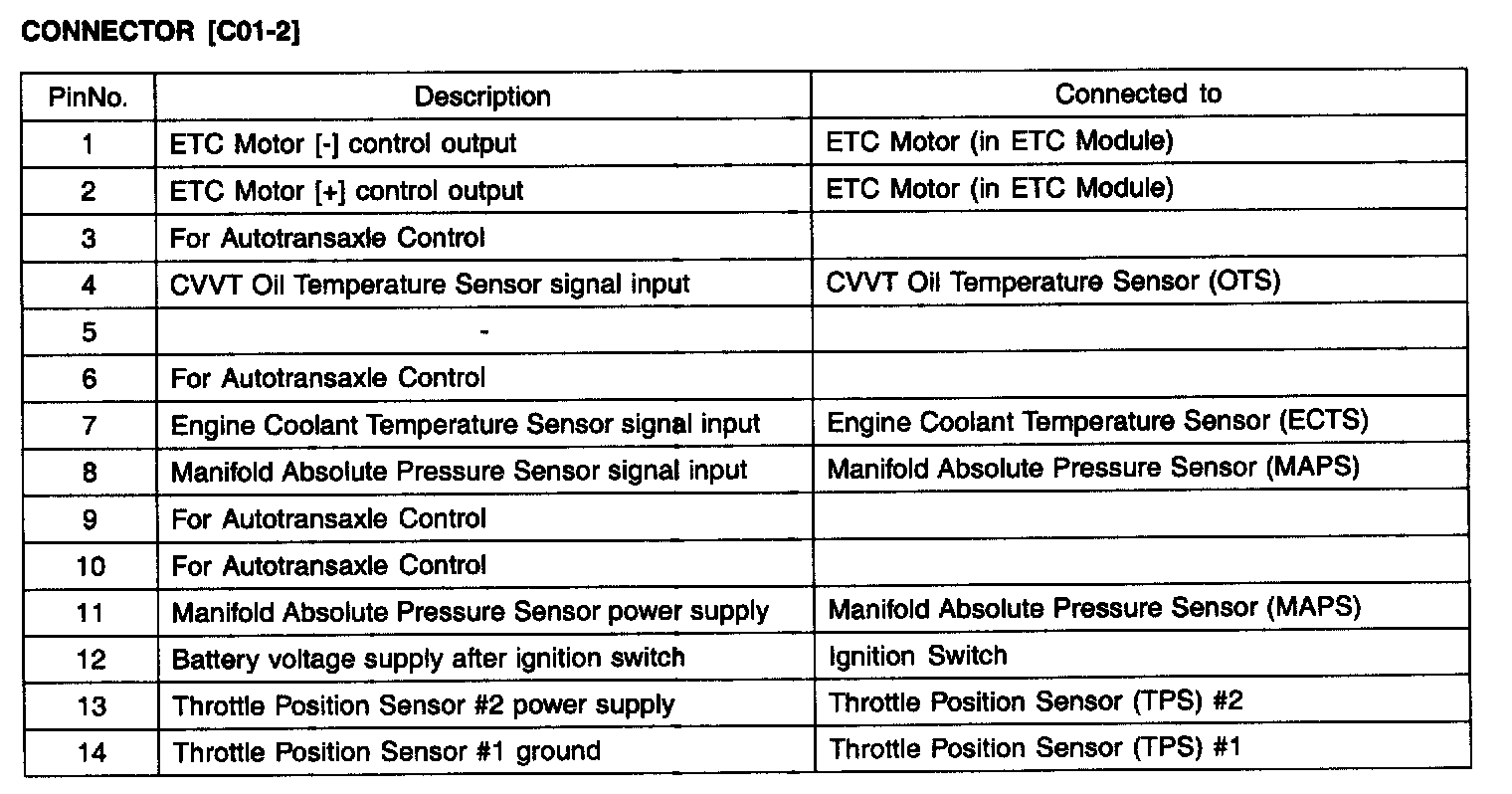

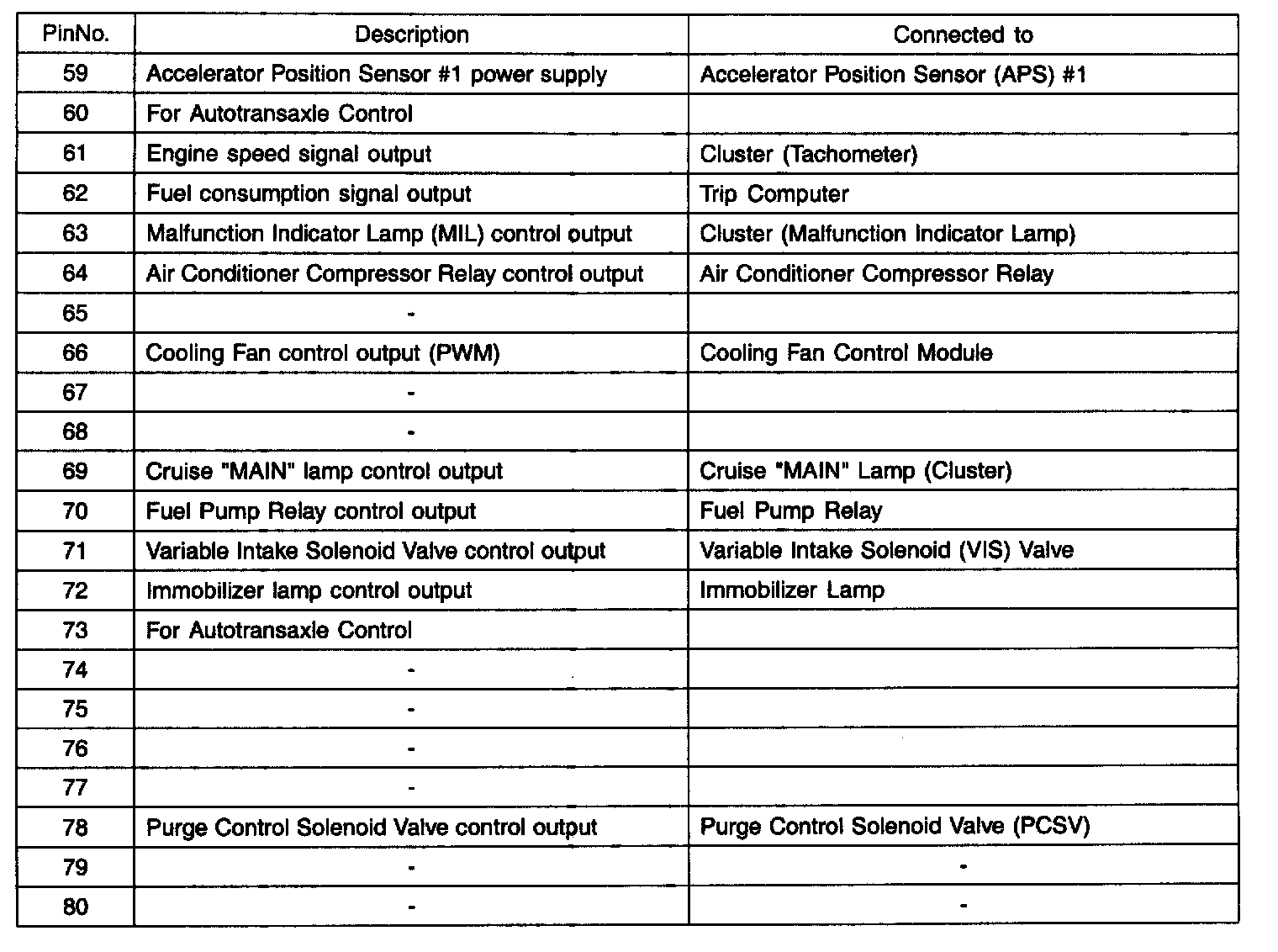

PCM TERMINAL FUNCTION - CONNECTOR [C01-2]

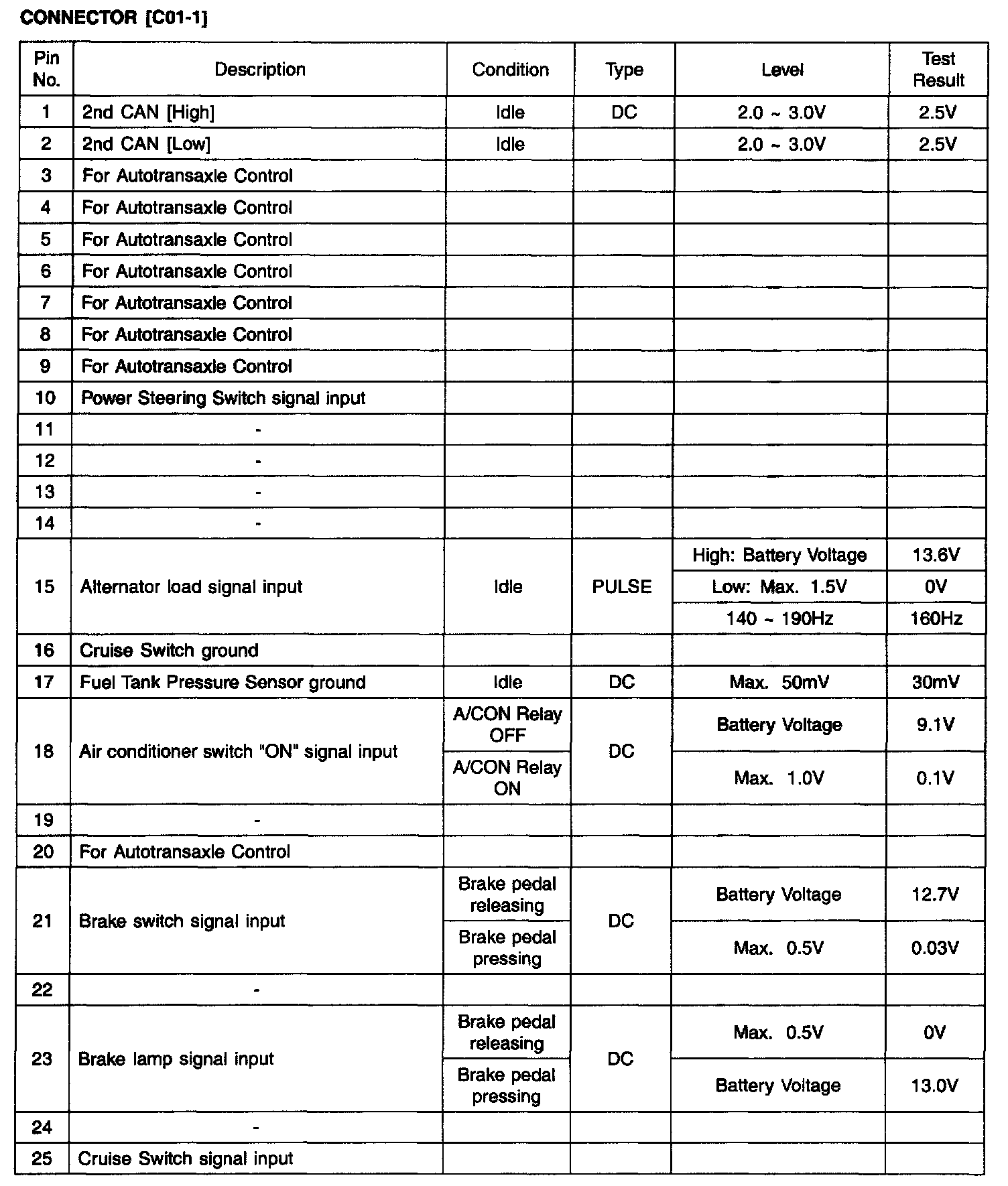

PCM Terminal Input/Output Signal - Connector (C01-1) Part 1:

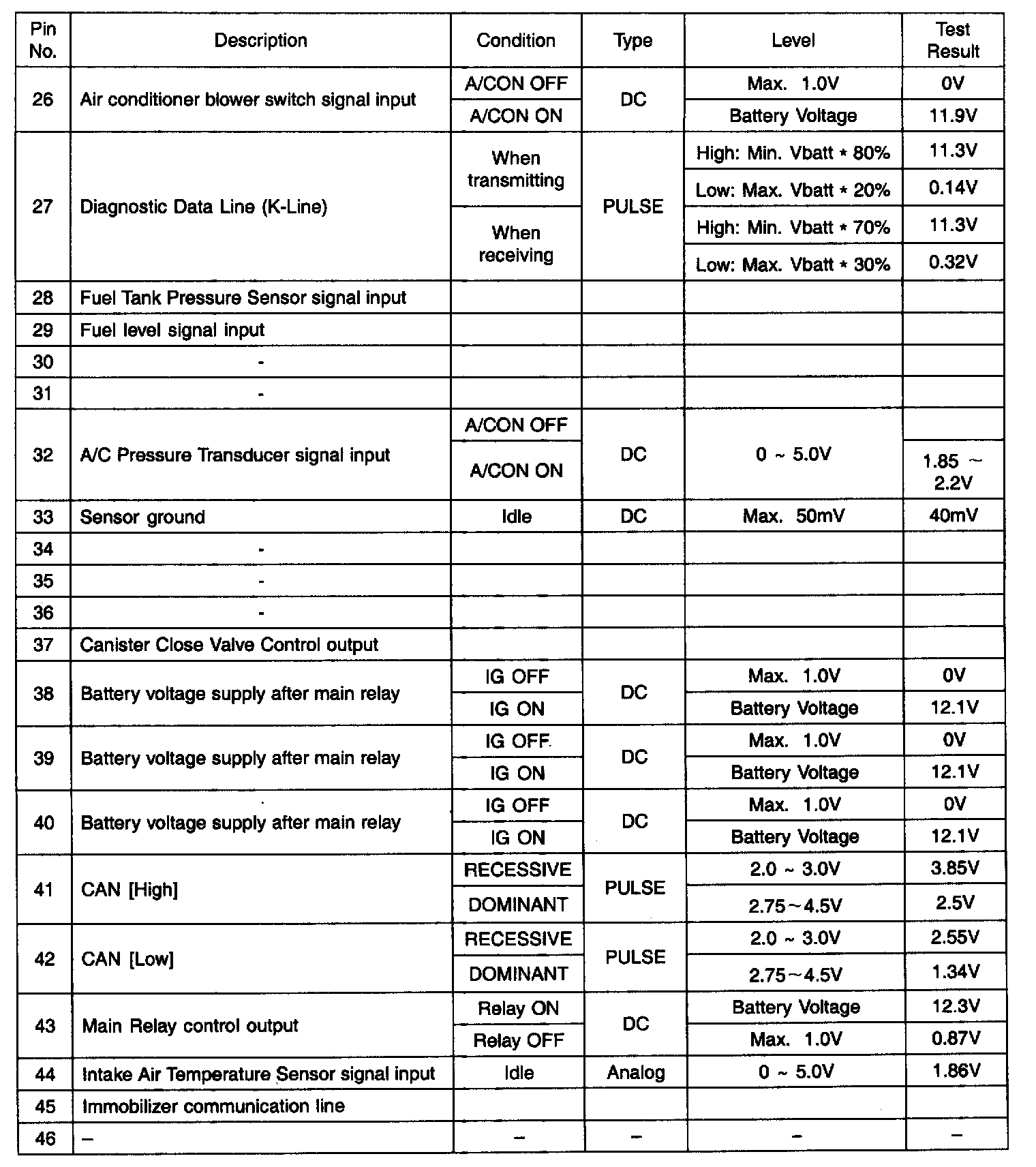

PCM Terminal Input/Output Signal - Connector (C01-1) Part 2:

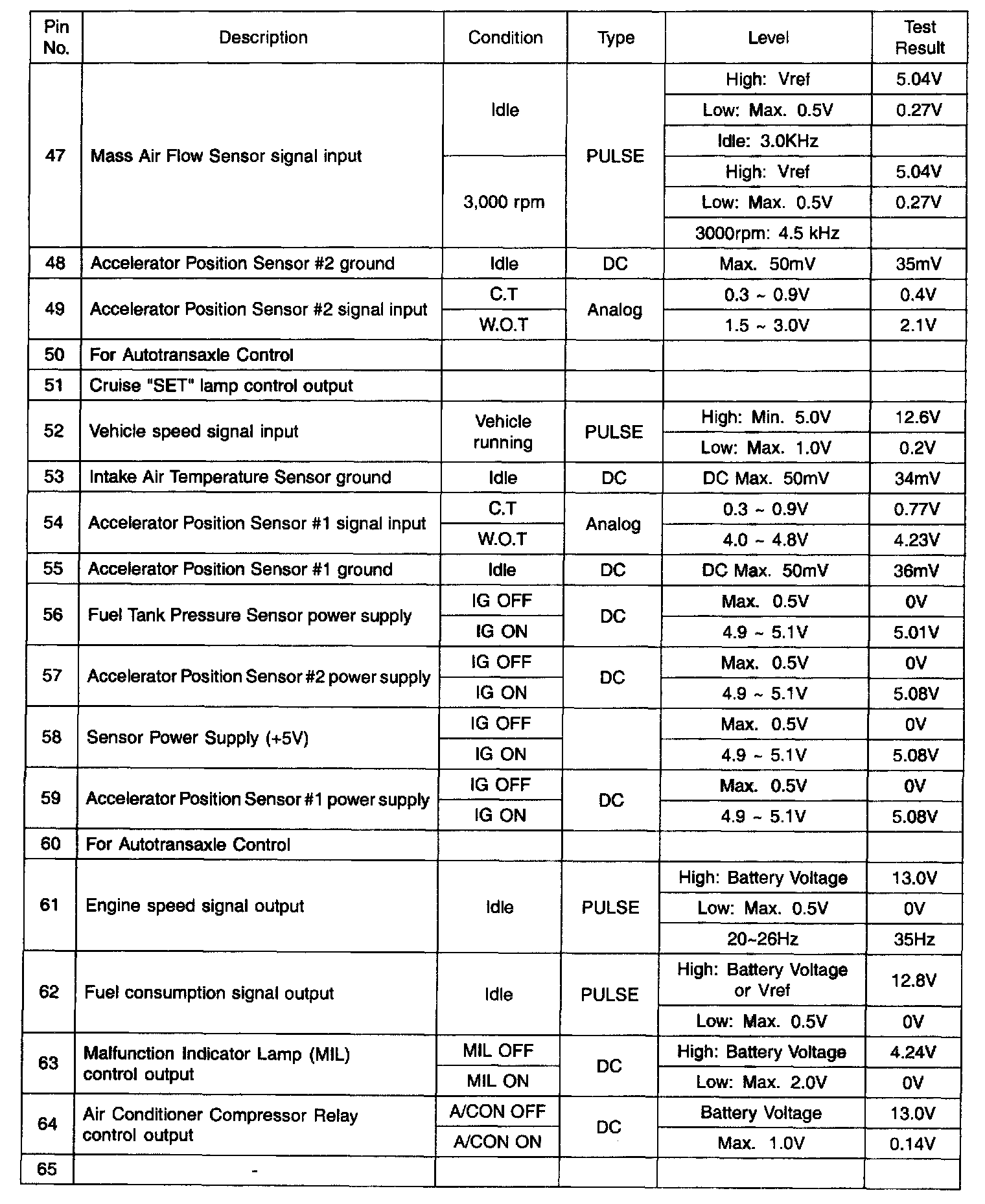

PCM Terminal Input/Output Signal - Connector (C01-1) Part 3:

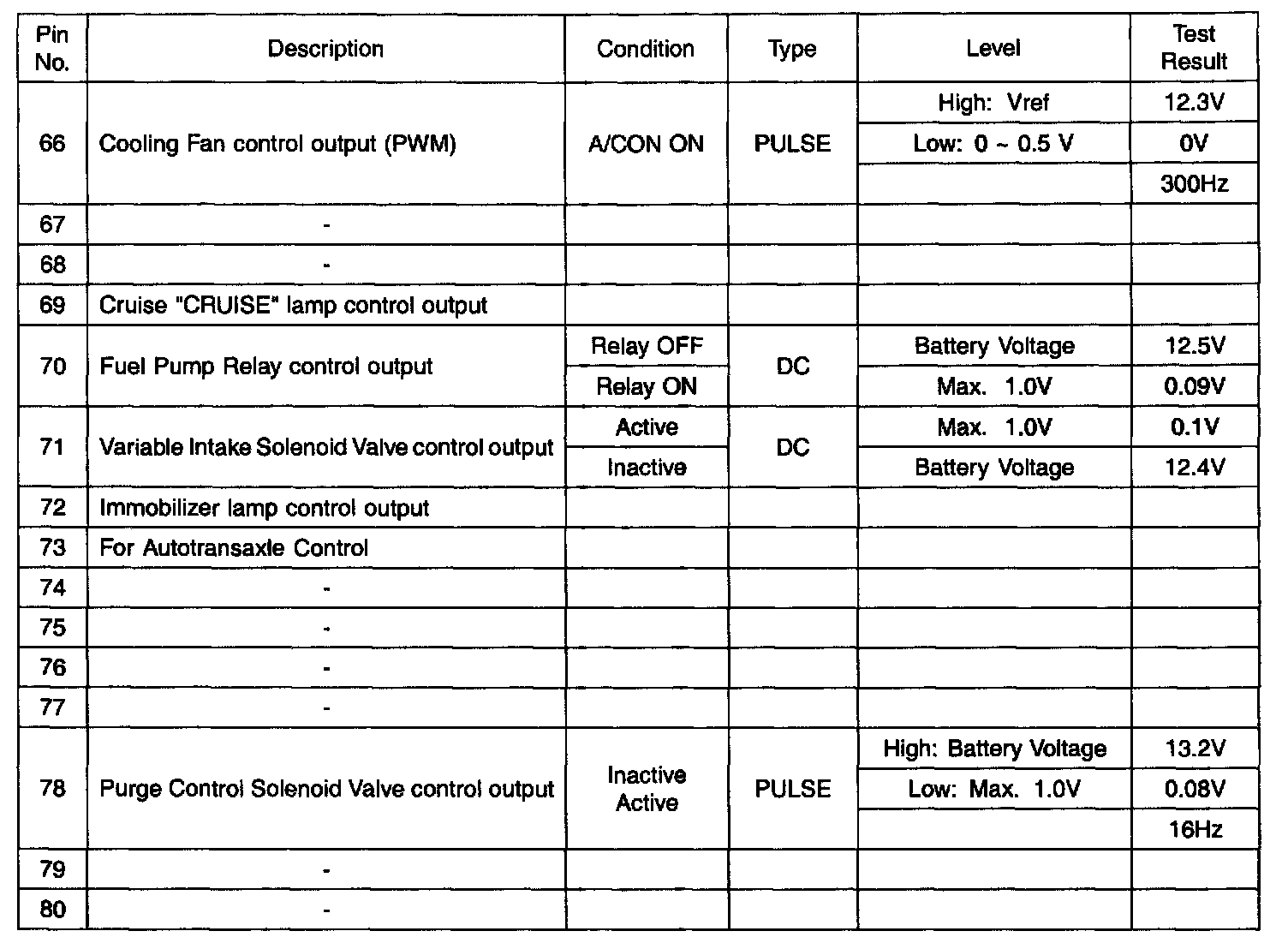

PCM Terminal Input/Output Signal - Connector (C01-1) Part 4:

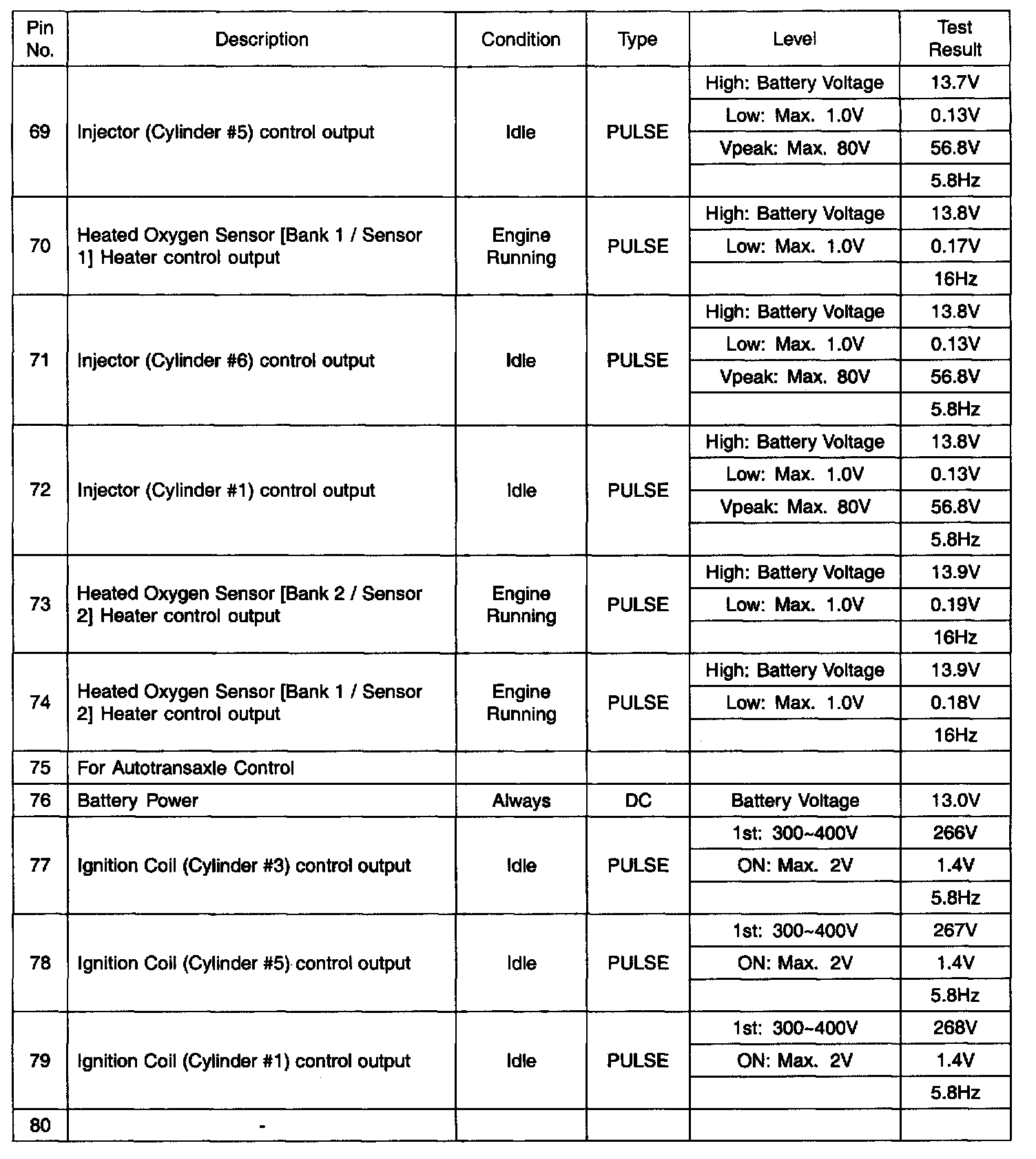

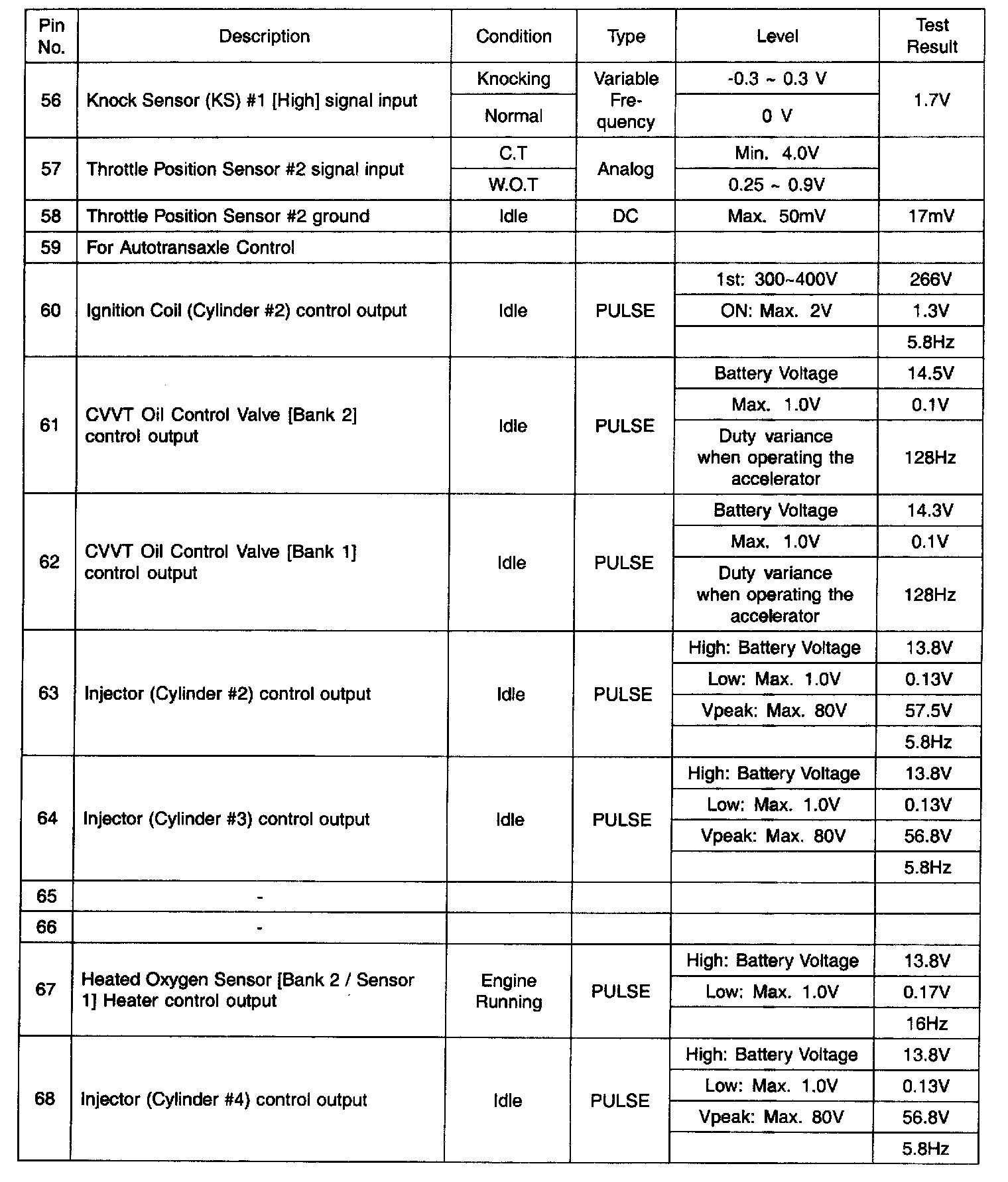

PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-1]

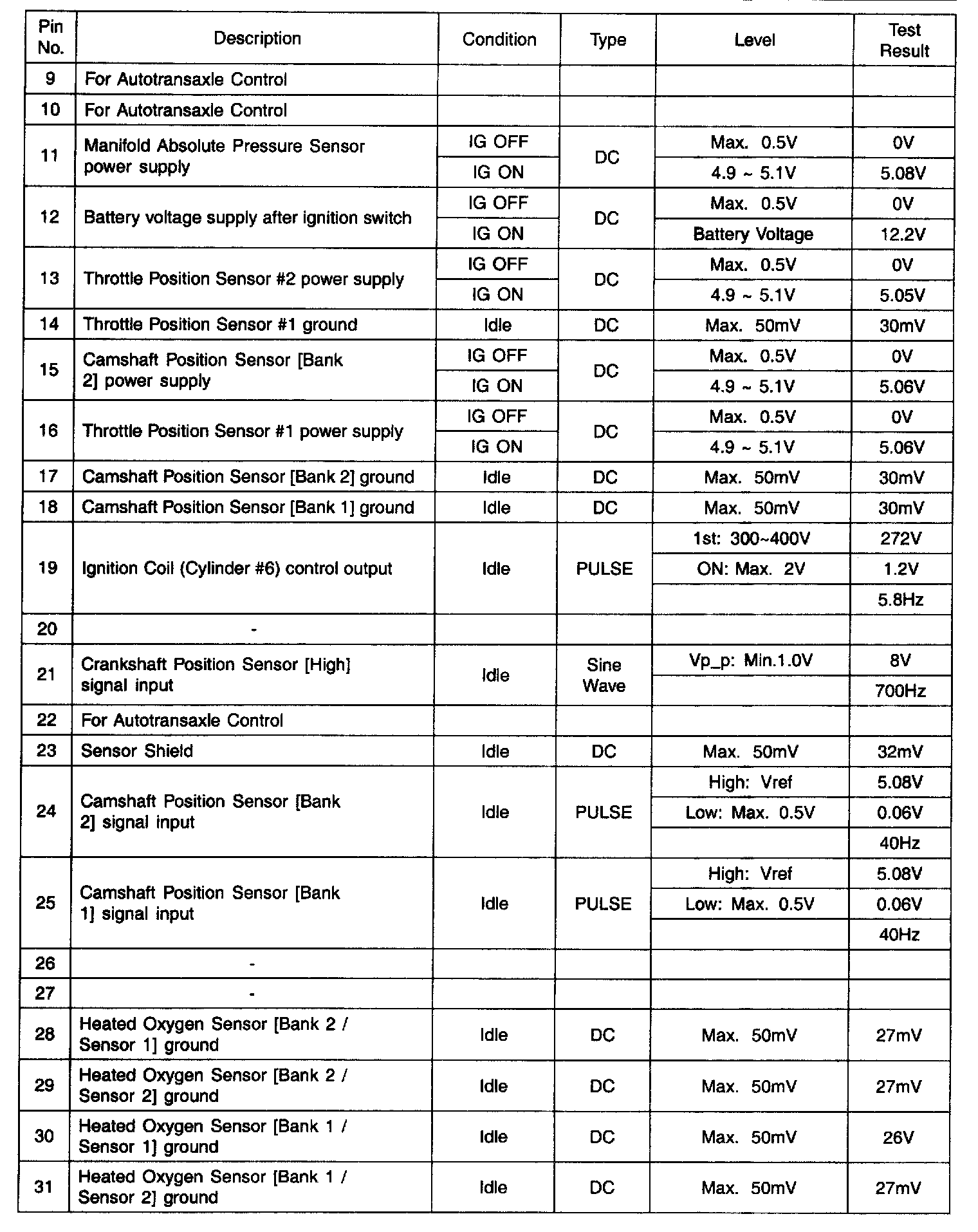

PCM Terminal Input/Output Signal - Connector (C01-2) Part 1:

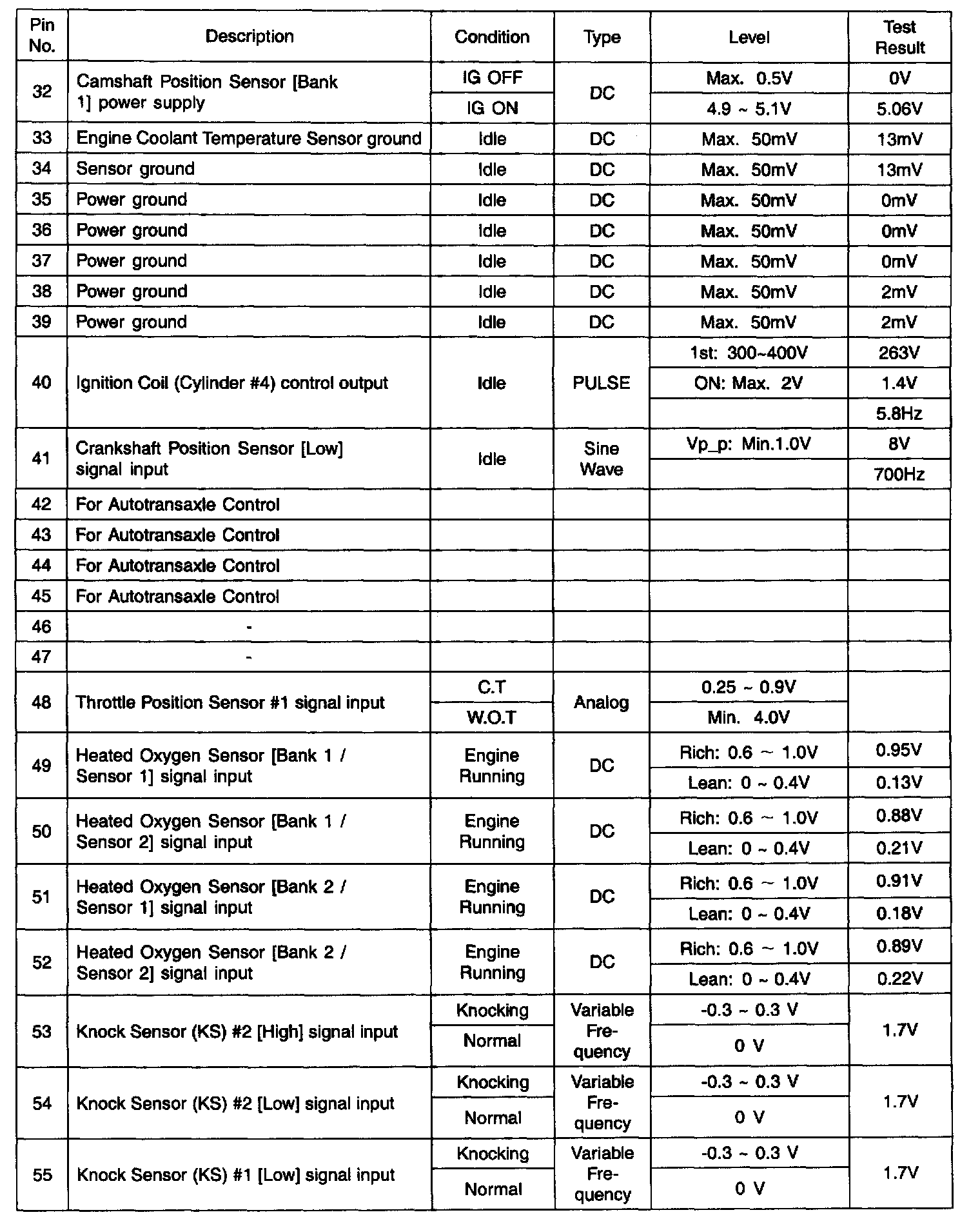

PCM Terminal Input/Output Signal - Connector (C01-2) Part 2:

PCM Terminal Input/Output Signal - Connector (C01-2) Part 3:

PCM Terminal Input/Output Signal - Connector (C01-2) Part 4:

PCM Terminal Input/Output Signal - Connector (C01-2) Part 5:

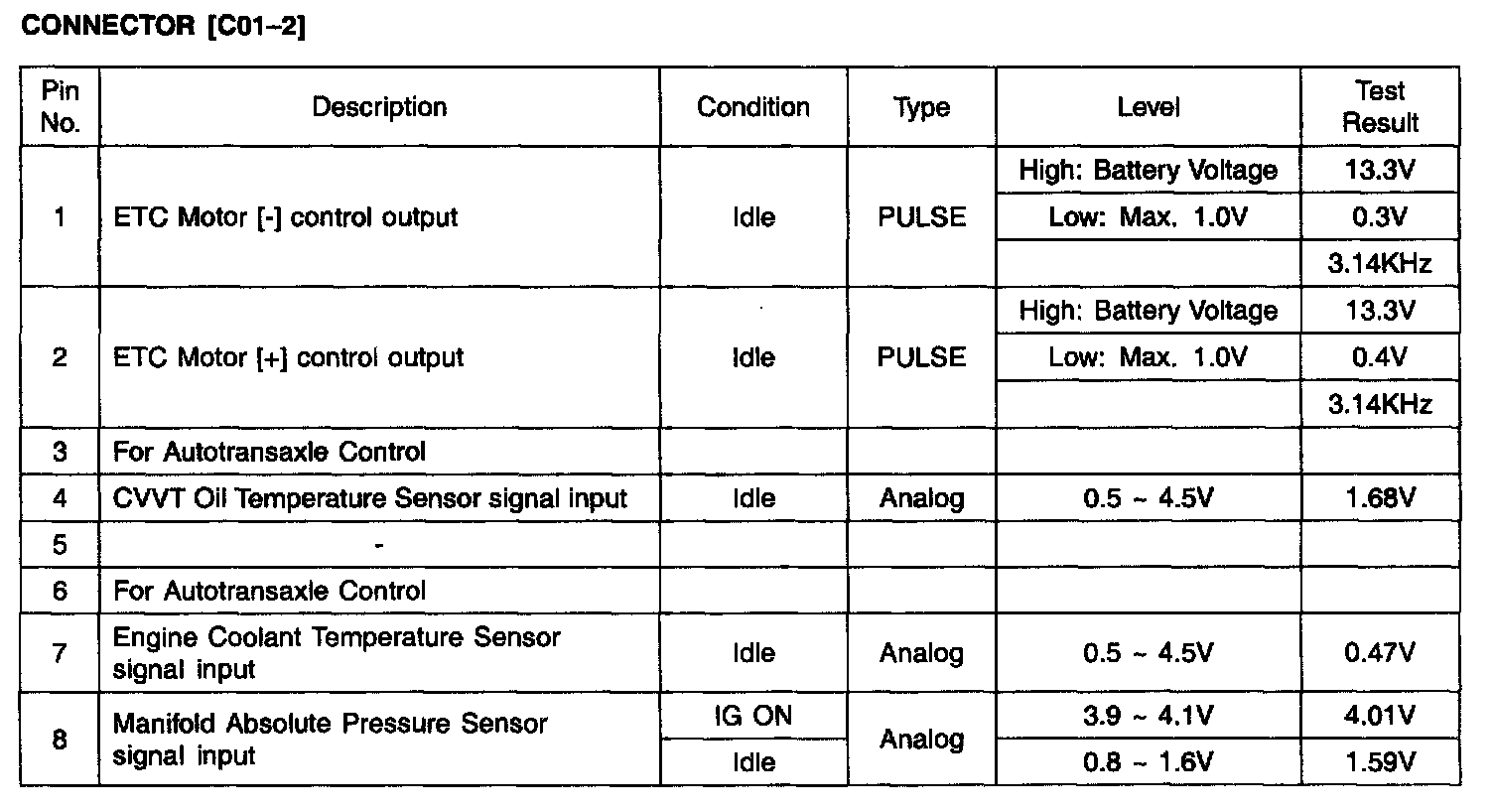

PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-2]
