System Specifications
Cylinder headFlatness of gasket surface Less than 0.05mm (0.0019in.) [Less than 0.02mm (0.0008in.) / 150x150]
Flatness of manifold mounting
Intake Less than 0.1m(0.0039in.) [Less than 0.03mm(0.001in/110x110]
Exhaust Less than 0.1mm (0.0039in) [Less than 0.03mm(0.001in)/110x110]

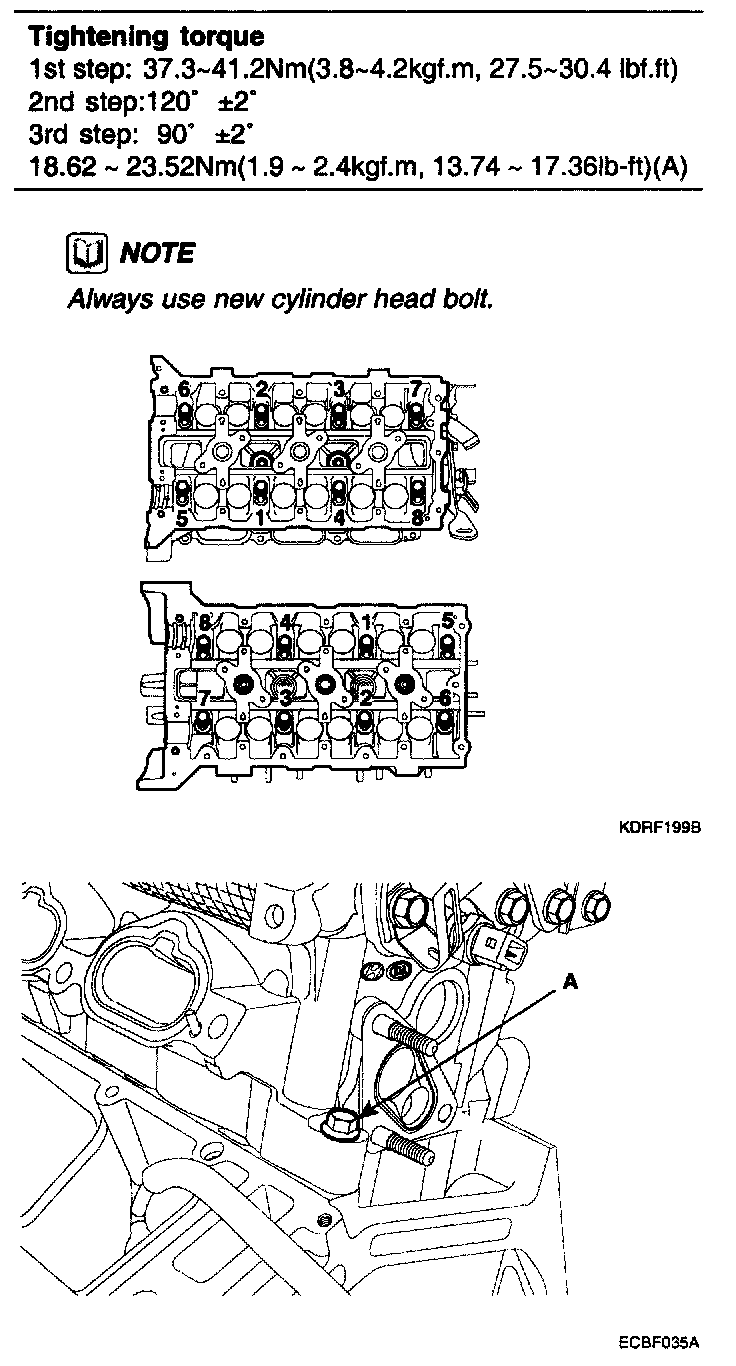

Intake Manifold
1st 3.9 - 5.9Nm (0.4 - 0.6kgf.m, 2.9 - 4.3lb-ft)
2nd 18.62 - 23.52Nm (1.9 - 2.4kgf.m, 13.74 - 17.36lb-ft)
3rd Repeat 2nd step twice or move
a - h: 1st step order
1 - 8: 2nd step order
Camshaft bearing cap bolt
CVVT & exhaust cam sprocket bolt 64.68 - 76.44 Nm (6.6 - 7.8 kgf.m, 47.74 - 56.42 lb-ft)
Exhaust manifold nut 39.20 - 44.10 Nm (4.0 - 4.5 kgf.m, 28.93 - 32.55 lb-ft)
