Overhaul

DISASSEMBLY

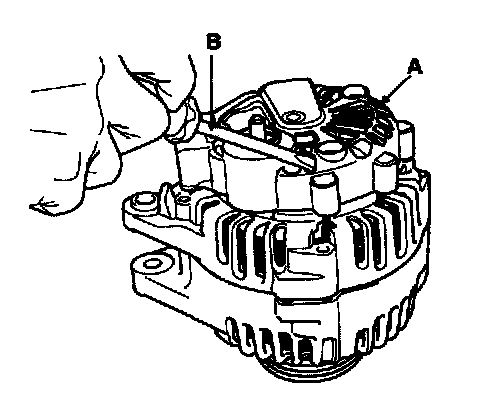

1. Remove the generator cover (A) using a screw driver (B).

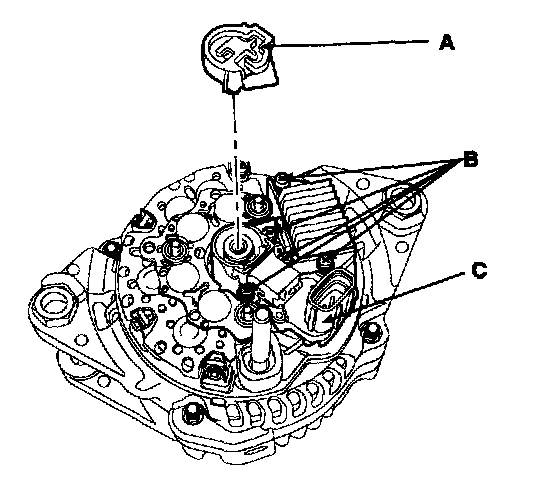

2. Remove the slip ring guide (A).




3. Loosen the mounting bolts (B) and disconnect the brush holder assembly (C).

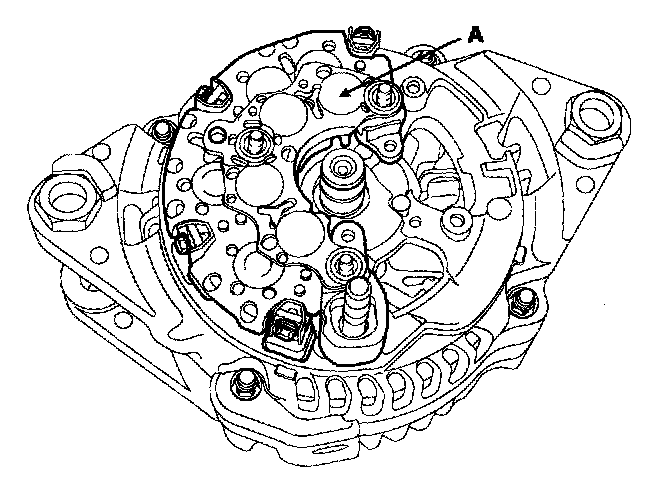

4. Remove the rectifier (A) with 4 screw.

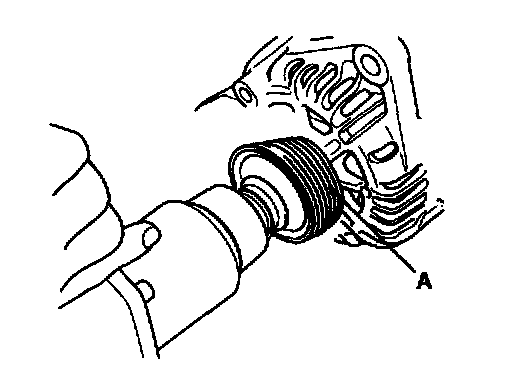

5. Remove the nut, pulley (A) and spacer.

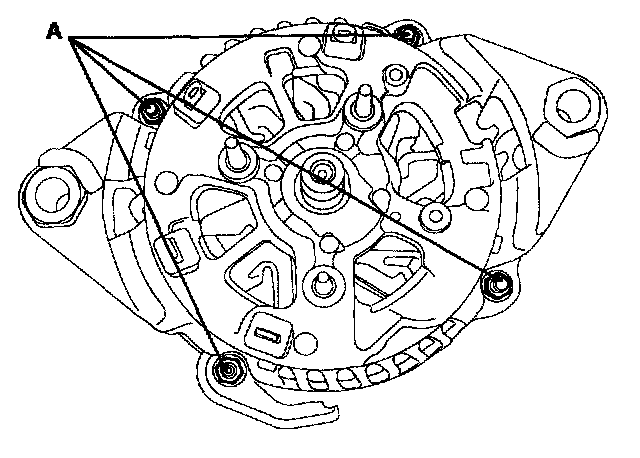

6. Loosen the 4 nuts (A).

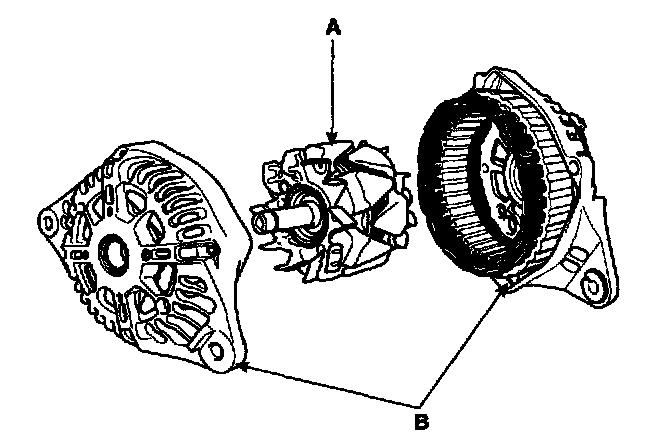

7. Disconnect the rotor (A) and cover (B)
8. Reassembly is the reverse order of disassembly.
