Rear Window Defogger Switch

REAR WINDOW DEFOGGER SWITCH
1. Disconnect the negative (-) battery terminal.

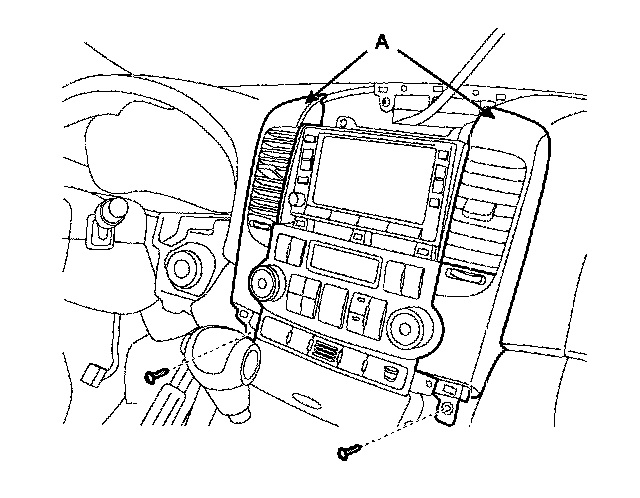

2. Remove the center facia panel, console lower cover and center air vent (A) after loosening screws. Take care not to damage fixing clips.

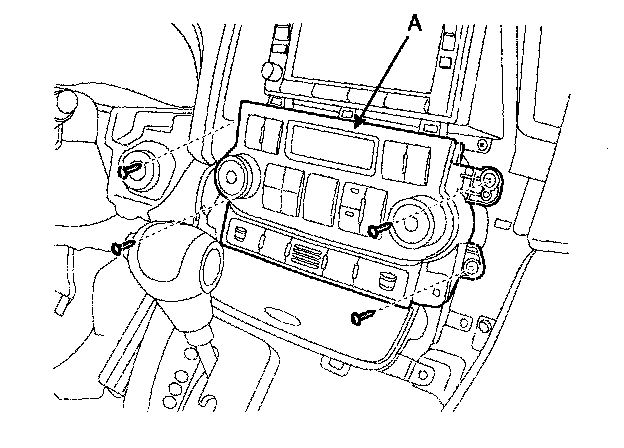

3. Remove the center facia panel switch and air control panel (A) after loosening screws.

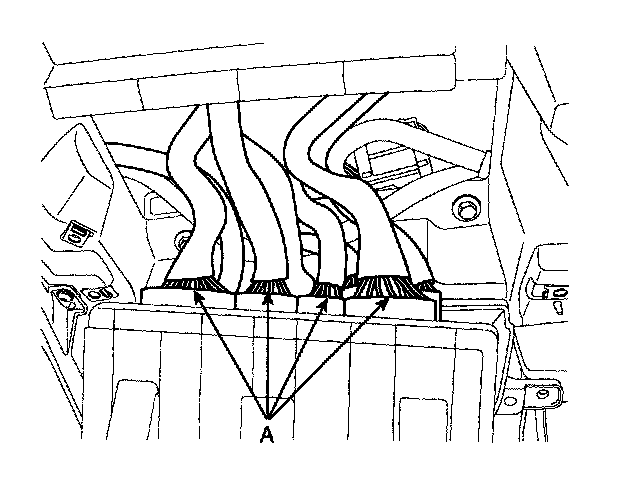

4. Disconnect the air control panel connector (A).
5. Installation is the reverse of removal.
