FRONT WIPER MOTOR

REMOVAL

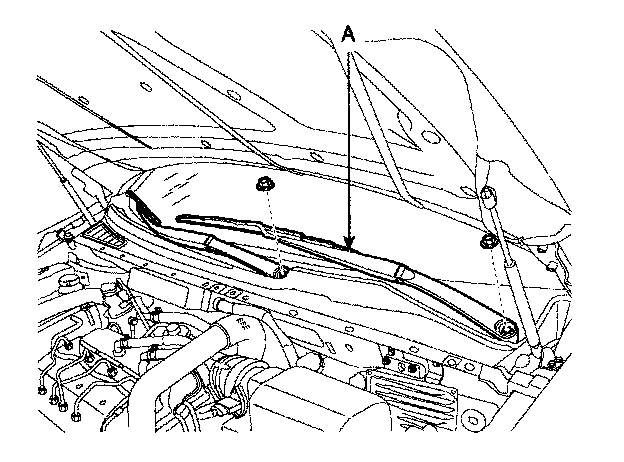

1. Remove the windshield wiper arm and blade after removing the mounting nut (A).

TORQUE: 28-32 N.m (2.8-3.2 kgf.m, 20-23.1 lbf.ft)

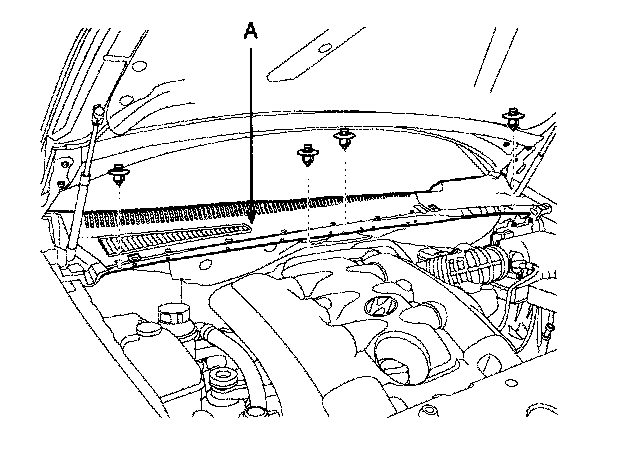

2. Remove the weather strip and the cowl top cover (A) after removing 4 fasteners.

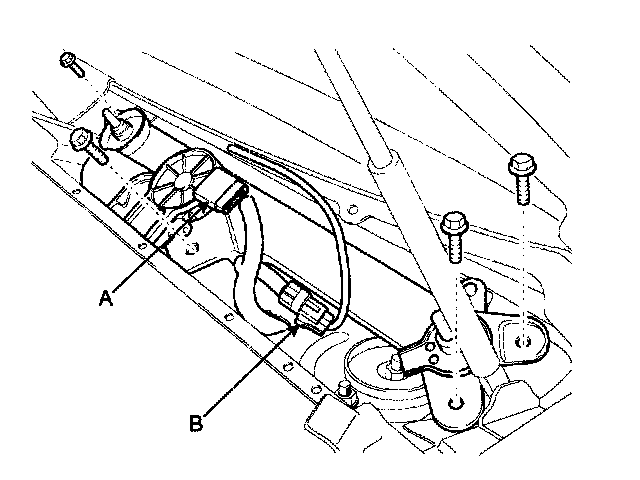

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Torque: 7-11 Nm (0.7-1.1 , kgf.m, 5.0-7.9 lbf.ft)

4. Installation is the reverse of removal.

INSTALLATION




1. Install the wiper arm and blade to the specified position.

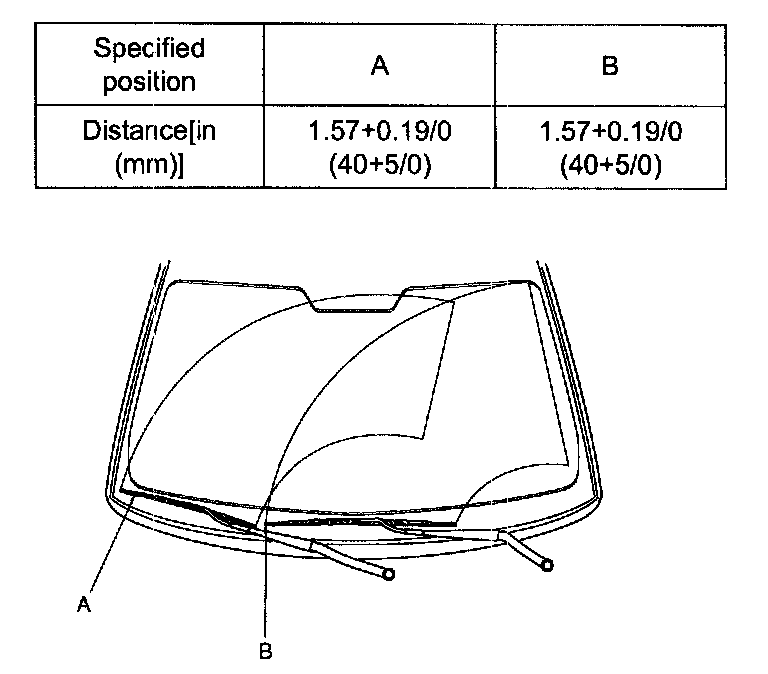

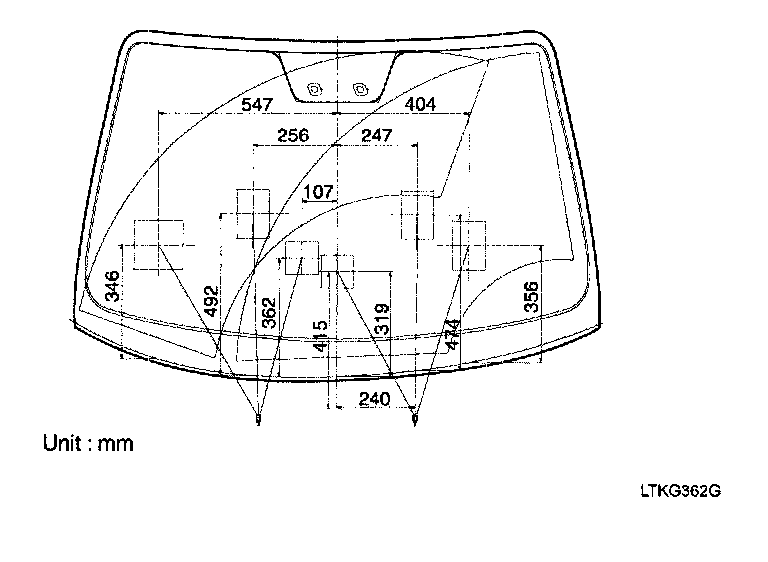

2. Set the washer nozzle on the specified spray position.
