Front Wiper Motor

FRONT WIPER MOTOR

INSPECTION

SPEED OPERATION CHECK

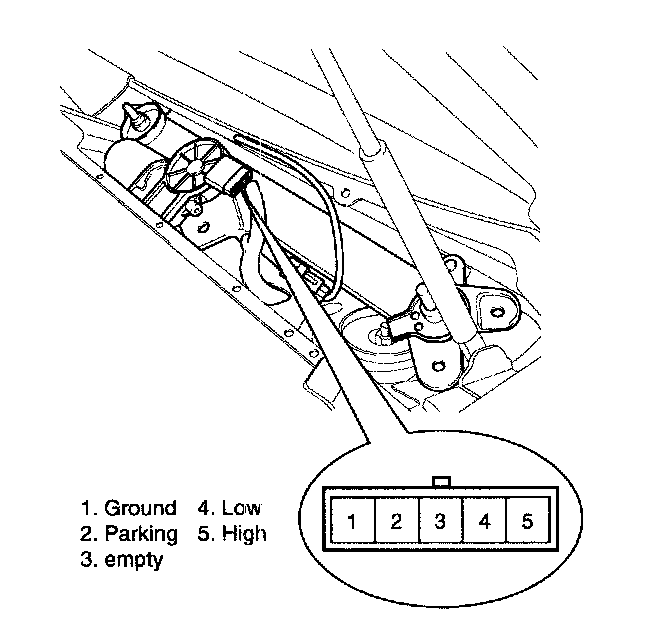

1. Remove the connector from the wiper motor.
2. Attach the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1.
3. Check that the motor operates at low speed.
4. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 1.




5. Check that the motor operates at high speed.
