Entertainment Systems: Service and Repair

RSE TRIMPLATE UNIT

REMOVAL
1. Disconnect the negative(-) battery terminal.
2. Remove the console rear cover.
3. Disconnect the connectors.

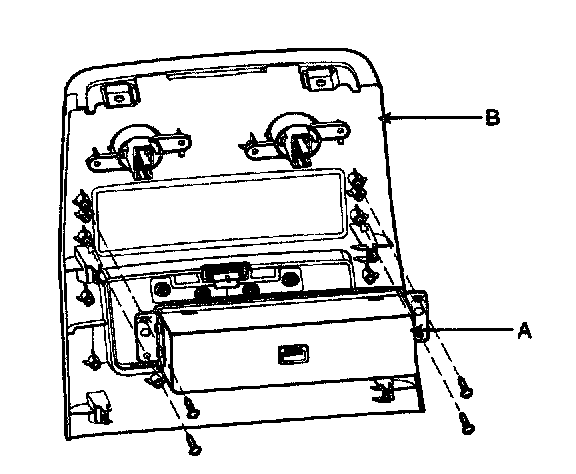

4. Remove the RSE Trimplate unit (A) from the console rear cover (B) after loosening the screws (4EA).

INSTALLATION
1. Assemble the RSE Trimplate unit to the console rear cover.
2. Connect the unit connectors after tightening the screws (4EA).
3. Install the console rear cover.
