BCM Input/Output Specification

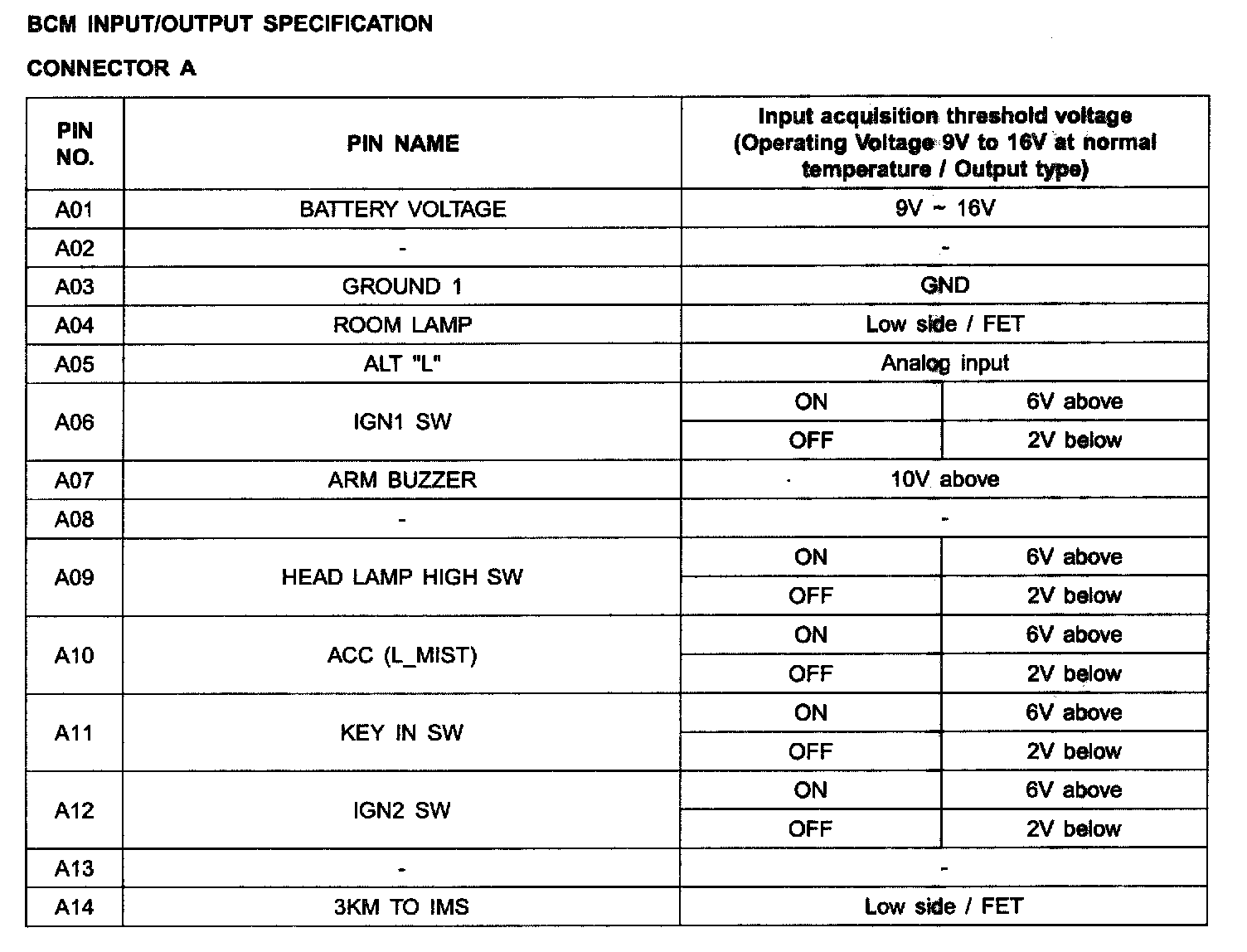

BCM Input/output Specification - Connector A:

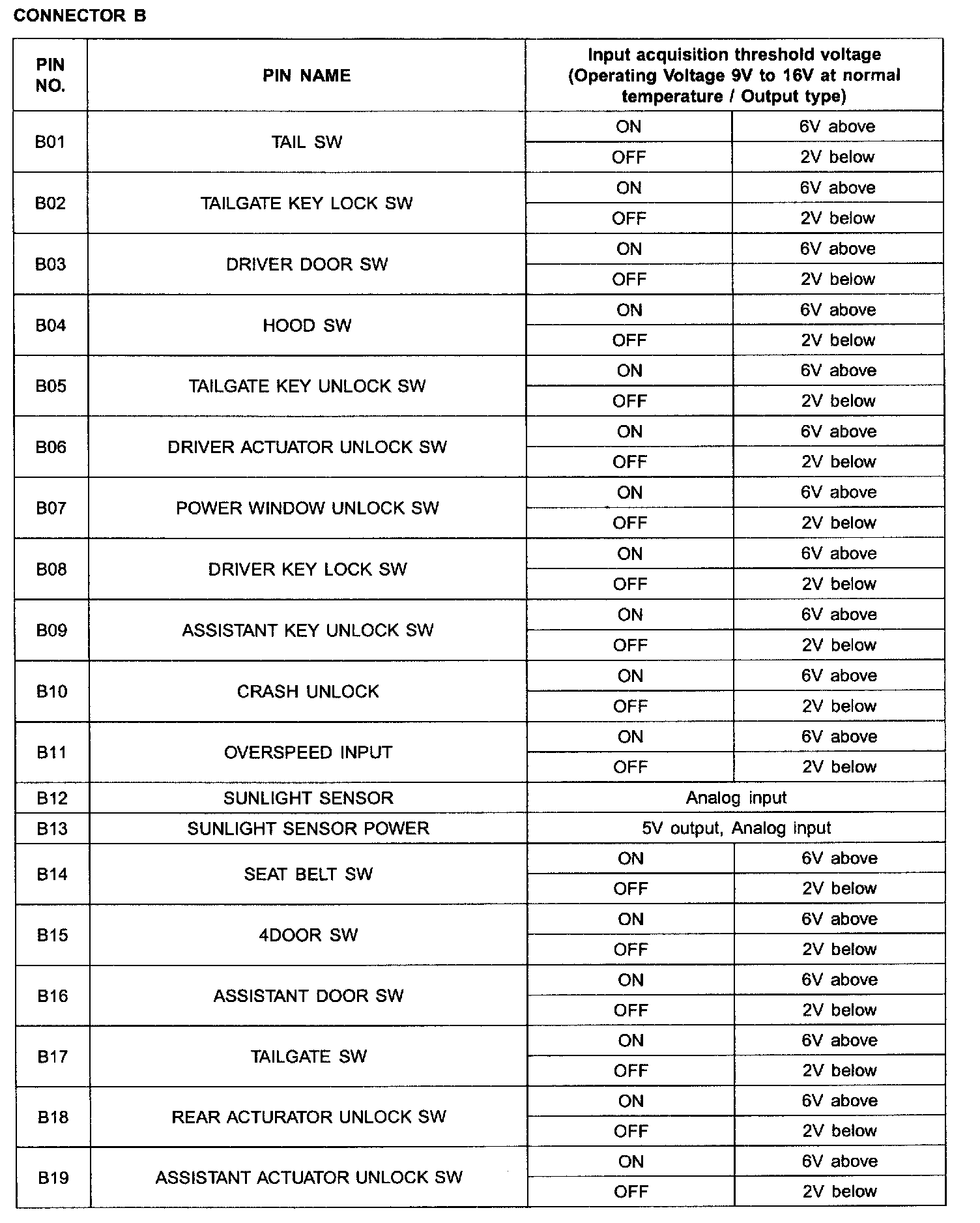

BCM Input/output Specification - Connector B (Part 1):

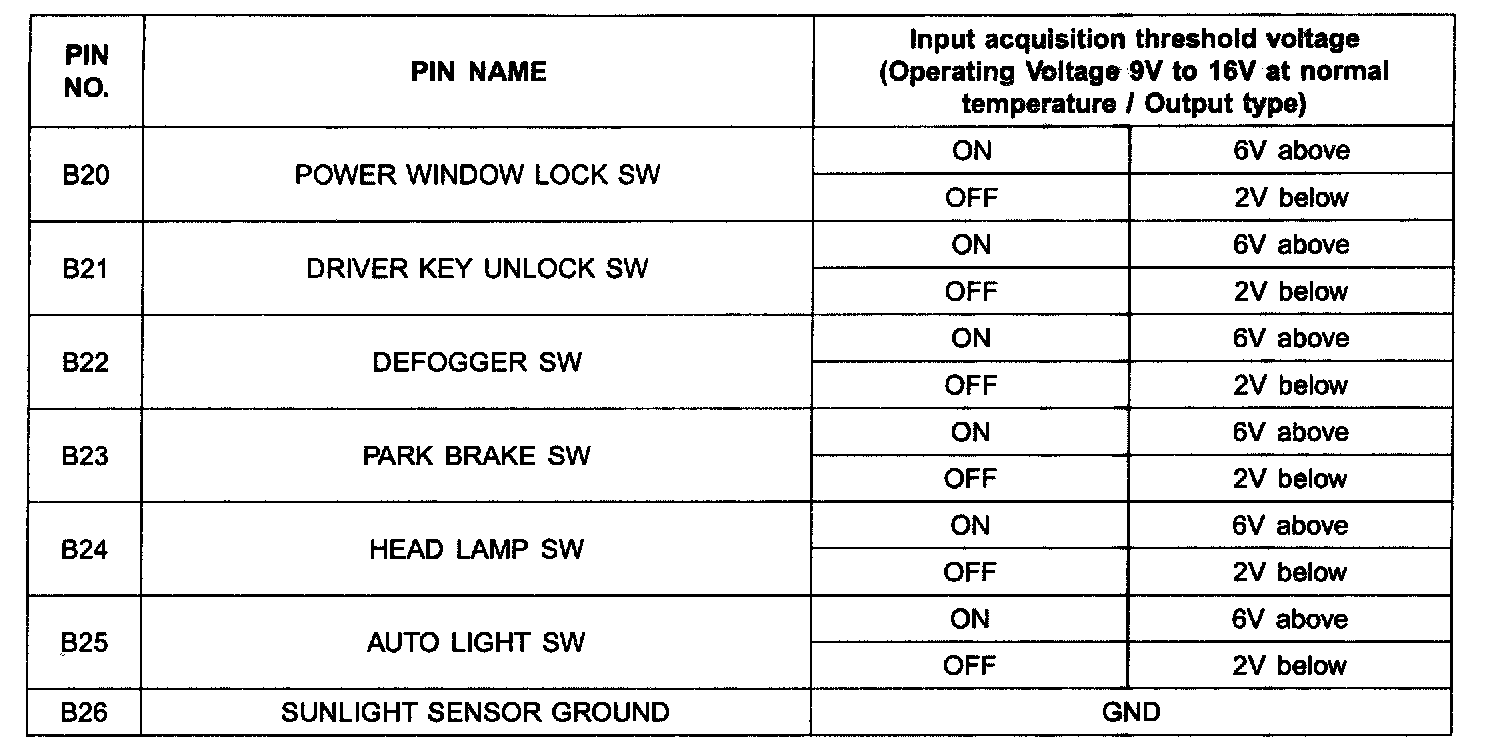

BCM Input/output Specification - Connector B (Part 2):



BCM Input/output Specification - Connector C:

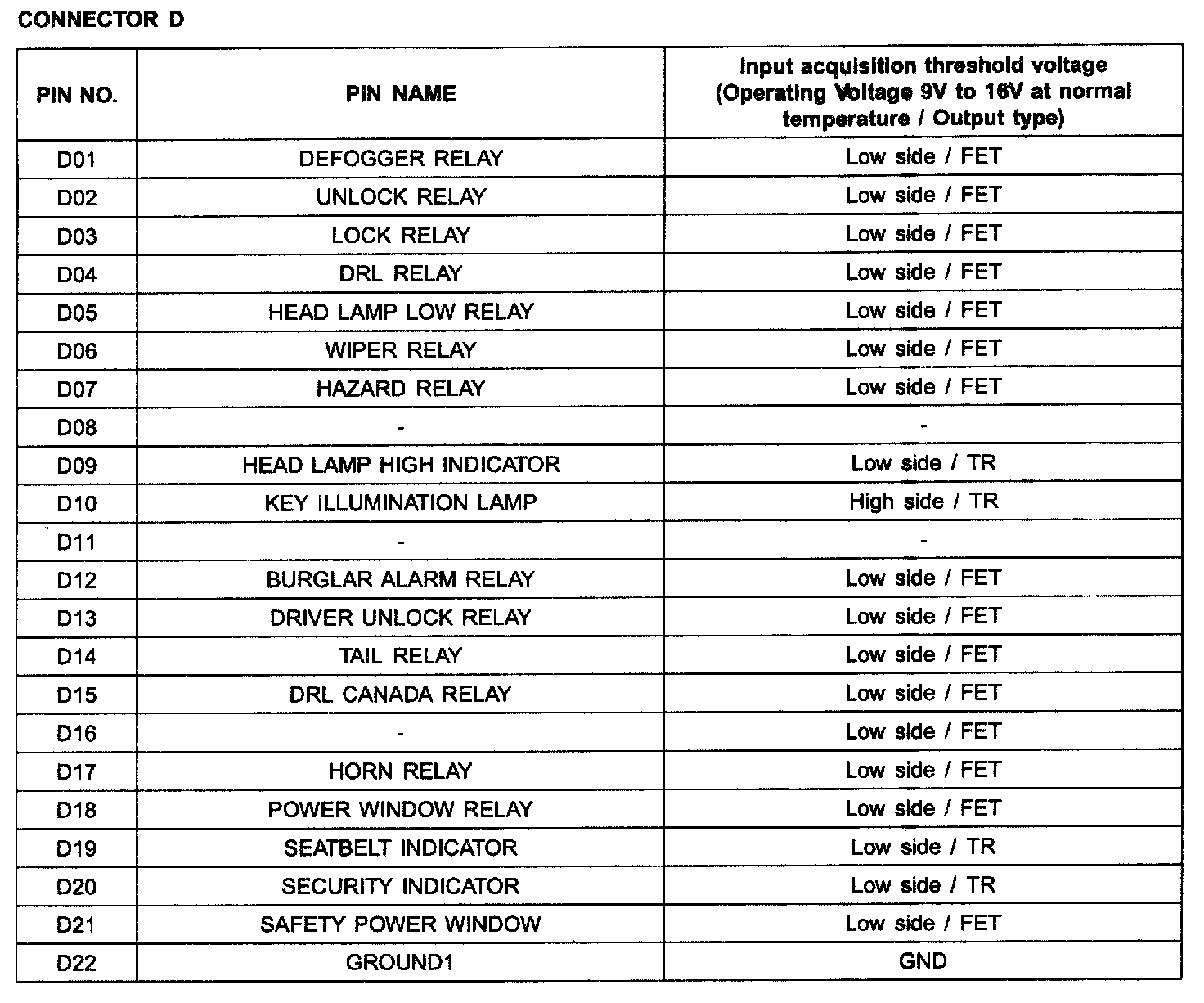

BCM Input/output Specification - Connector D:
