Power Door Lock Relay: Locations

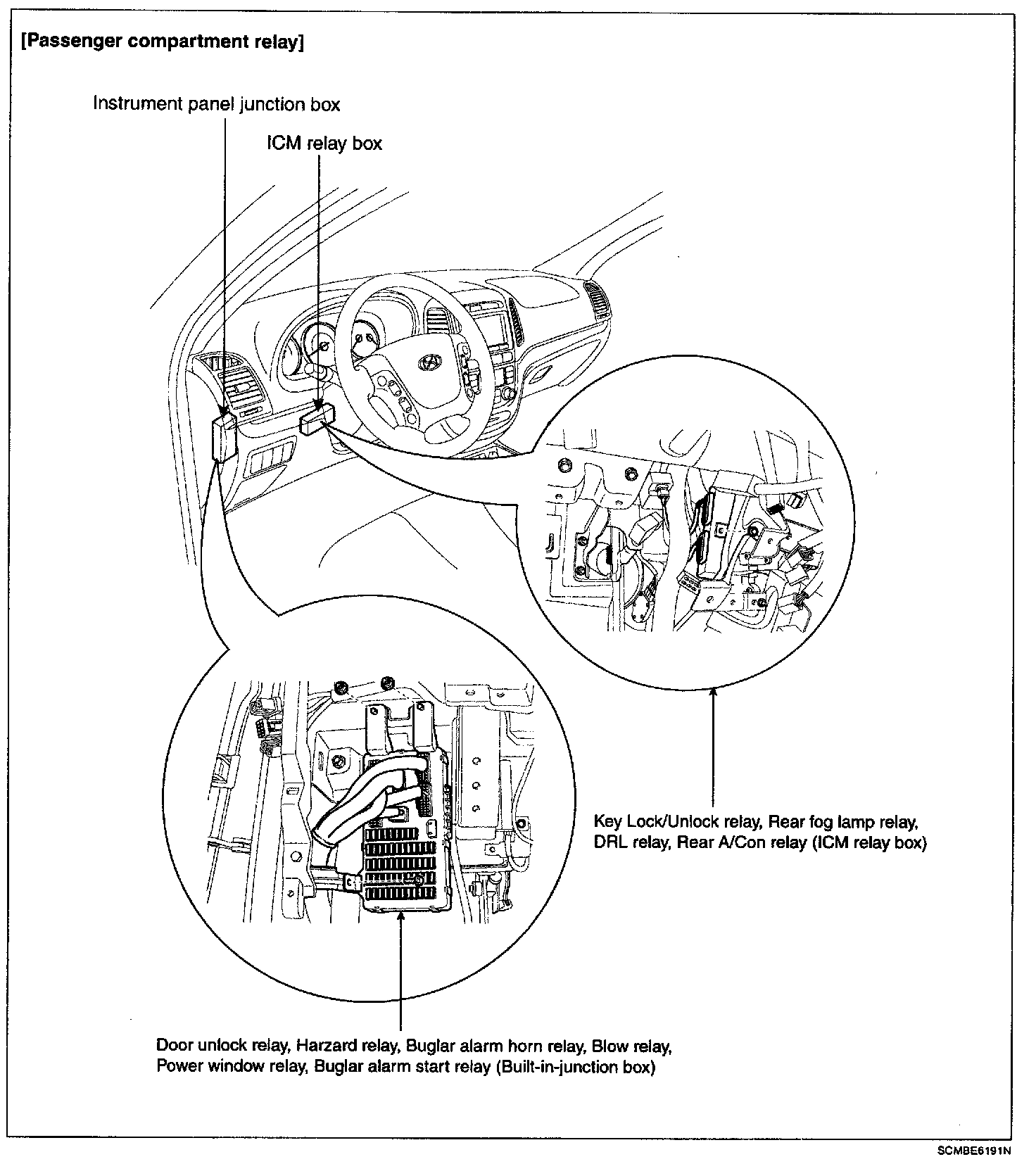

Fuses And Relays (Passenger Compartment Relay) - Component Location:
