Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the like cause of the problem. Check each part in order. If necessary, replace these parts

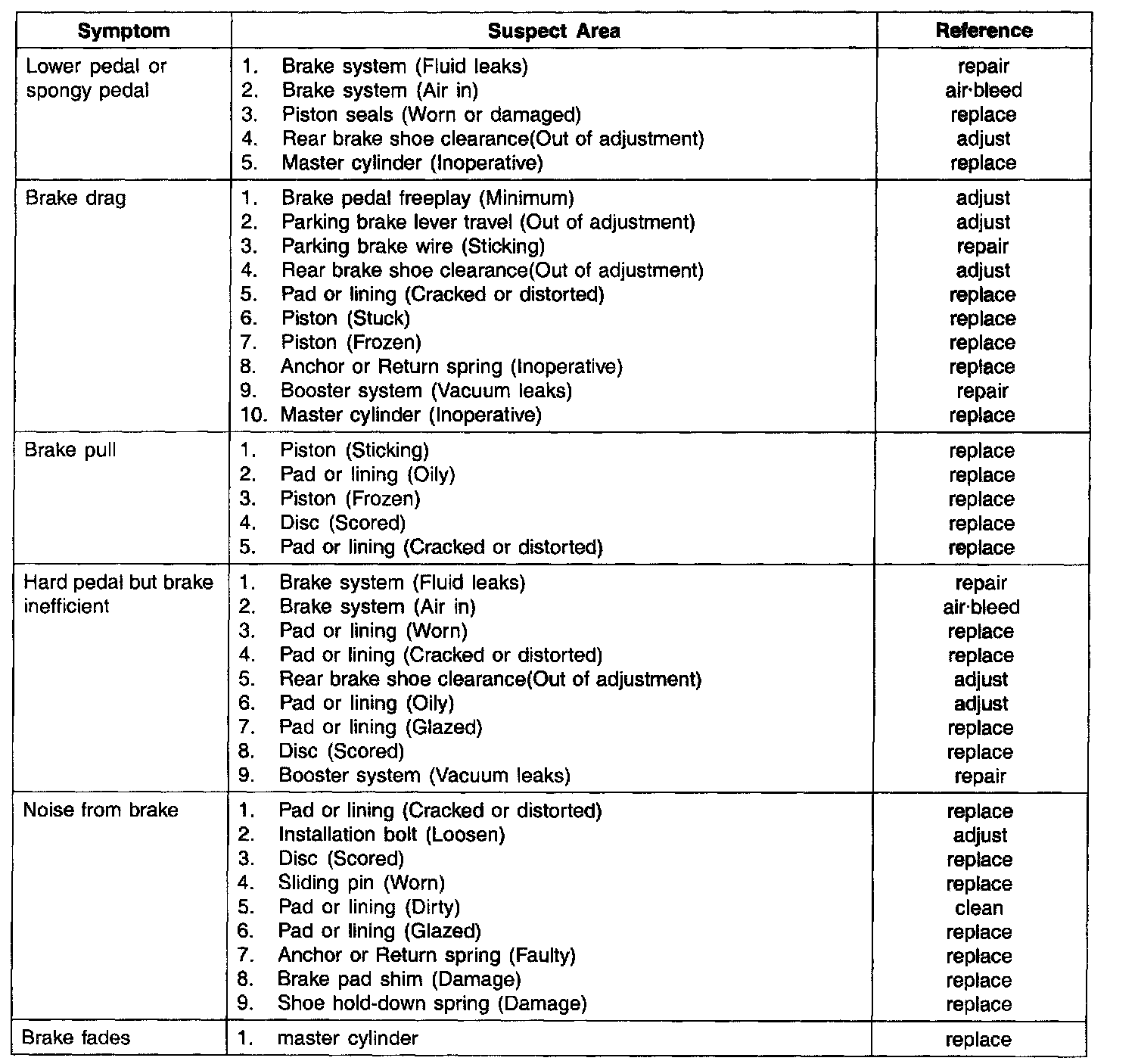

PROBLEM SYMPTOMS TABLE (part 1):

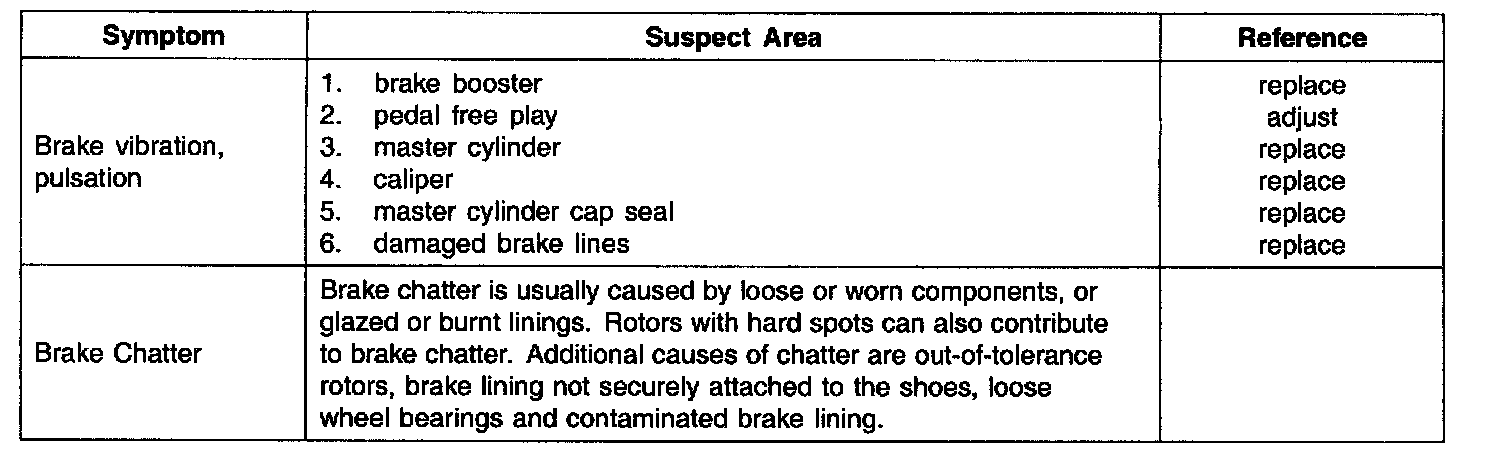

PROBLEM SYMPTOMS TABLE (part 2):
