Fuel Filter: Locations

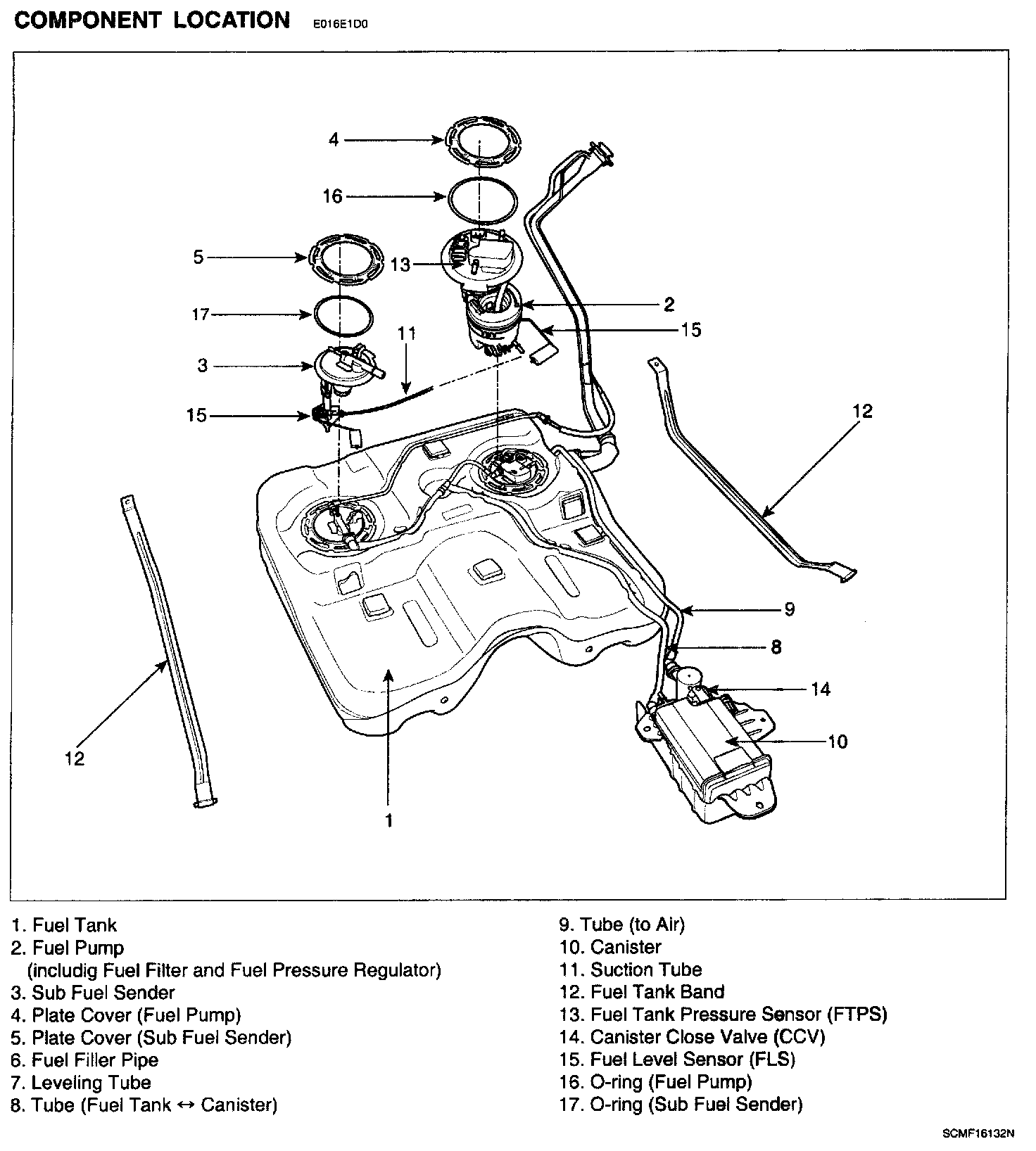

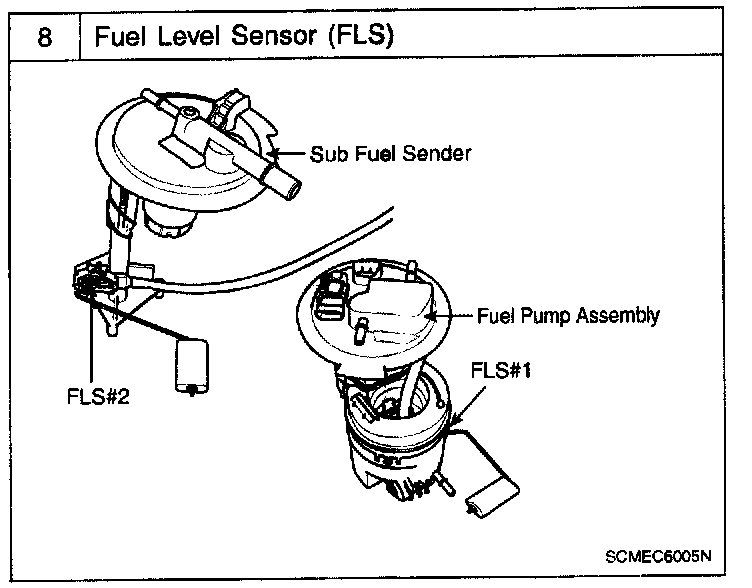

Fuel Delivery System - Component Location:

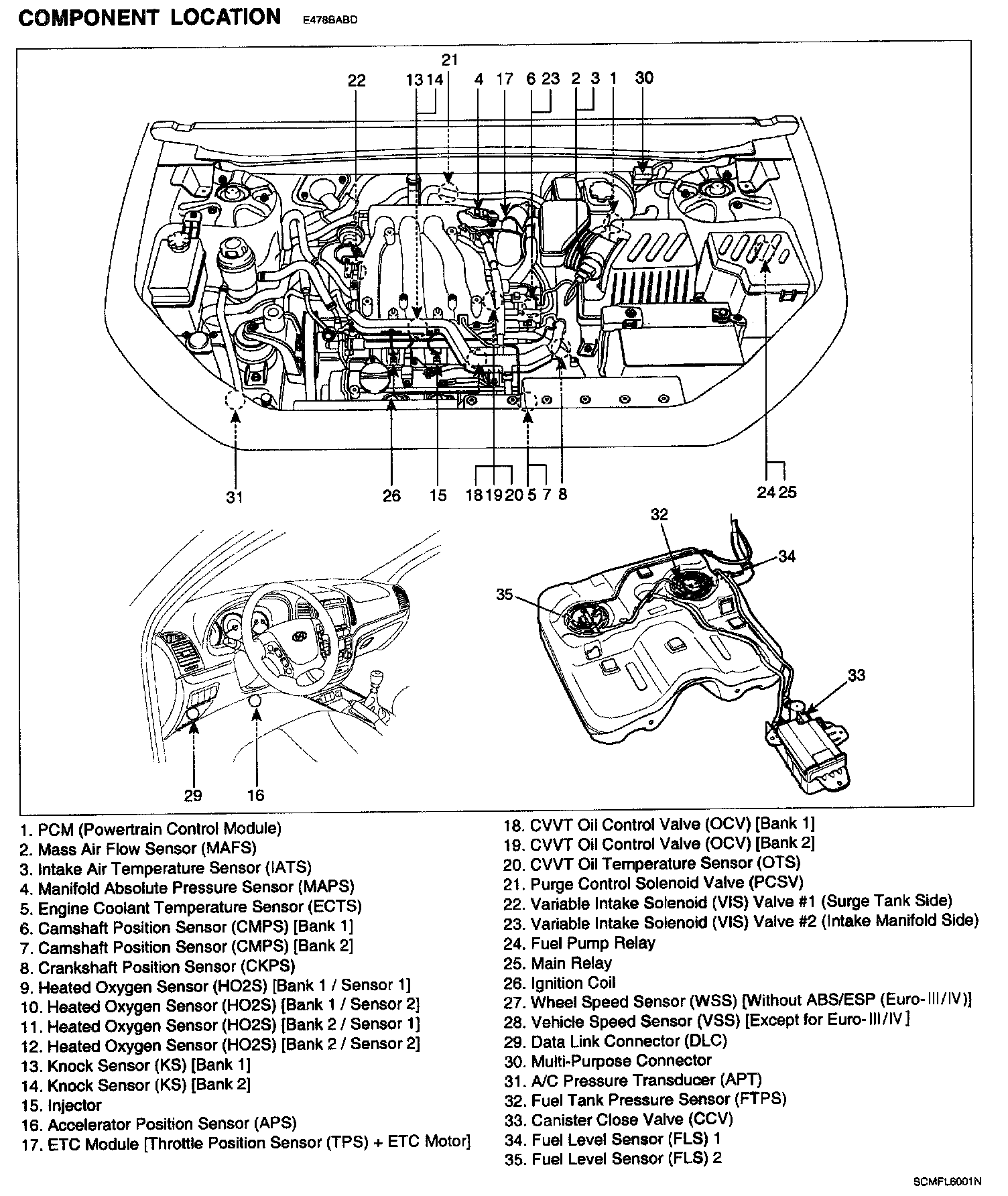

Gasoline Engine Control System - Component Location:

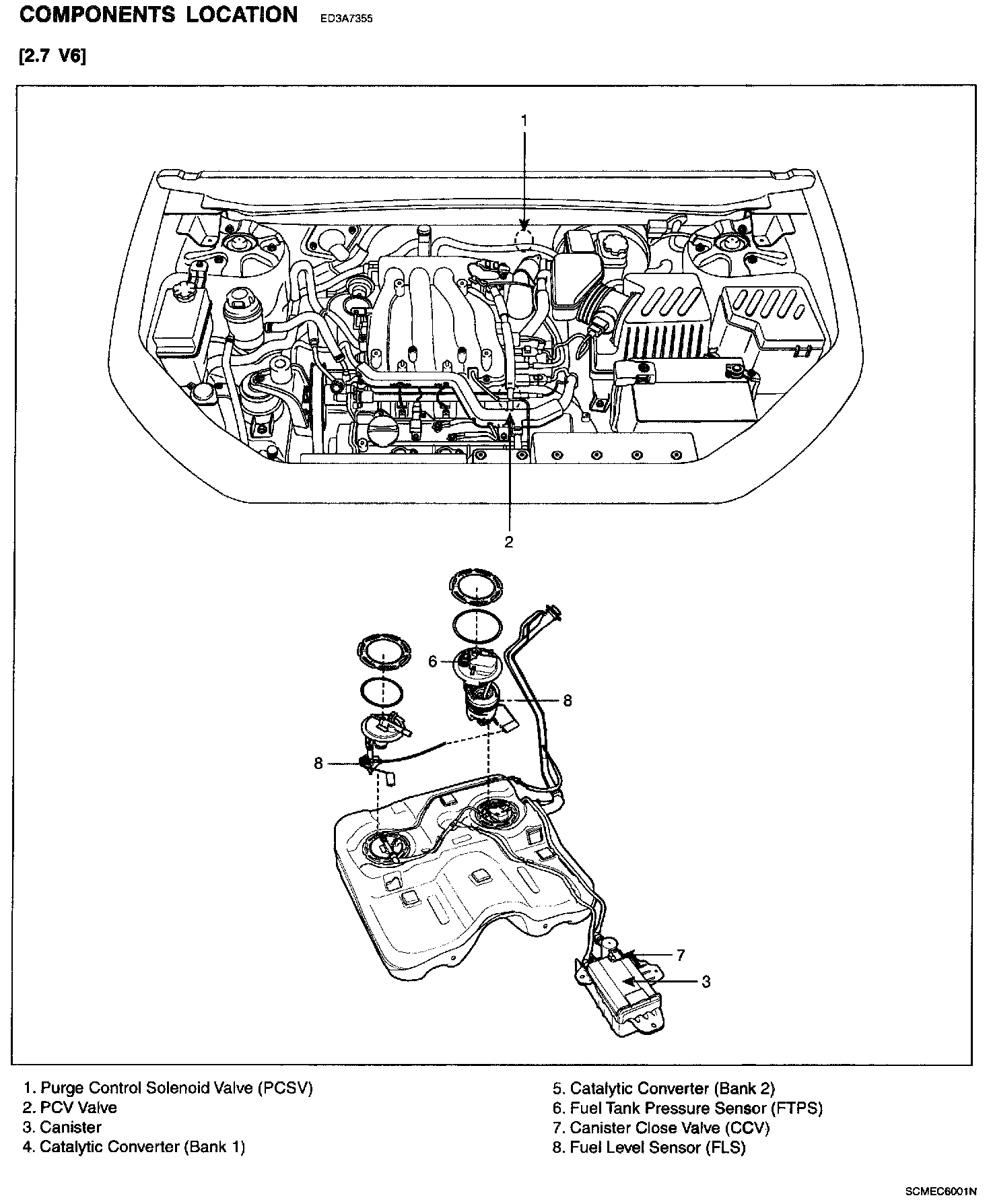

Emission Control System - Components Location:
