Oil Temperature Sensor For ECM: Description and Operation

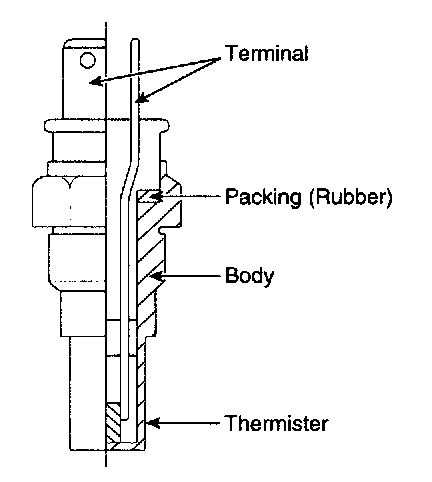

CVVT OIL TEMPERATURE SENSOR (OTS)

FUNCTION AND OPERATION PRINCIPLE
The CVVT Oil Temperature Sensor (OTS) is a negative coefficient thermistor used by the PCM it measure engine oil temperature for the purpose of adjusting CVVT calculations.
